Stahlwille 98830193 Workshop trolley
EAN:
Part number:
Item no:
Highlights & Details

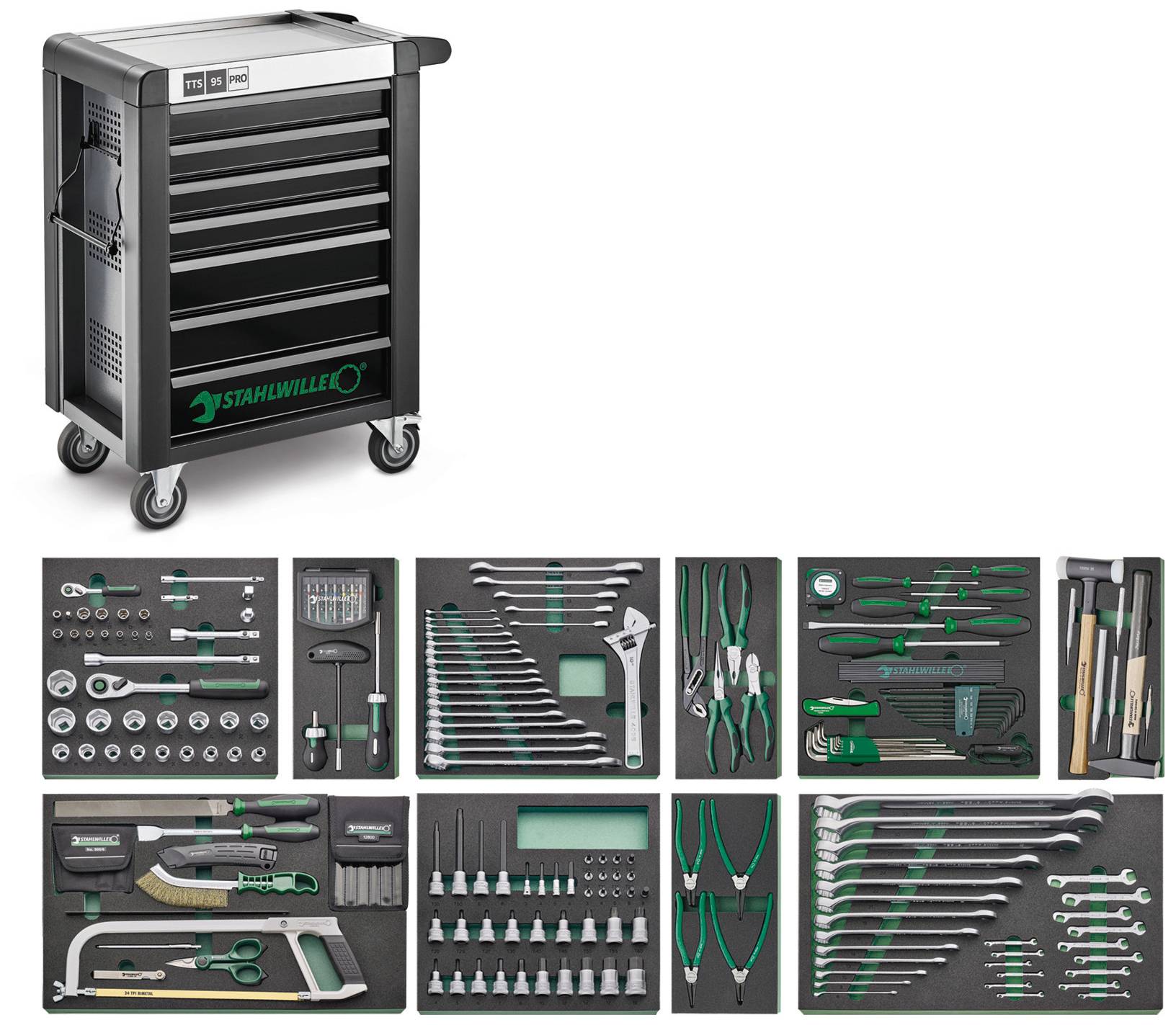

Stahlwille premium Toolkit 250 piece TTS 95 PRO anthracite workshop trolley | 7 drawers
- Contains 1/4" and 1/2" socket wrenches (5-32 mm), QR ratchet + QR extensions, bit ratchet and bits, ring spanner, screwdriver, various pliers and many other tools
- Ratchet with 80 teeth enable a working angle of just 4.5° – for efficient working even in narrow spaces
- Unique QR locking system - keeps every component safe from ratchet to extension socket wrench to socket wrench insert
- Tool control system (TCS): All tools are clearly stored in TCS mats. Here, the green catches the eye immediately as soon as a tool is missing
- 7 easily removable drawers (black RAL 9005) with full extension and ball-cage guide
- Sealed welded hard-wearing working and shelf space as well as stainless steel end cover
- Three-stage safety concept:
- 1. Central locking by lateral cylinder lock with foldable key
- 2. Individual locking prevents accidental opening while driving
- 3. Tilt protection - not possible to pull out several drawers at the same time.
- Oil and acid-resistant, ball-bearing light wheels (D.125 mm rolls) with thread protection to protect the bearings from dirt and threads, with two parking brakes
- Stainless steel handle with strengthened body connection and circumferential impact protection with impact damping
- Paper roll and spray can holder included
Technical specifications
- Product type
Workshop trolley
- Load capacity (max.)
750 kg
- Dim
(L x W x H) 823 x 497 x 1021 mm
- No. of drawers
7
- Weight
111 kg
- Content
1 pc(s)
- Width
497 mm
- Height
1021 mm
- Length
823 mm
- Features
Incl. 250-pcs tool set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123280 Stahlwille 98830193 Workshop trolley
Description
The extensive tool set (250-part) forms a rock-solid and high-quality basis equipment or Original equipment for industry, trade, automotive or even the home garage.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the robust workshop trolley with matching, high-quality TCS mats for a safe and orderly storage of the tools.
The TTS95 PRO is the high-quality all-rounder and offers various highlights such as a drawer full extension, a three-stage safety concept and circulating impact protection with impact damping. The tightly welded stainless steel pan and the paper roll and spray can holder, which are included in the standard delivery package, are particularly practical. The model is available in three colors and three drawer configurations and has a static load capacity of 750 kg.
This text is machine translated.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the robust workshop trolley with matching, high-quality TCS mats for a safe and orderly storage of the tools.
The TTS95 PRO is the high-quality all-rounder and offers various highlights such as a drawer full extension, a three-stage safety concept and circulating impact protection with impact damping. The tightly welded stainless steel pan and the paper roll and spray can holder, which are included in the standard delivery package, are particularly practical. The model is available in three colors and three drawer configurations and has a static load capacity of 750 kg.
This text is machine translated.
Scope of delivery

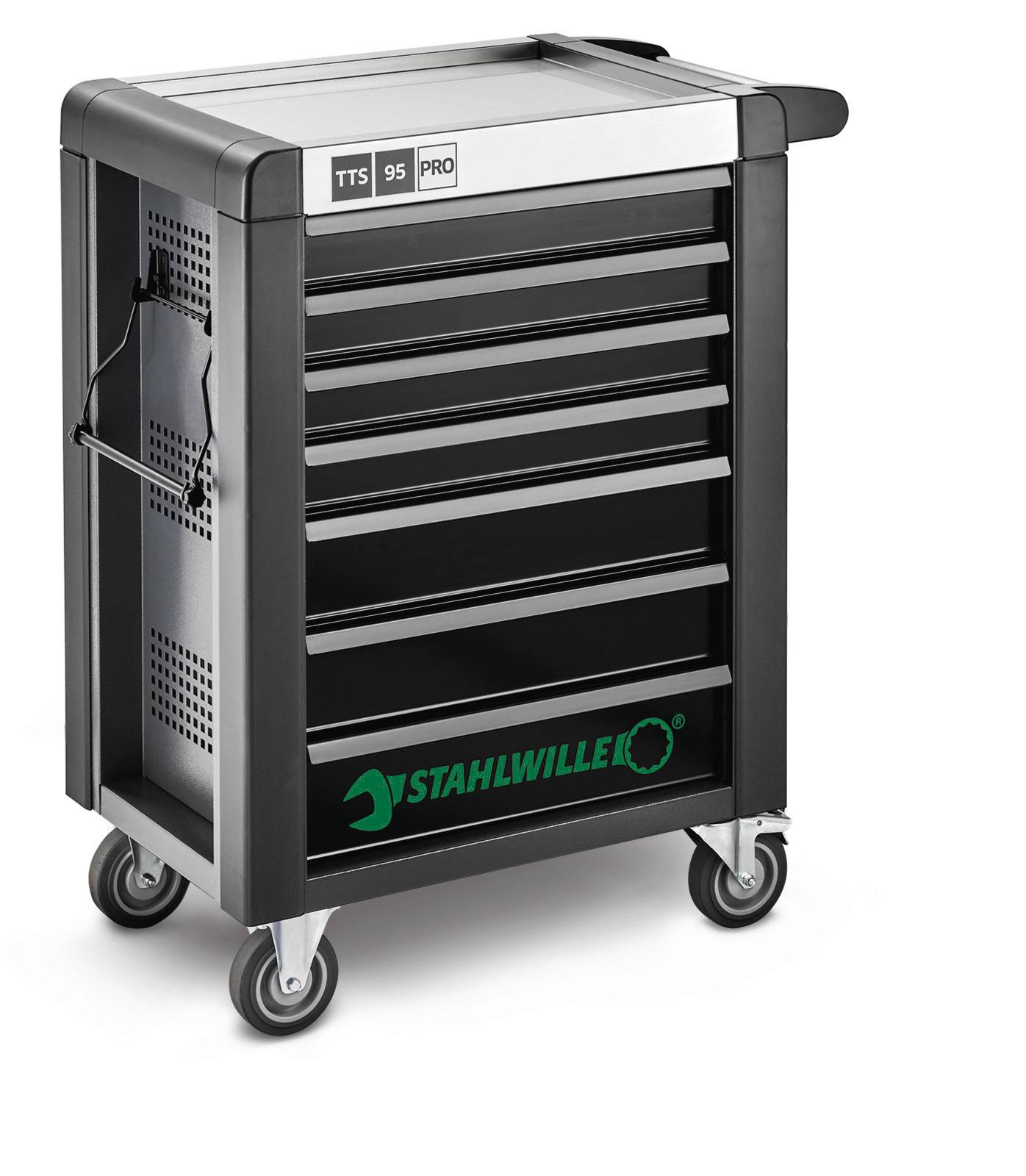

- 1 workshop trolley 95/7 a PRO anthracite
- 1 Paper roll holder
- 1 spray can holder

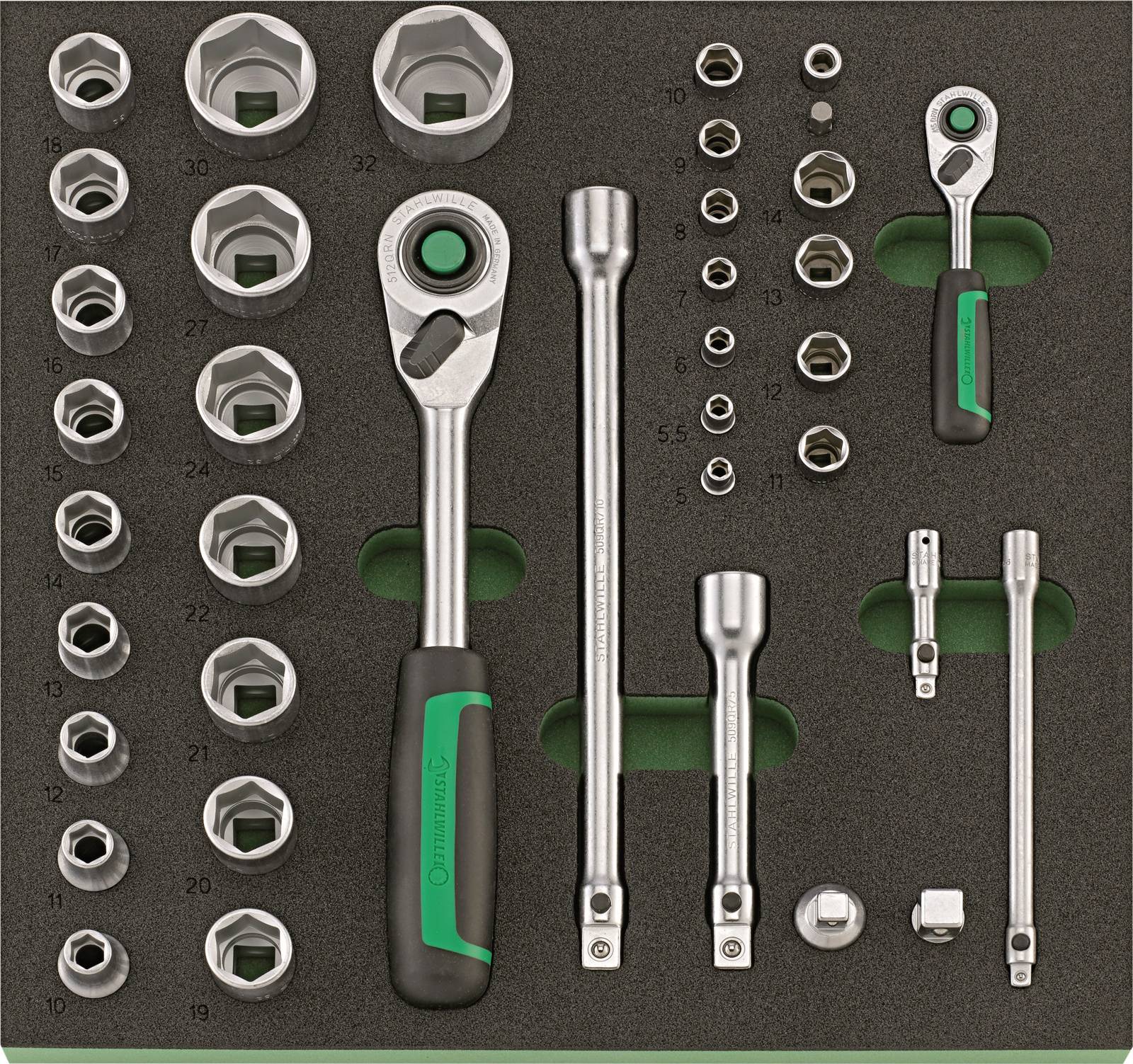

- 11 socket wrench inserts with hexagonal 1/4" No. 40: 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
- 17 socket wrench inserts with hexagonal 1/2" No. 52: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
- 2 extensions, 1/4" No. 405QR: 54, 150 mm
- 1 QuickRelease ratchet No. 415QR N: 1/4"
- 1 Bit connection part No. 3116
- 2 extensions, 1/2" No. 509QR: 130, 255 mm
- 1 QuickRelease ratchet No. 512QR N: 1/2"
- 1 transition part No. 410: 1/4 to 1/2"
- 1 transition part No. 513: 1/2 to 3/8"
- 1 Bit holder Nr. 412: 1/4"

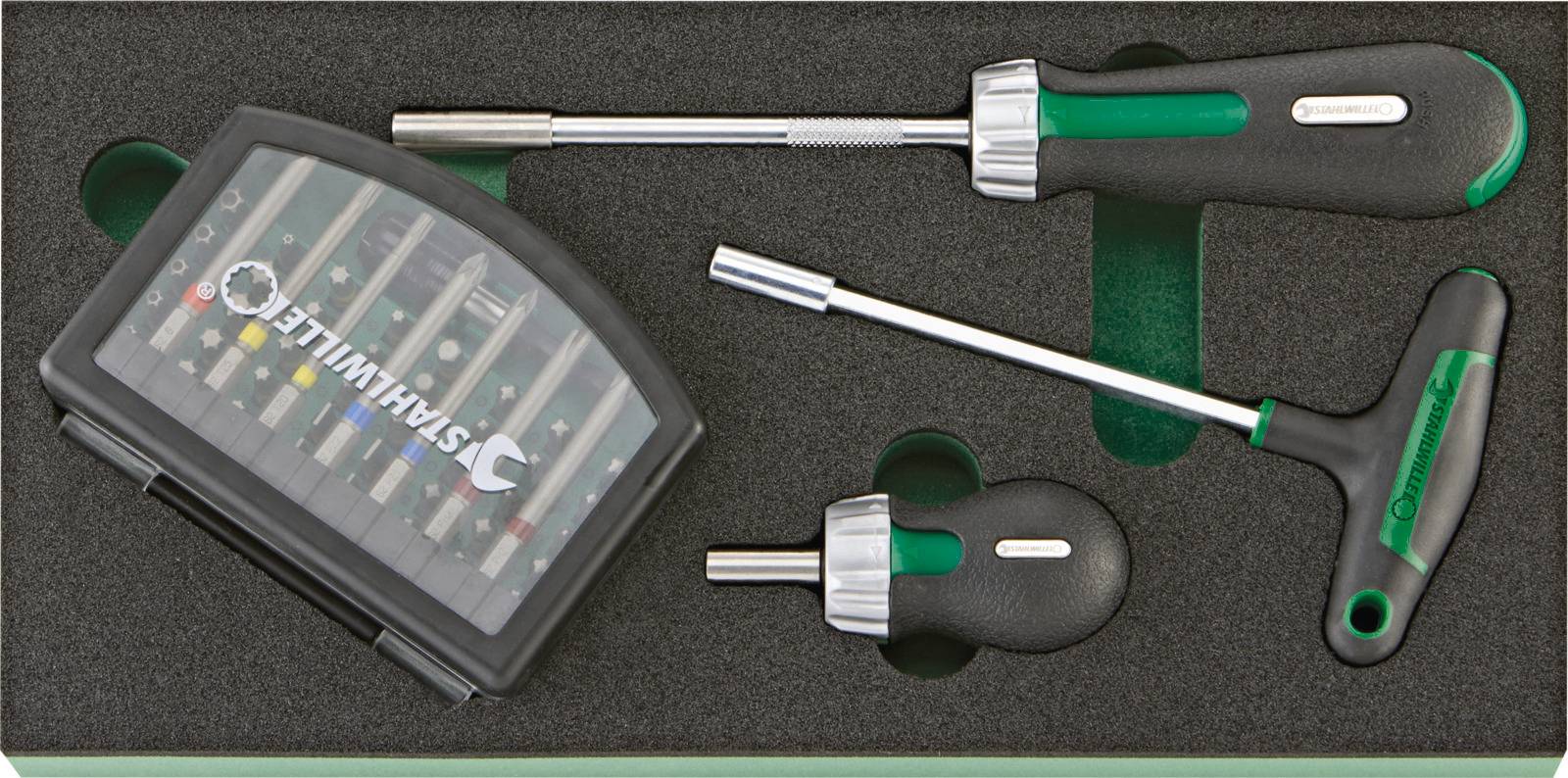

- 2 Bit ratchet No. 4008: 1/4"
- 1 Bit holder Nr. 4007: 1/4"
- 1 Bit Set No. 1206: 1 Bit holder | L. 25 mm: SL4.5,6 mm (2x) | PH1.2,3 (3x) | PZ1.2,3 (3x) | T10.15.20.20.25.27.30.40 (2x) | T BO10.15.20.25.27.30.40 | INHEX 3,4,5 mm | L. 75 mm: SL6 mm | PH2.3 | PZ1.2 | T20.25 | 56-parts

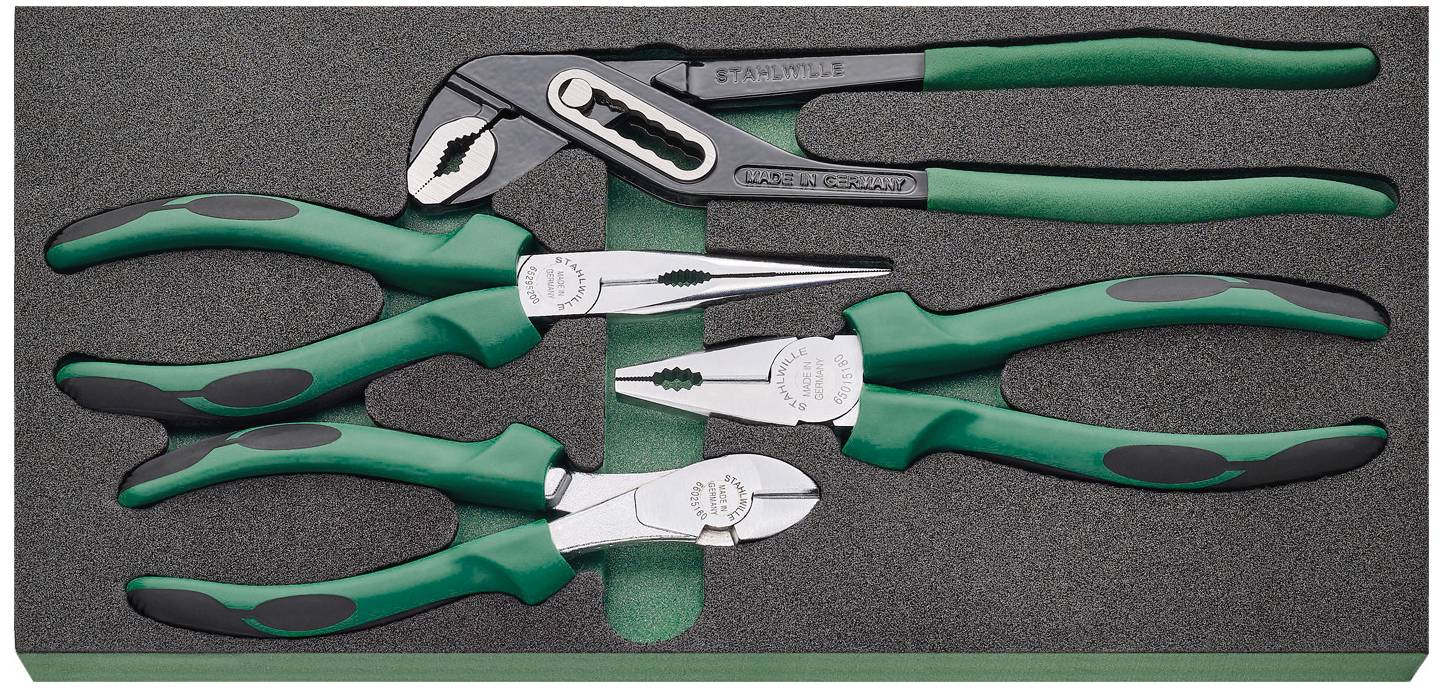

- 1 multigrip pliers No. 6551: 240 mm
- 1 Heavy side cutter Nr. 6602: 160 mm
- 1 needle nose pliers No. 6529: 200 mm
- 1 combination pliers No. 6501: 180 mm

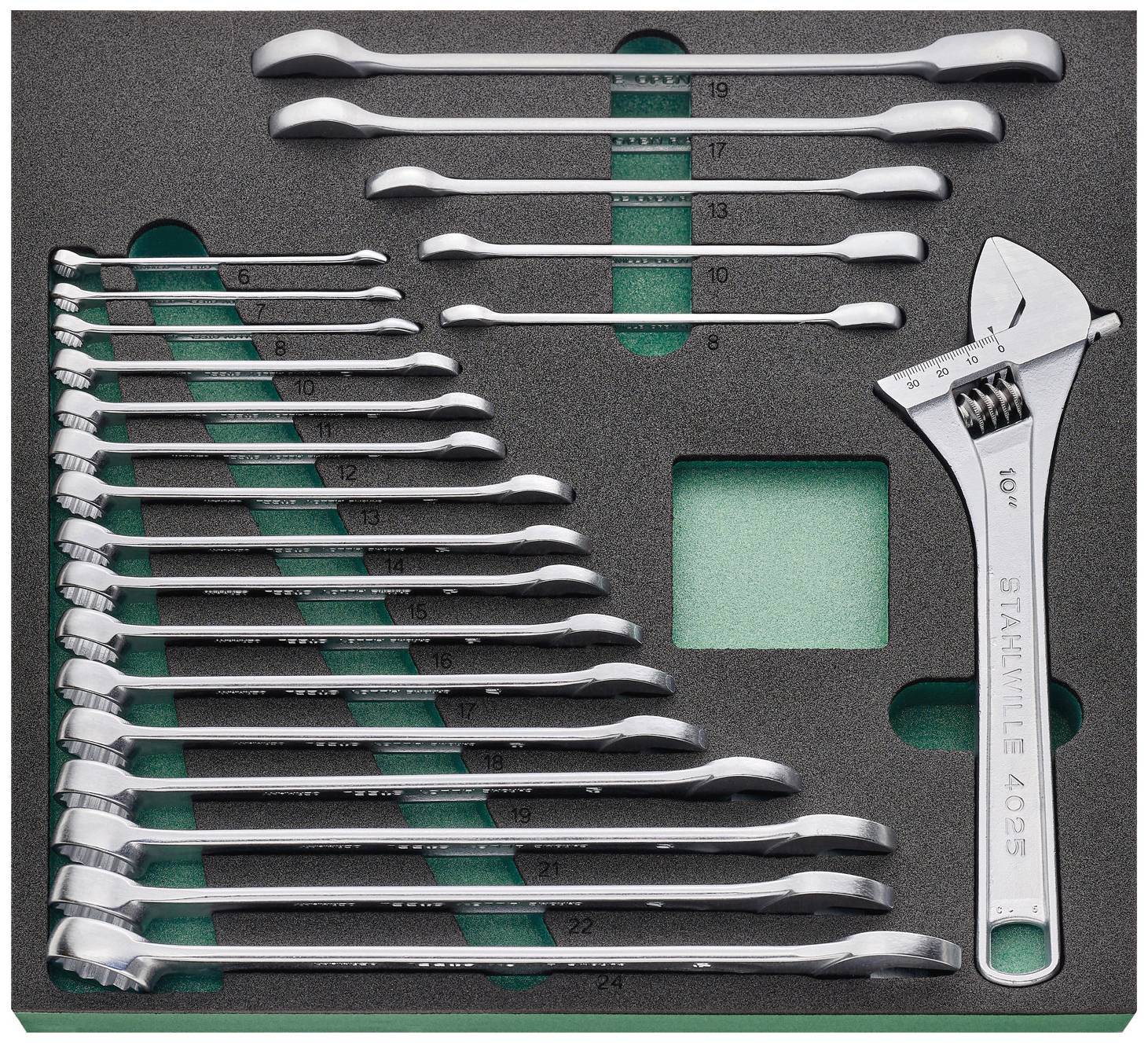

- 16 Combination wrenches Nr. 13: 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 mm
- 1 single-ended open ring spanner, adjustable No. 4025
- 5 ratchet ring spanner, flat No. 17F: 8, 10, 13, 17, 19 mm

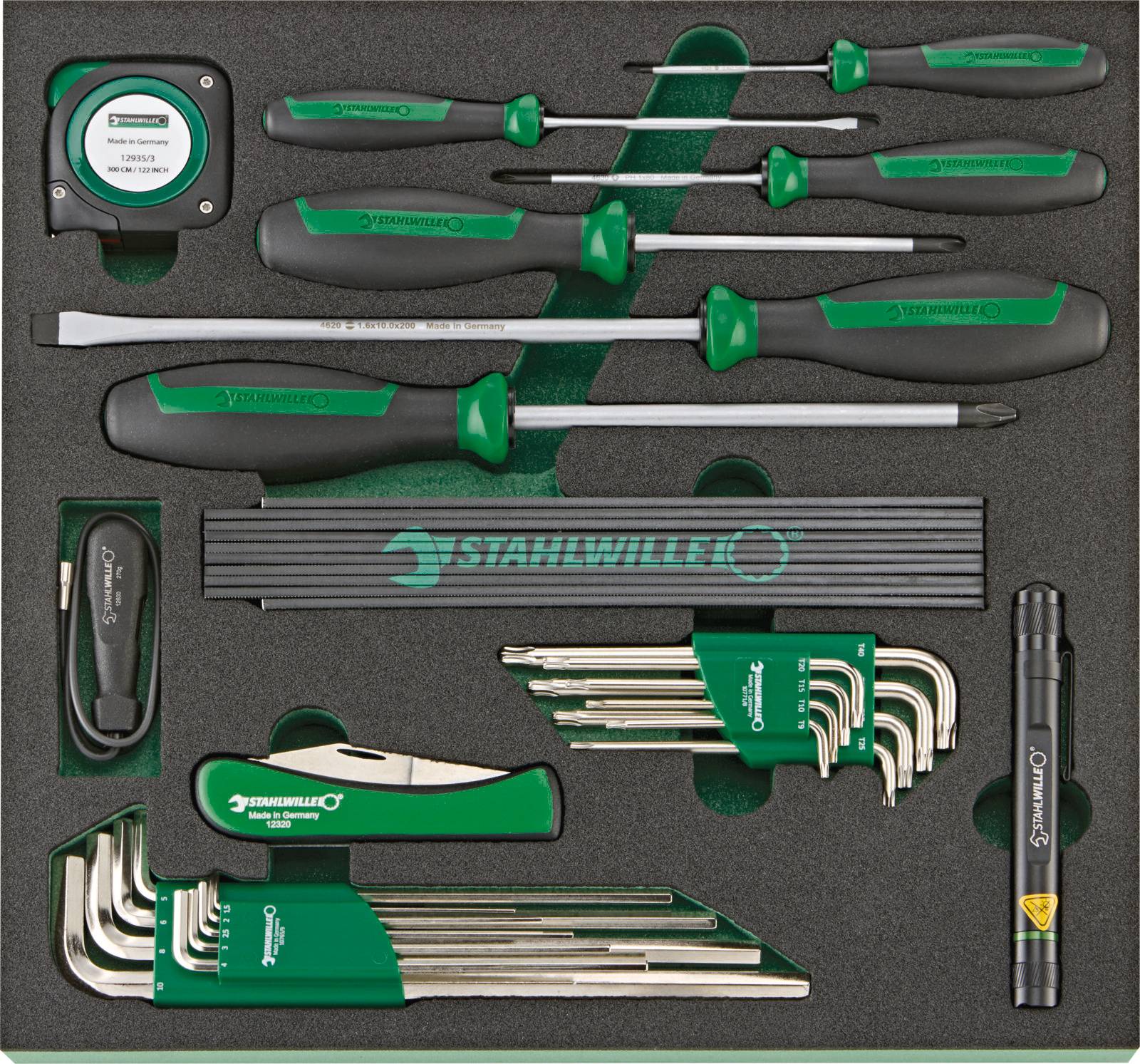

- 1 Electronics slotted screwdrivers no. 4628: 0.4 x 2.5 x 60 mm
- 2 Slot screwdriver No. 4620: 0.8 x 4 x 100, 1.6 x 10 x 200 mm
- 3 no. 4630 cross-tip screwdrivers PH1, PH2, PH3
- 1 cable knife No. 12320
- 1 Tape measure No. 12935/3: 3 m.
- 1 mini magnetic lifter No. 12600: 270 G
- 1 Wooden folding rule No. 13111: 2 m.
- 1 Set of Ball Head Cranked Wrench TORX® No. 10771/8: 8-piece
- 1 set of ball head angled screwdrivers with hexagonal no. 10767/9: 9-piece

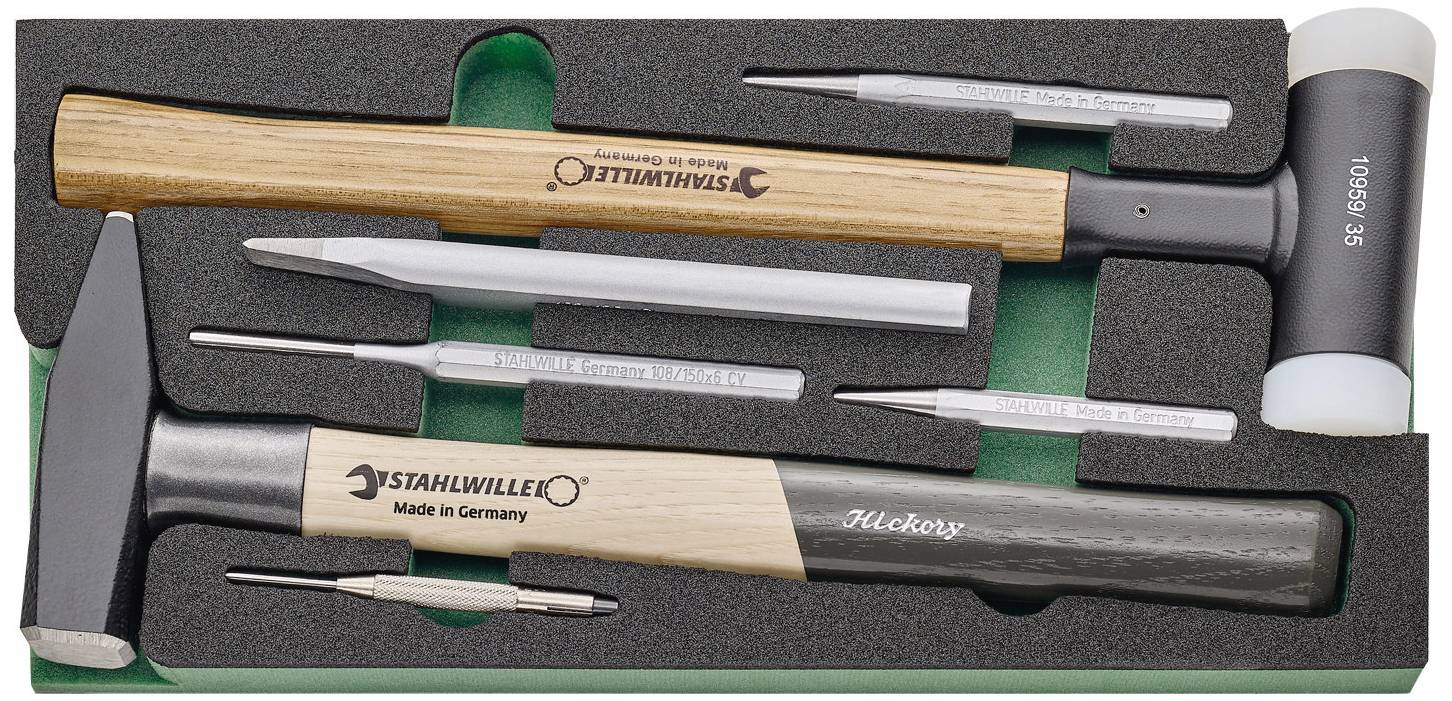

- 1 Ball Peen Hammer No. 10961: 500 G.
- 1 Soft hammer drill Nr. 10959: 35 mm
- 1 Flat chisel No. 102/175: 175 mm
- 1 Splint driver No. 108/150: 150 x 6 mm
- 1 grains No. 105/100: 100 x 10 mm
- 1 Splint driver No. 109/6: 3.4 mm
- 1 Drift No. 104/120: 120 x 4 mm

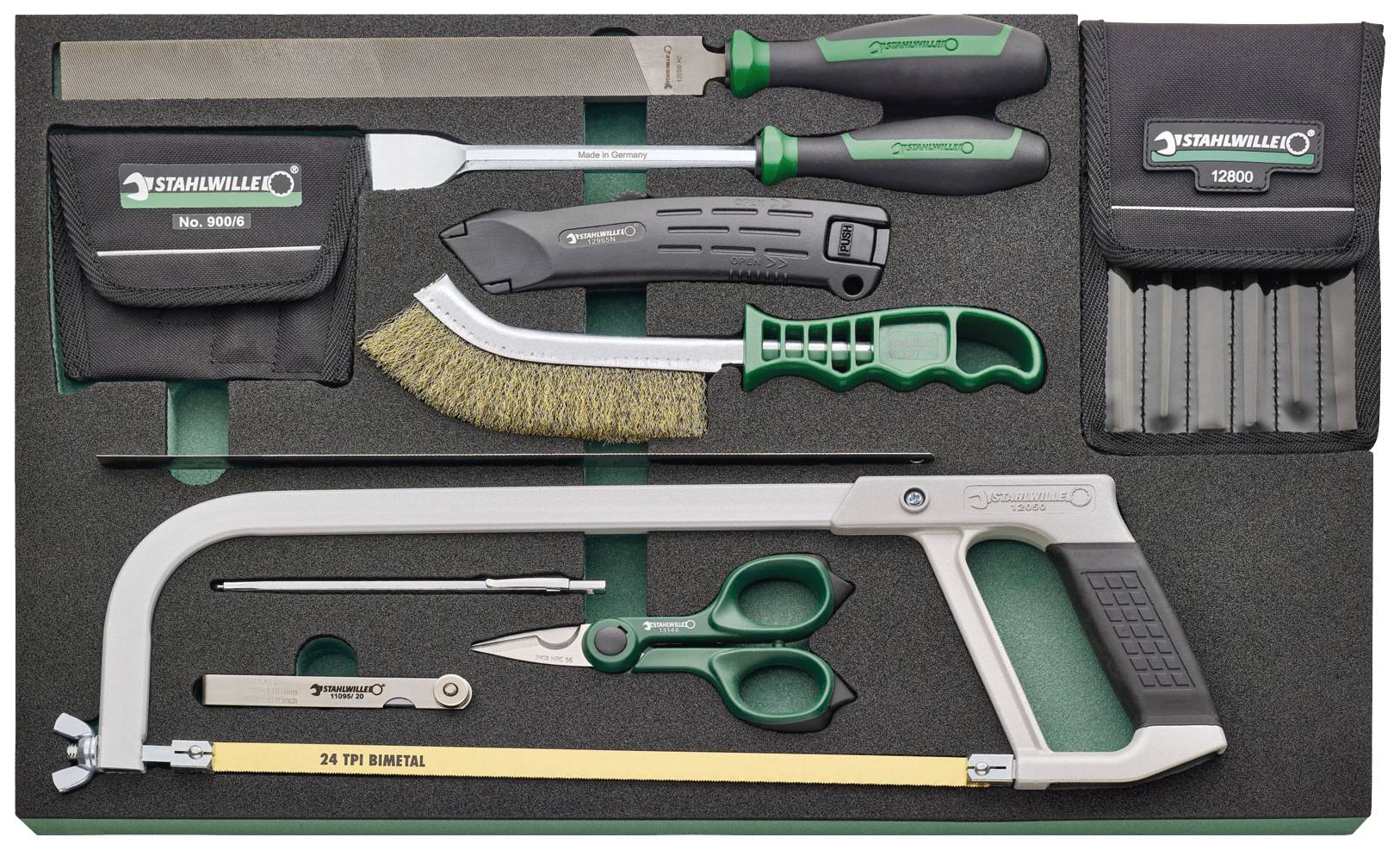

- 1 Screw extractor set No. 900/6 T: 6-piece
- 1 key file set No. 12800: 6-piece
- 1 Flat file No. 12036: 260 mm
- 1 sealing scraper No. 12718
- 1 Universal knife No. 12965
- 1 Wire brush no. 12377
- 1 Steel scale No. 13110
- 1 metal saw bow No. 12050
- 1 Rice needle No. 12322
- 1 wire shears No. 13148
- 1 Precision Feeler gauges No. 11095/20
- 13 Combination wrenches Nr. 14: 6, 8, 10, 13, 14, 17, 19, 21, 22, 24, 27, 30, 32 mm
- 15 Double fork-spanner No. 12: 3.2, 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
- 1 Circlip pliers No. 6546: A21
- 1 Circlip pliers No. 6543: J2
- 1 Circlip pliers No. 6545: A2
- 1 Circlip pliers No. 6544: J21
- 9 SCREWDRIVER INSERTS TORX® 1/2" NO. 54 TX: T20, T25, T27, T30, T40, T45, T50, T55, T60
- 10 Screwdriver inserts for inner hexagonal screws, 1/2" No. 54: 4, 5, 6, 7, 8, 10, 12, 14, 17, 19 mm
- 2 Screwdriver inserts for TORX®, 1/2" No. 1054 TX: T30, T50
- 2 screwdriver inserts for inner hexagonal screws, 1/2" No. 1054/2054: 6, 8 mm
- 4 Screwdriver inserts for inner hexagonal screws, 1/4" No. 44: 3, 4, 5, 6 mm
- 8 screwdriver inserts for TORX®, 1/4" No. 44 KTX: T8, T10, T15, T20, T25, T27, T30, T40
- 5 Screwdriver inserts for inner hexagonal screws 1/4" No. 44 K: 3, 4, 5, 6, 8 mm
