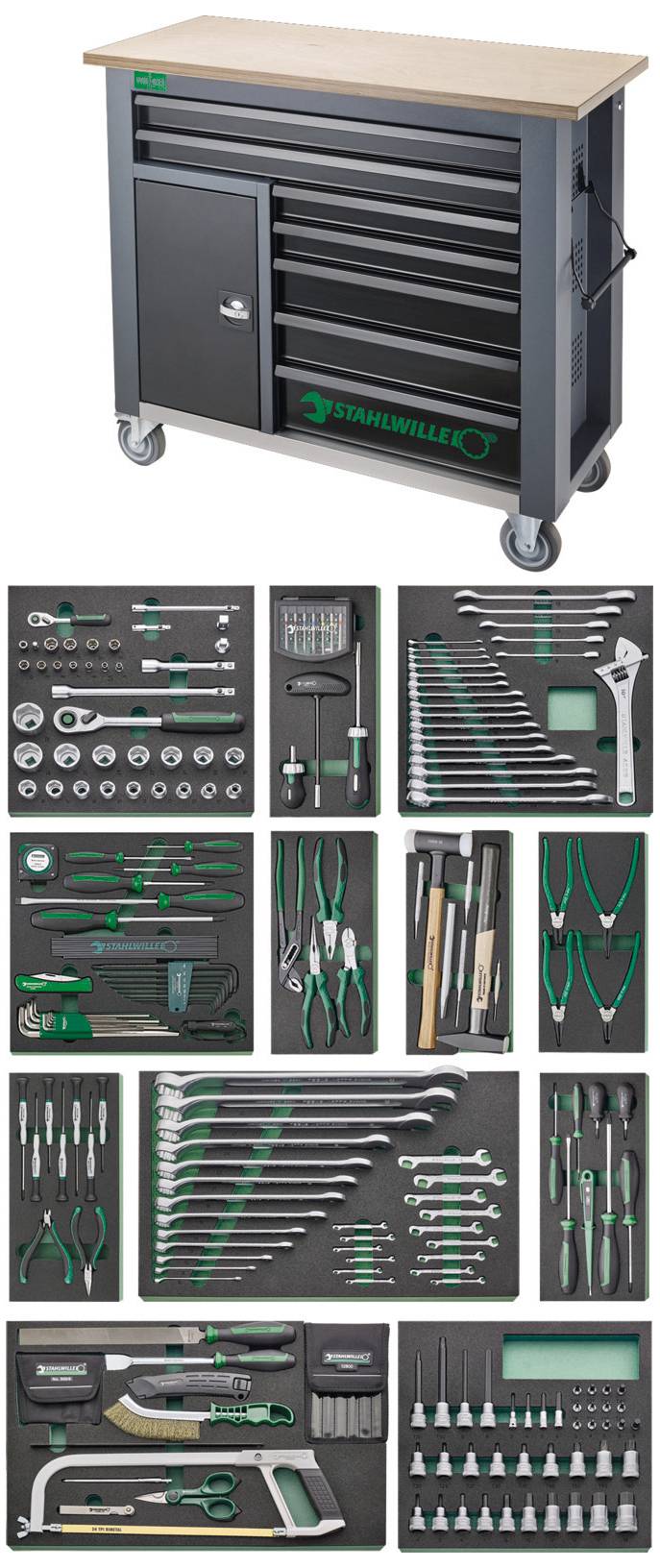

Stahlwille 98830195 Workbench (W x H x D) 1150 x 1045 x 500 mm Anthracite
EAN:
Part number:
Item no:
Highlights & Details
Mobile workbench frame incl. 267-piece Premium tool set 7 drawers
- Premium tool assortment contains 267 parts for different applications and tasks
- Contains 1/4" and 1/2" socket wrenches (5-32 mm), QR ratchet + QR extensions, bit ratchet and bits, ring spanner, screwdriver, various pliers and many other tools
- Ratchet with 80 teeth enable a working angle of just 4.5° – for efficient working even in narrow spaces
- Unique QR locking system - keeps every component safe from ratchet to extension socket wrench to socket wrench insert
- Tool control system (TCS): All tools are clearly stored in TCS mats. Here, the green catches the eye immediately as soon as a tool is missing
- 7 drawers
- Large working area with Birch multiplex panel, FSC-certified, 1150x 500x30 mm
- Three-stage safety concept:
- 1. Central locking by lateral cylinder lock with foldable key
- 2. Individual locking prevents accidental opening while driving
- 3. Tilt protection - not possible to pull out several drawers at the same time
- Cabling is possible through two rubber grommets and removable cable channel on the back
- Oil and acid-resistant wheels (Ø125 mm) with thread protection to protect the bearings from dirt and threads, with two locking brakes
- Corpus RAL 7016, drawers and cabinet part RAL 9005 in robust industrial powder coating
Technical specifications
- Dim
(W x H x D) 1150 x 1045 x 500 mm
- Product type
Workbench
- Width
1150 mm
- Thickness (worktop)
30 mm
- Height
1045 mm
- Factory colour
Anthracite
- Depth
500 mm
- Material (worktop)
Multiplex beech
- Weight
137 kg
- No. of drawers
7
- Features
incl. 267-pcs tool set
- Load capacity per drawer
30 kg
- Expandable
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123299 Stahlwille 98830195 Workbench (W x H x D) 1150 x 1045 x 500 mm Anthracite
Description
Workshop bench assortment – This is how comfortable it can be. Our workbench with perfect working height and plenty of space for premium tools!
The extensive tool set (267-part) forms an extensive and high-quality basis equipment or Original equipment for industry, trade, automotive or even the home garage.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the sturdy workbench with suitable, high-quality TCS mats for safe and organized storage of tools.
The unique distribution with two XXL drawers, five additional drawers and the cabinet part ensure high flexibility in the configuration and make the WB621 the ideal partner for tool storage in trade and industry.
High-quality materials provide the typical long life of the Stahlwille. For example, the robust body and drawers with industrial powder coating. Drawers and cabinet part are keyed alike. Includes paper roll holder.
This text is machine translated.
The extensive tool set (267-part) forms an extensive and high-quality basis equipment or Original equipment for industry, trade, automotive or even the home garage.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the sturdy workbench with suitable, high-quality TCS mats for safe and organized storage of tools.
The unique distribution with two XXL drawers, five additional drawers and the cabinet part ensure high flexibility in the configuration and make the WB621 the ideal partner for tool storage in trade and industry.
High-quality materials provide the typical long life of the Stahlwille. For example, the robust body and drawers with industrial powder coating. Drawers and cabinet part are keyed alike. Includes paper roll holder.
This text is machine translated.
Scope of delivery

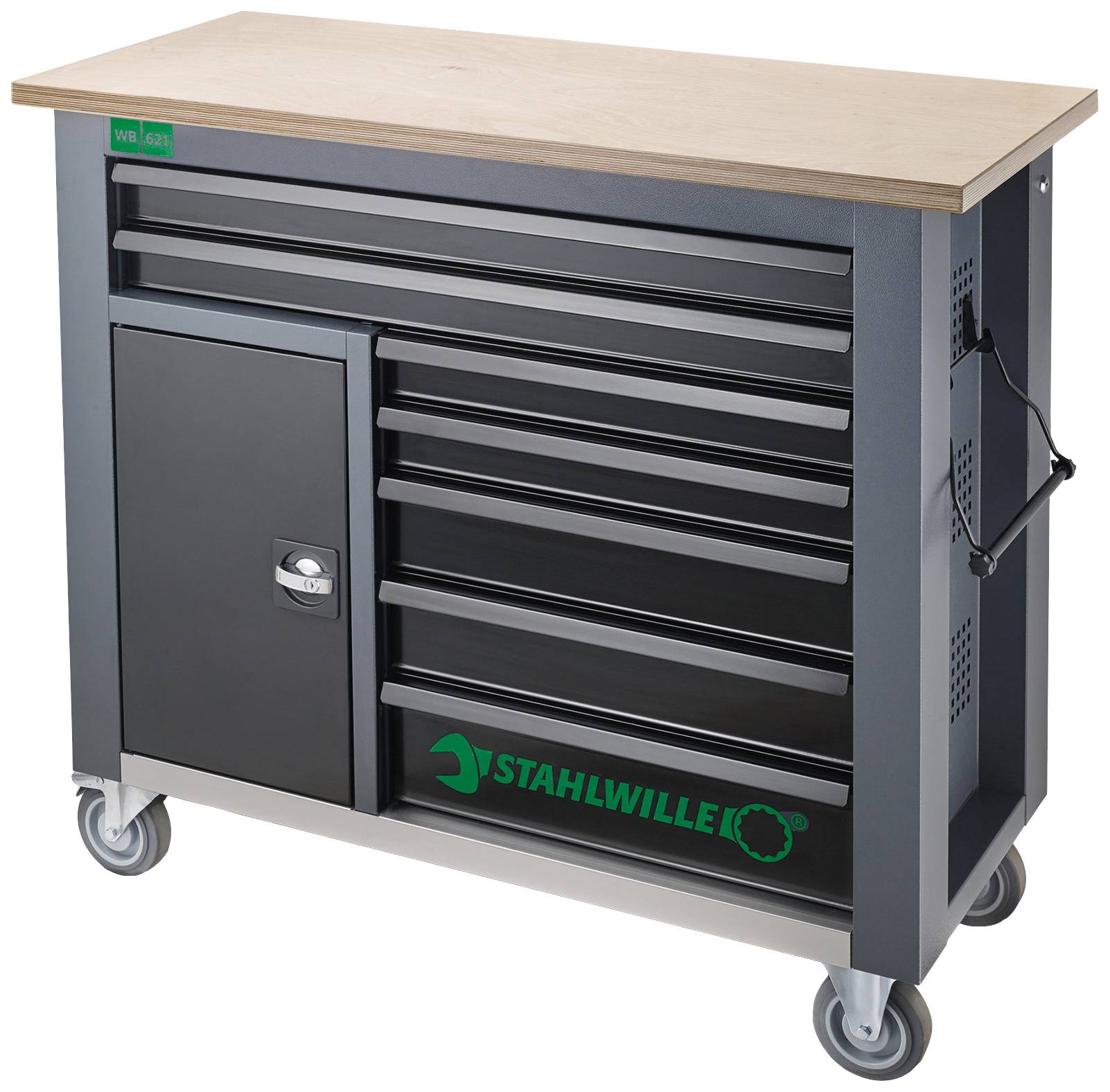

- 1 Mobile workbench WB 621
- 1 Paper roll holder

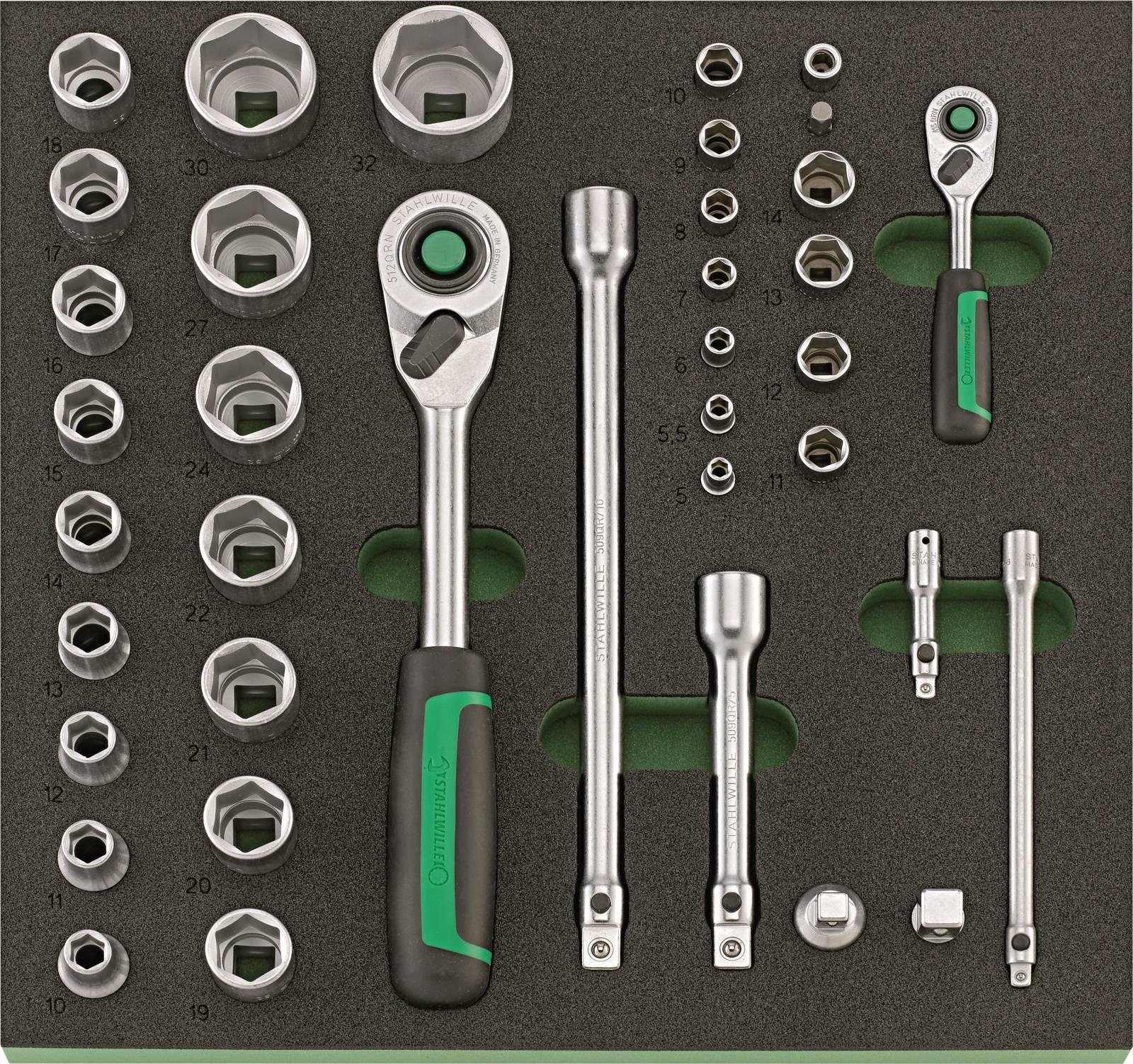

- 11 socket wrench inserts with hexagonal 1/4" No. 40: 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
- 17 socket wrench inserts with hexagonal 1/2" No. 52: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
- 2 extensions, 1/4" No. 405QR: 54, 150 mm
- 1 QuickRelease ratchet No. 415QR N: 1/4"
- 1 Bit connection part No. 3116
- 2 extensions, 1/2" No. 509QR: 130, 255 mm
- 1 QuickRelease ratchet No. 512QR N: 1/2"
- 1 transition part No. 410: 1/4 to 1/2"
- 1 transition part No. 513: 1/2 to 3/8"
- 1 Bit holder Nr. 412: 1/4"

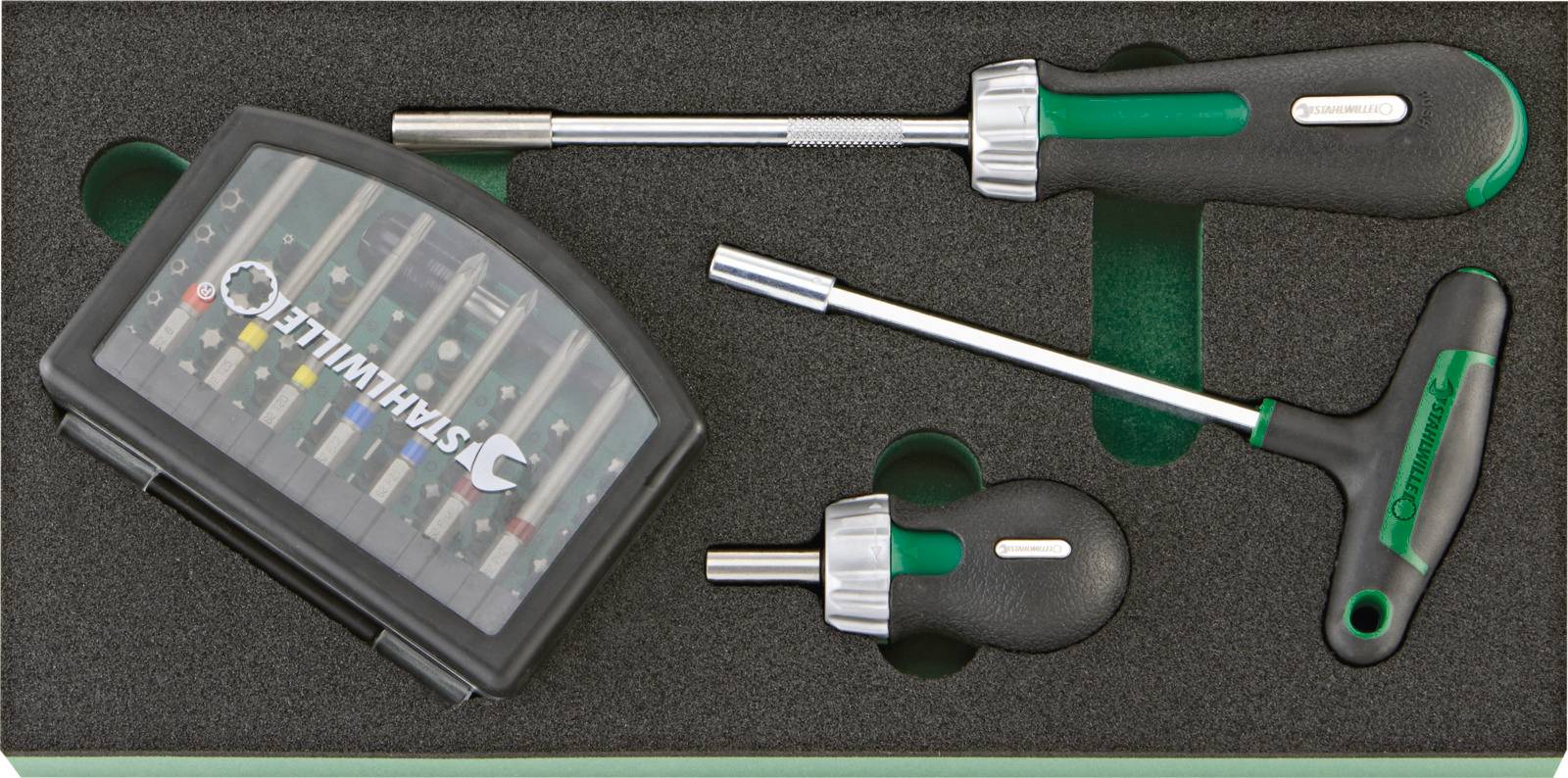

- 2 Bit ratchet No. 4008: 1/4"
- 1 Bit holder Nr. 4007: 1/4"
- 1 Bit Set No. 1206: 1 Bit holder | L.25mm: SL4.5,6mm (2x) | PH1.2,3 (3x) | PZ1.2,3 (3x) | T10.15.20.20.25.27.30.40 (2x) | T BO 10,15,20,25,27,30,40 | INHEX 3.4,5mm | L.75mm: SL6 mm | PH2.3 | PZ1.2 | T20.25 | 56-piece

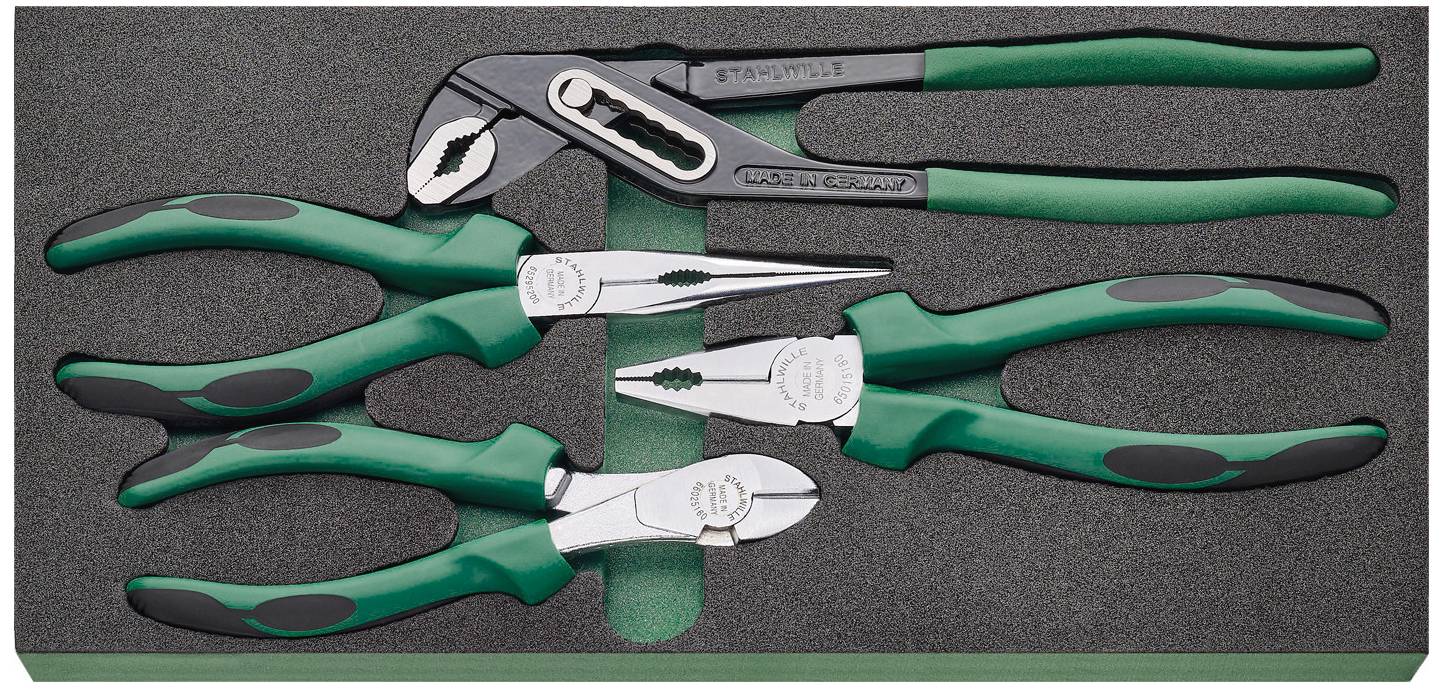

- 1 multigrip pliers No. 6551: 240 mm
- 1 Heavy side cutter Nr. 6602: 160 mm
- 1 needle nose pliers No. 6529: 200 mm
- 1 combination pliers No. 6501: 180 mm

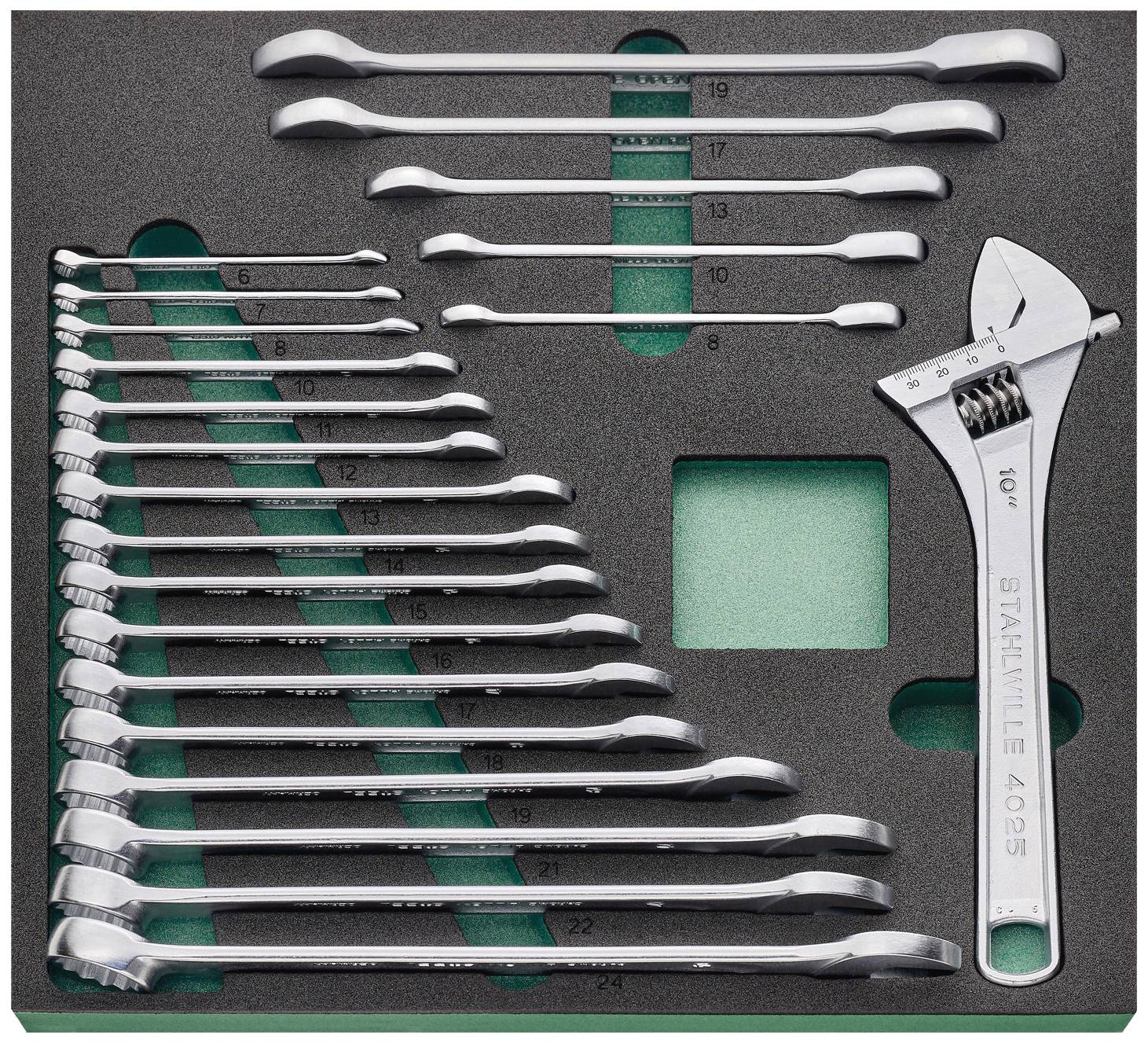

- 16 Combination wrenches No. 13:6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 mm
- 1 single-ended open ring spanner, adjustable No. 4025
- 5 ratchet ring spanner, flat No. 17F: 8, 10, 13, 17, 19 mm
- 1 Electronics slotted screwdrivers no. 4628: 0.4 x 2.5 x 60 mm

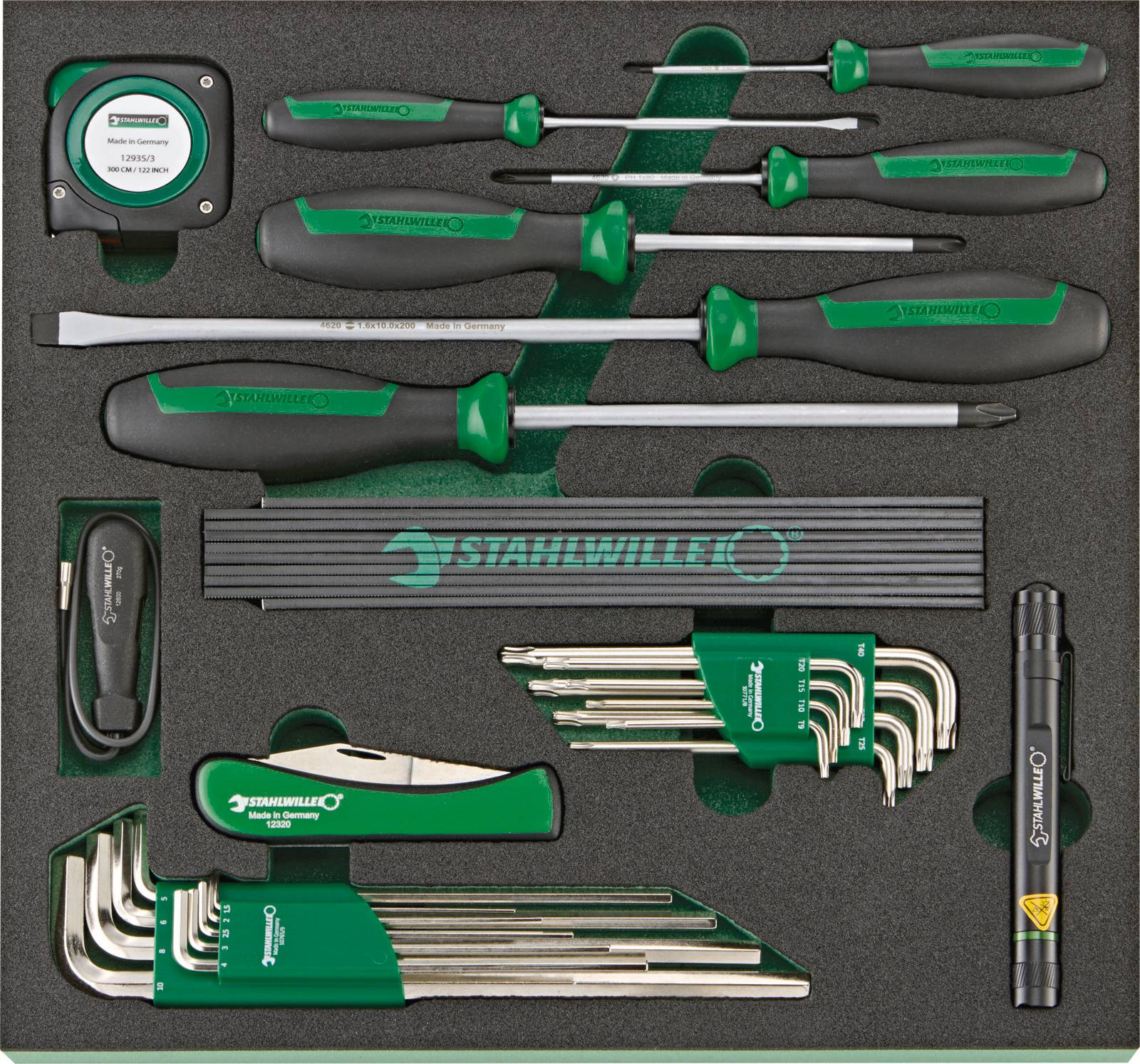

- 2 Slot screwdriver No. 4620: 0.8 x 4 x 100, 1.6 x 10 x 200 mm
- 3 no. 4630 cross-tip screwdrivers PH1, PH2, PH3
- 1 cable knife No. 12320
- 1 Tape measure No. 12935/3: 3 m.
- 1 mini magnetic lifter No. 12600: 270 G
- 1 Wooden folding rule No. 13111: 2 m.
- 1 Set of Ball Head Cranked Wrench TORX® No. 10771/8: 8-piece
- 1 set of ball head angled screwdrivers with hexagonal no. 10767/9: 9-piece

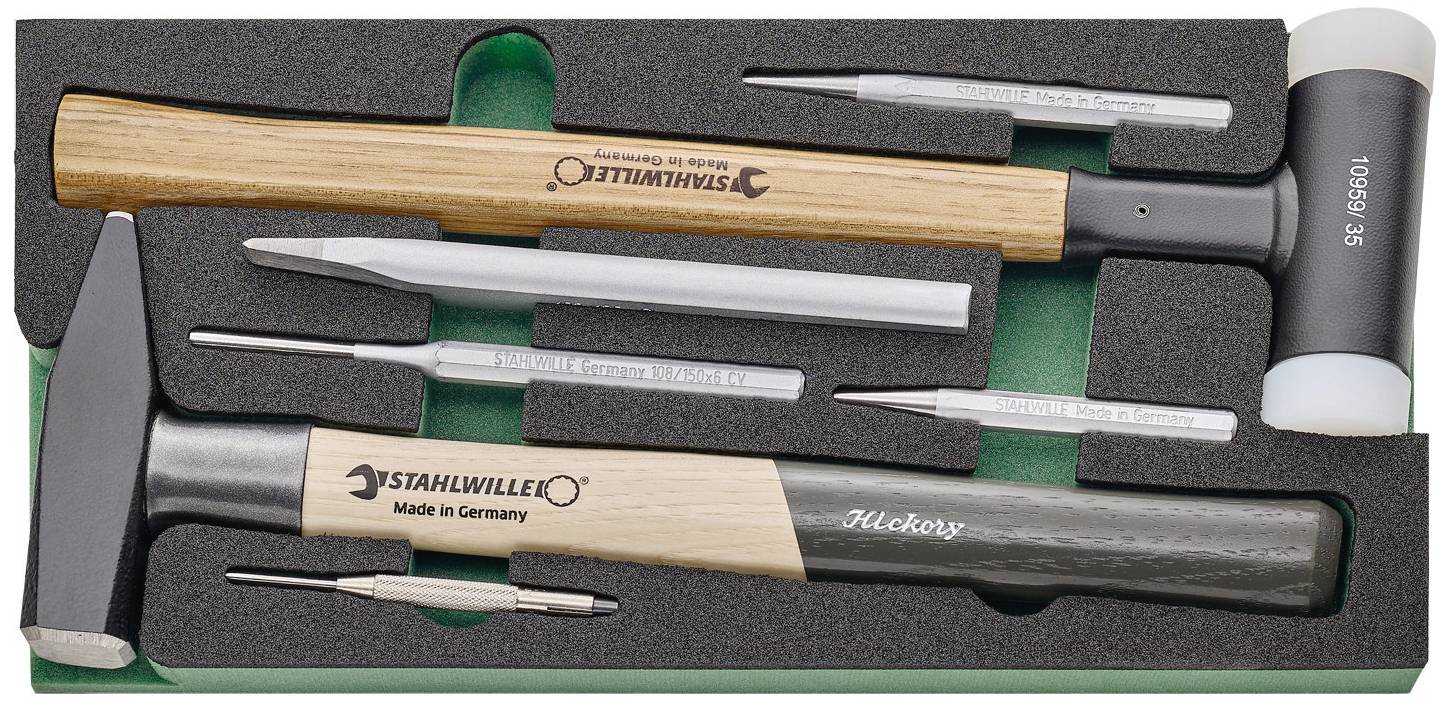

- 1 Ball Peen Hammer No. 10961: 500 G.
- 1 Soft hammer drill Nr. 10959: 35 mm
- 1 Flat chisel No. 102/175: 175 mm
- 1 Splint driver No. 108/150: 150 x 6 mm
- 1 grains No. 105/100: 100 x 10 mm
- 1 Splint driver No. 109/6: 3.4 mm
- 1 Drift No. 104/120: 120 x 4 mm
- 1 Screw extractor set No. 900/6 T: 6-piece
- 1 key file set No. 12800: 6-piece
- 1 Flat file No. 12036: 260 mm
- 1 sealing scraper No. 12718
- 1 Universal knife No. 12965
- 1 Wire brush no. 12377
- 1 Steel scale No. 13110
- 1 metal saw bow No. 12050
- 1 Scriber No. 12322
- 1 wire shears No. 13148
- 1 Precision Feeler gauges No. 11095/20
- 13 Combination wrenches Nr. 14: 6, 8, 10, 13, 14, 17, 19, 21, 22, 24, 27, 30, 32 mm
- 15 Double fork-spanner No. 12: 3.2, 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
- 1 Circlip pliers No. 6546: A21
- 1 Circlip pliers No. 6543: J2
- 1 Circlip pliers No. 6545: A2
- 1 Circlip pliers No. 6544: J21
- 9 SCREWDRIVER INSERTS TORX® 1/2" NO. 54 TX: T20, T25, T27, T30, T40, T45, T50, T55, T60
- 10 Screwdriver inserts for inner hexagonal screws, 1/2" No. 54: 4, 5, 6, 7, 8, 10, 12, 14, 17, 19 mm
- 2 Screwdriver inserts for TORX®, 1/2" No. 1054 TX: T30, T50
- 2 screwdriver inserts for inner hexagonal screws, 1/2" No. 1054/2054: 6, 8 mm
- 4 Screwdriver inserts for inner hexagonal screws, 1/4" No. 44: 3, 4, 5, 6 mm
- 8 screwdriver inserts for TORX®, 1/4" No. 44 KTX: T8, T10, T15, T20, T25, T27, T30, T40
- 5 Screwdriver inserts for inner hexagonal screws 1/4" No. 44 K: 3, 4, 5, 6, 8 mm

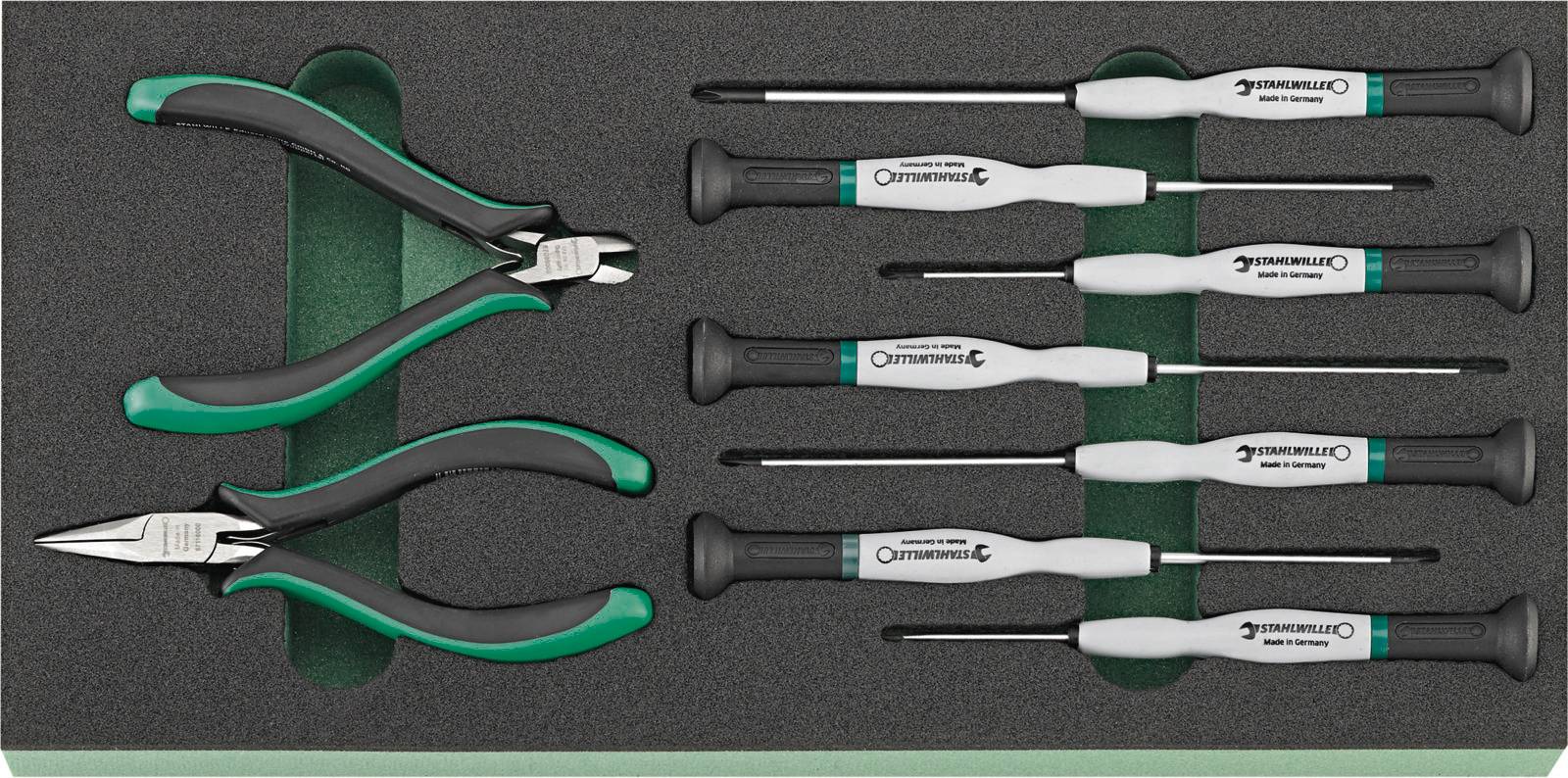

- 4 Electronics slotted screwdrivers no. 4751: 0.3 x 1.5, 0.4 x 2, 0.4 x 2.5, 0.5 x 3 mm
- 3 Electronics Phillips screwdriver No. 4752: PH00, PH0, PH1
- 1 Needle nose pliers No. 6540: 125 mm
- 1 Mini Electronic side cutter No. 6604
- 1 Slot screwdriver No. 4620: 1.0 x 5.5 x 125 mm
- 4 Phillips screwdriver No. 4640: PZ0, PZ1, PZ2, PZ3
- 2 cross-tip screwdrivers No. 4734: PH1, PH2
- 1 voltage tester No. 10554
