Stand Microphone transmitter Monacor ATS-80ST Transfer type (details):Digital
EAN:
Part number:
Item no:
Highlights & Details

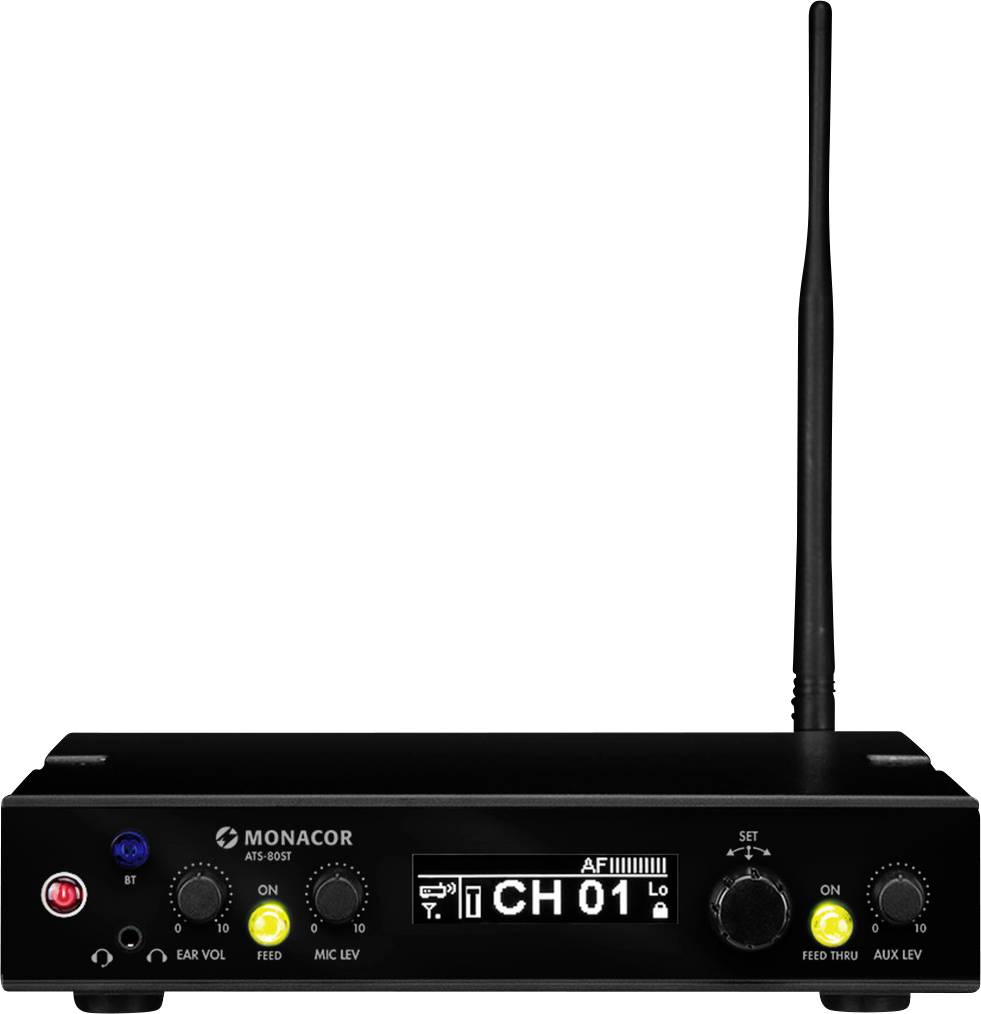

MONACOR ATS-80ST stationary transmitter
- Also suitable as a "tour guide system" for applications in which a 2-way communication is required, such as Trainings, lectures with questions and answers and group or plant tours
- High interference resistance through digital transmission
- High volume output
- Frequency range optimized for voice applications
- Up to 42 different channels can be operated in parallel without interference
Technical specifications
- Transmission power ≤20 mW / ≤10 mW
- Range: 100 m
- Product type
Microphone transmitter
- Type
Stand
- Transfer type
Digital
- Frequency response
823-832 and 863-865 MHz
- On/off switch
yes
- Weight
1.25 kg
- Width
51 mm
- Height
210 mm
- Length
215 mm
- Dim
(L x W x H) 215 x 51 x 210 mm
- Interfaces
XLR
RCA in
RCA (phono)
Headphone jack (3.5 mm)
- No. of frequencies (adjustable)
42
- No. of transmitters
1
100 m
- Frequency
823 - 832 MHz
863 - 865 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2336008 Stand Microphone transmitter Monacor ATS-80ST Transfer type (details):Digital
Information
Information 2336008 Stand Microphone transmitter Monacor ATS-80ST Transfer type (details):Digital
Description
42-channel digital PLL language transmission system, 823-832 and 863-865 MHz
This text is machine translated.
This text is machine translated.
Features
- Audio stereo line input via cinch L/R
- microphone input via combination socket (XLR/6.3-mm jack)
- Audio mono line output via cinch
- Loop input and output via 6.3-mm jack
- Controllable headphone output for monitoring
- removable antenna (TNC)
- Bluetooth support
- Audio USB programming interface
- Contrast rich OLED display
- Channel name and ID Editable
- Transmission power adjustable
- via arrow. Plug power supply
Hints
There are restrictions or requirements in the EU!
The radio systems in the frequency range, 863 MHZ to 865 MHz and 2.4 GHz have the general approval and are free of registration and fees in the EU!
The radio systems in the frequency range 506 MHz to 542 MHz, 518 MHz to 542 MHz, 672 MHz to 694 MHz possess the general approval according to the Vfg. 34/2020 and are free of registration and fees in Germany! All radio equipment has been tested by a notified body and is approved in the EU in accordance with THE RED Directive, However, a frequency allocation for the systems in the frequency range 740 MHz to 776 MHZ, 823 MHz to 832 MHz and 1.8 GHz for the respective area in which the radio is to be operated must be requested from the respective national authority. There are restrictions or requirements in the EU!
In Germany, the frequency allocation must be requested from the relevant branch of the Federal Network Agency.
The declaration of conformity can be found on the Internet on the manufacturer's website.
