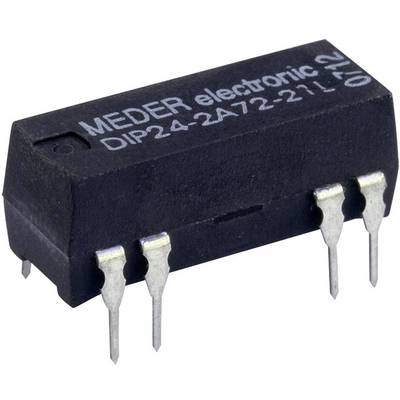

StandexMeder Electronics DIP24-2A72-21L Reed relay 2 makers 24 V DC 0.5 A 10 W DIP 8
EAN:
Part number:
Item no:
Product type
Reed relay
Contact type
2 makers
Enclosure
DIP 8
Connection
Print
Contact material
Iridium
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Technical specifications
- Product type
Reed relay
- Type
DIP24-2A72-21L
- Contact type
2 makers
- Features
w/o protection diode
- Enclosure
DIP 8
- Connection
Print
- Contact material
Iridium
- Nominal voltage
24 V DC
- Resistance (coil)
2000 Ω
- Switching voltage (max.)
200 V DC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Min. temperature
-20 °C
- Max. temperature
70 °C

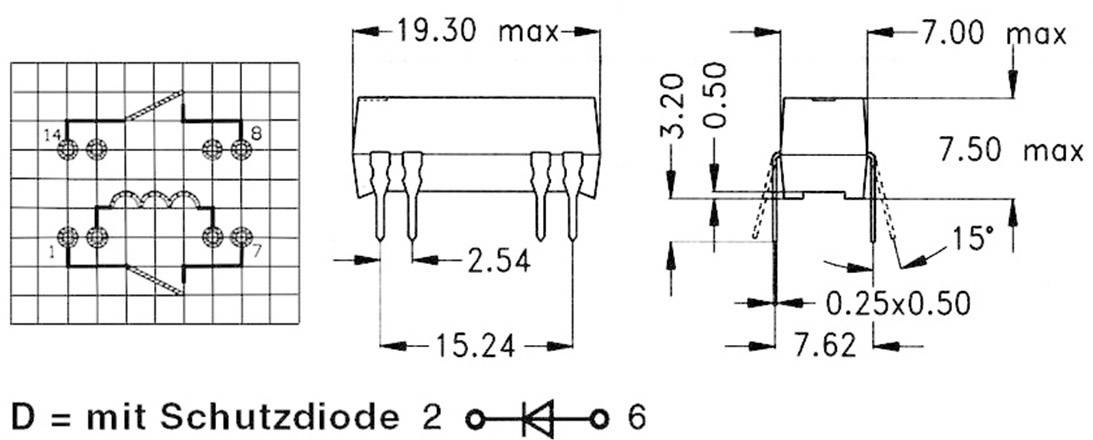

- Length
19.3 mm
- Width
7 mm
- Height
7.5 mm
- Dim
(L x W x H) 19.3 x 7 x 7.5 mm
Documents & Downloads
Datasheet
Datasheet 1205888 StandexMeder Electronics DIP24-2A72-21L Reed relay 2 makers 24 V DC 0.5 A 10 W DIP 8
