StandexMeder Electronics MK01-B SMD reed switch 1 maker 200 V DC, 200 V AC 0.5 A 10 W
EAN:
Part number:
Item no:
Product type
SMD reed switch
Contact type
1 maker
Switching voltage (max.)
200 V DC
200 V AC
Switching current (max.)
0.5 A
Connection
Solder pins
Datasheet (PDF)
Total (€ 0.83 / piece)
€ 2.49
plus VAT.
14-day return policy included
Technical specifications
- Design: SMT
- Product type
SMD reed switch
- Type
MK01-B
- Contact type
1 maker
- Contact material
Iridium
- Switching voltage (max.)
200 V DC
200 V AC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Connection
Solder pins
- Max. temperature
+130 °C
- Min. temperature
-20 °C

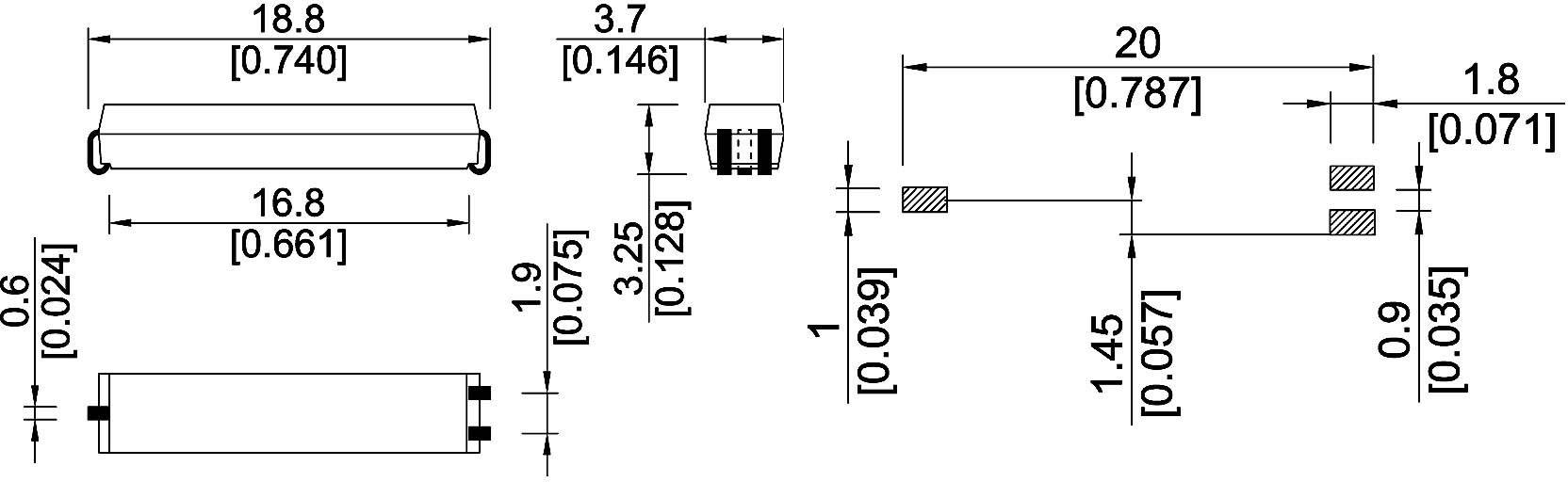

- Width
3.7 mm
- Height
3.4 mm
- Length
18.8 mm
- Dim
(L x W x H) 18.8 x 3.7 x 3.4 mm
