StandexMeder Electronics MK14-1A66C-500W Reed switch 1 maker 180 V DC, 180 V AC 0.5 A 10 W
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
180 V DC
180 V AC
Switching current (max.)
0.5 A
Connection
Open end cable
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
3% = € 0.17
€ 5.70
10
5% = € 0.29
€ 5.58
50
10% = € 0.58
€ 5.29
100
20% = € 1.17
€ 4.70
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Technical specifications
- Product type
Reed switch
- Type
MK14-1A66C-500W
- Water activity (max.)
53
- Water activity (min.)
35
- Contact type
1 maker
- Switching voltage (max.)
180 V DC
180 V AC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Connection
Open end cable
- Cable length
0.50 m
- Enclosure material
PBT
- Max. temperature
70 °C
- Min. temperature
-30 °C
- Length
25.5 mm
- (Ø)
4 mm
- Dim
(Ø x L) 4 mm x 25.5 mm
- Water activity
35 - 53
Documents & Downloads
Datasheet
Datasheet 1382818 StandexMeder Electronics MK14-1A66C-500W Reed switch 1 maker 180 V DC, 180 V AC 0.5 A 10 W
Description

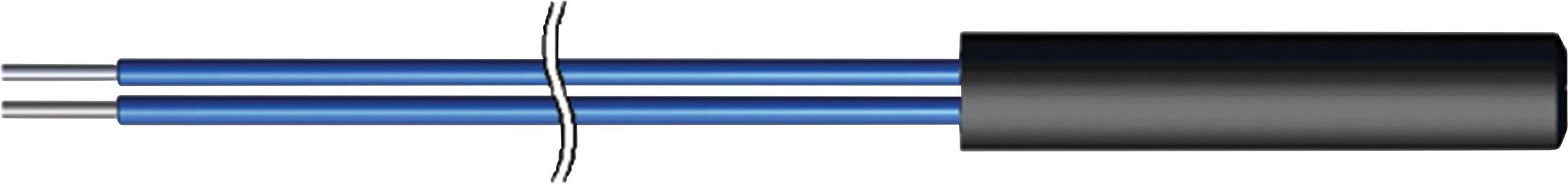

Reed sensor with a diameter of 4 mm for clamping or adhesive mounting in a cylindrical housing with cable connection.
