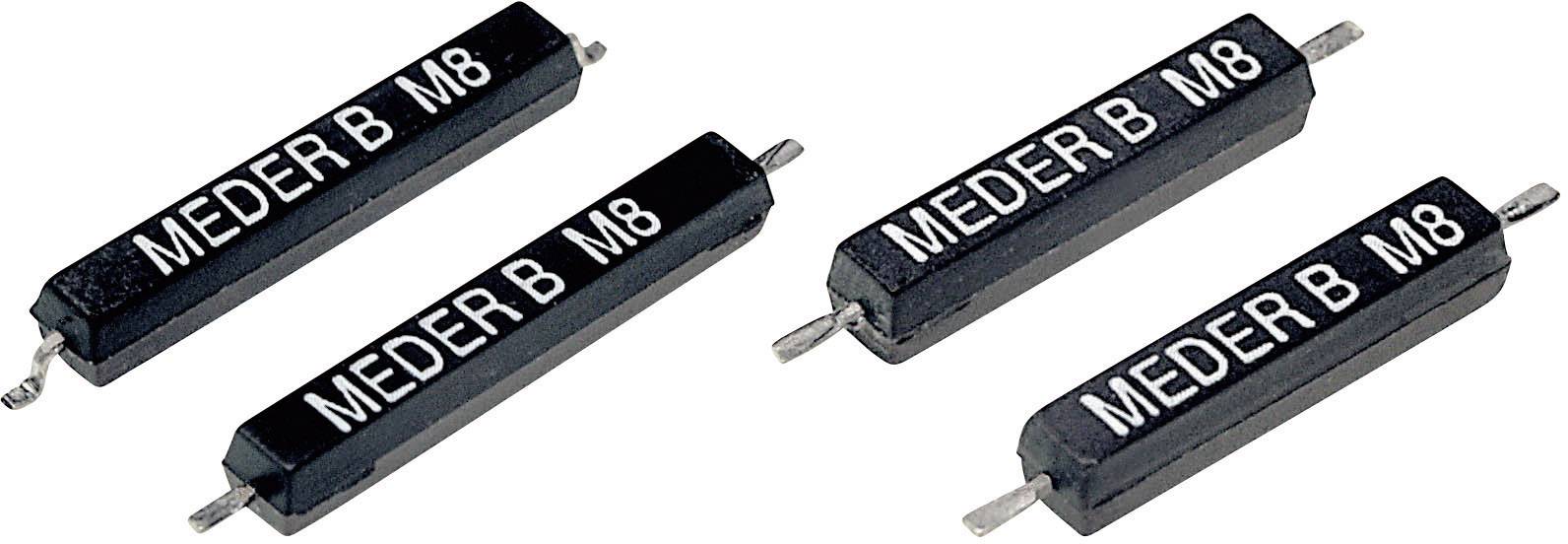

StandexMeder Electronics MK15-C-2 SMD reed switch 1 maker 180 V DC, 180 V AC 0.5 A 10 W
EAN:
Part number:
Item no:
Product type
SMD reed switch
Contact type
1 maker
Switching voltage (max.)
180 V DC
180 V AC
Switching current (max.)
0.5 A
Connection
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.18
5
3% = € 0.07
€ 2.11
10
5% = € 0.11
€ 2.07
50
10% = € 0.22
€ 1.96
100
20% = € 0.44
€ 1.74
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.18 / piece)
€ 2.18
plus VAT.
Technical specifications
- Product type
SMD reed switch
- Type
MK15-C-2
- Water activity (max.)
20
- Water activity (min.)
15
- Contact type
1 maker
- Contact material
Rh (Rhodium)
- Switching voltage (max.)
180 V DC
180 V AC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Connection
Soldering
- Max. temperature
+130 °C
- Min. temperature
-40 °C

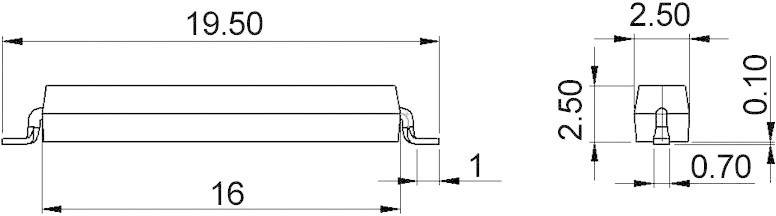

- Width
2.5 mm
- Height
2.5 mm
- Length
19.5 mm
- Dim
(L x W x H) 19.5 x 2.5 x 2.5 mm
- Water activity
15 - 20
Documents & Downloads
Datasheet
Datasheet 1205901 StandexMeder Electronics MK15-C-2 SMD reed switch 1 maker 180 V DC, 180 V AC 0.5 A 10 W
