StandexMeder Electronics SIL12-1A72-71L Reed relay 1 maker 12 V DC 1 A 15 W SIL 4
EAN:
Part number:
Item no:
Product type
Reed relay
Contact type
1 maker
Enclosure
SIL 4
Connection
Print
Contact material
Iridium
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 4.03
-21 %
€ 3.18
plus VAT.
14-day return policy included
Technical specifications
- Product type
Reed relay
- Type
SIL12-1A72-71L
- Contact type
1 maker
- Features
w/o protection diode
- Enclosure
SIL 4
- Connection
Print
- Contact material
Iridium
- Nominal voltage
12 V DC
- Resistance (coil)
1000 Ω
- Switching voltage (max.)
200 V DC
- Switching current (max.)
1 A
- Max. switching capacity
15 W
- Min. temperature
-20 °C
- Max. temperature
70 °C

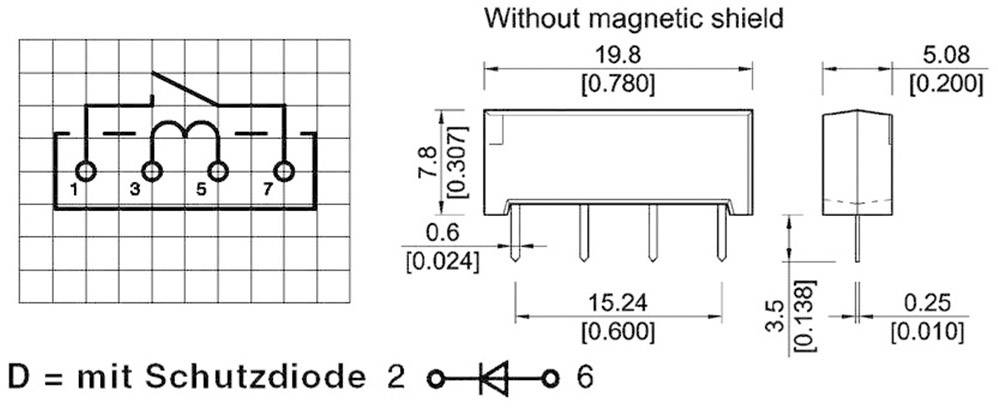

- Length
19.8 mm
- Width
5.08 mm
- Height
7.8 mm
- Dim
(L x W x H) 19.8 x 5.08 x 7.8 mm
Documents & Downloads
Datasheet
Datasheet 1205891 StandexMeder Electronics SIL12-1A72-71L Reed relay 1 maker 12 V DC 1 A 15 W SIL 4
User & Safety Instructions
User & Safety Instructions 1205891 StandexMeder Electronics SIL12-1A72-71L Reed relay 1 maker 12 V DC 1 A 15 W SIL 4
Description
SIL relays reduce the space required compared with DIP relay by 50%. You have an international standard pin assignment and are thus compatible with almost all the other manufacturers.
