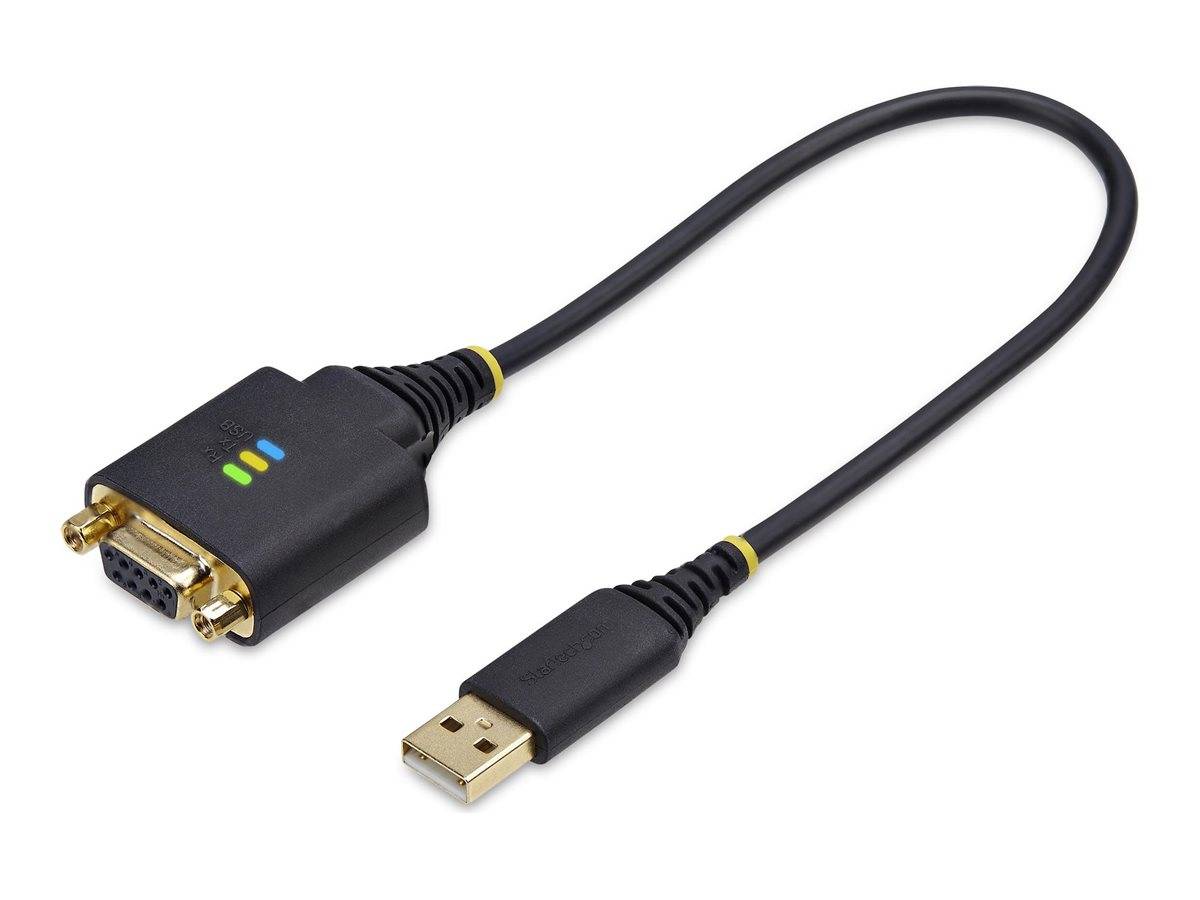

StarTech.com 1P1FFCN-USB-SERIAL USB Cable Multicolour 0.3 m
EAN:
Part number:
Item no:
Highlights & Details
StarTech.com 1P1FFCN-USB-SERIAL USB Cable Multicolour 0.3 m
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to the serial device with the pre-installed DB9 nuts or use DB9 screws to ensure compatibility with serial devices/cables; one DB9 RS-232 port for PC via USB-A
- LED indicators: The Send and Receive LED indicators provide real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully detected by the desktop or laptop
- COMPATIBILITY: Works with Windows, MacOS, ChromeOS and Linux; automatic driver installation on Windows 7+, MacOS 10.15+ and Linux; COM retention provides automatic reassignment of COM ports; clearing DCE/DTE conflicts without cross-cables/adapters
- HIGH QUALITY TPE housing and ESD protection of level 4 (15 kV air/8 kV contact) increase reliability and durability; copper shielding minimizes EMI/RFI interference; gold-plated connections; ambient temperature -40°C to 80°C.
- TECHNICAL DATA: 0.3 meters cable length; FTDI FT232R chipset; maximum baud rate: 921.6Kbps; 128 bytes RX and 256 bytes TX FIFO; Odd/Even/Mark/Space/None Parity modes; 7 or 8 data bits; 1 or 2 stop bits
Technical specifications
- StarTech.com 1ft/30cm USB to zero modem serial adapter cable, FTDI, RS232 - cable USB/serial - USB to DB-9 - 30 cm
- Type : cable USB / serial
- Technology: Shielded
- Special features : Shaped, robust, EMI/RFI protection, electrostatic discharge protection (ESD), LED status indicator, FTDI FT232R chipset, bus-powered, 921.6 Kbps data rate, COM retention
- Cable length: 30 cm
- Connection : 4-pin USB Type A - male
- Plug (second end) : D-Sub (DB-9), 9-pin female - screw-in
- Product certificates : USB 2.0 / USB 1.1
- Colour: black
- Product type
RS232 Cable
- Connection type
USB
- Type A
USB
- Type B
USB
- Cable length
0.3 m
- Factory colour
Multicolour
- Cable use
RS232
- Version
Cable
- Range of use
Monitors/TV adapters
Cable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740187 StarTech.com 1P1FFCN-USB-SERIAL USB Cable Multicolour 0.3 m
Description
Product description : StarTech.com 1ft/30cm USB to zero modem Serial Adapter Cable, FTDI, RS232 - USB cable / serial - USB to DB-9 - 30 cmType : Cable USB / serial technology : Shielded Features : Shaped, robust, EMI/RFI protection, electrostatic discharge protection (ESD), LED status indicator, FTDI FT232R chipset, bus powered, 921.6 Kbps data rate, COM retention Cable length : 30 cmConnection : 4-pin USB type A male connector (second end) : D-Sub (DB-9), 9-pin female - screwable Product certifications : USB 2.0 / USB 1.1 Colour : Black
This text is machine translated.
This text is machine translated.
Features
- StarTech.com 1ft/30cm USB to zero modem serial adapter cable, FTDI, RS232 - cable USB/serial - USB to DB-9 - 30 cm
- Type : cable USB / serial
- Technology: Shielded
- Special features : Rugged, molded, FTDI FT232R chipset, LED status indicator, 921.6 Kbps data rate, bus-operated, COM-retention, electrostatic discharge protection (ESD), EMI/RFI protection
- Length : 30 cm
- Connection : 4-pin USB Type A - male
- Plug (second end) : D-Sub (DB-9), 9-pin female - screw-in
- Product certificates : USB 2.0 / USB 1.1
- Colour: black
