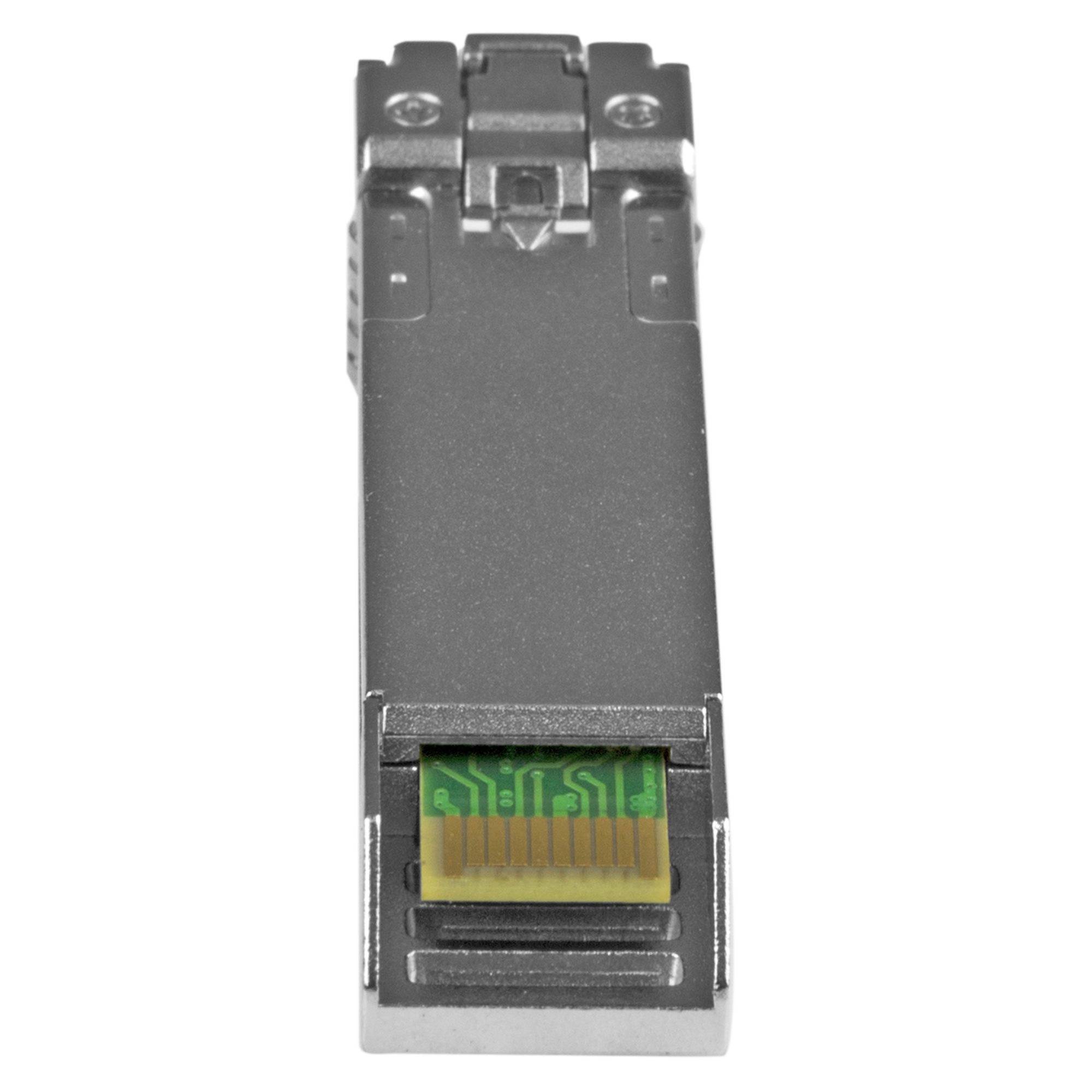

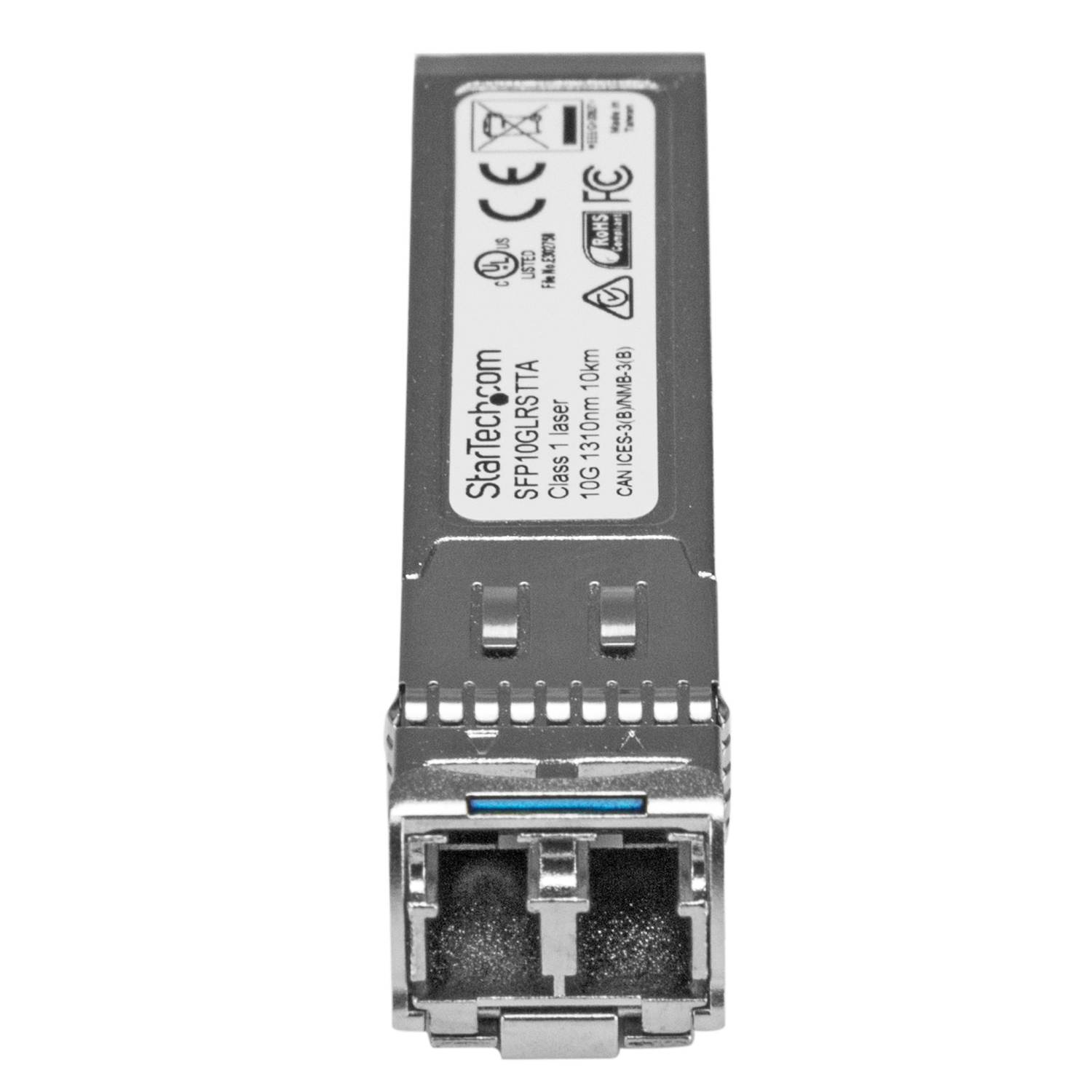

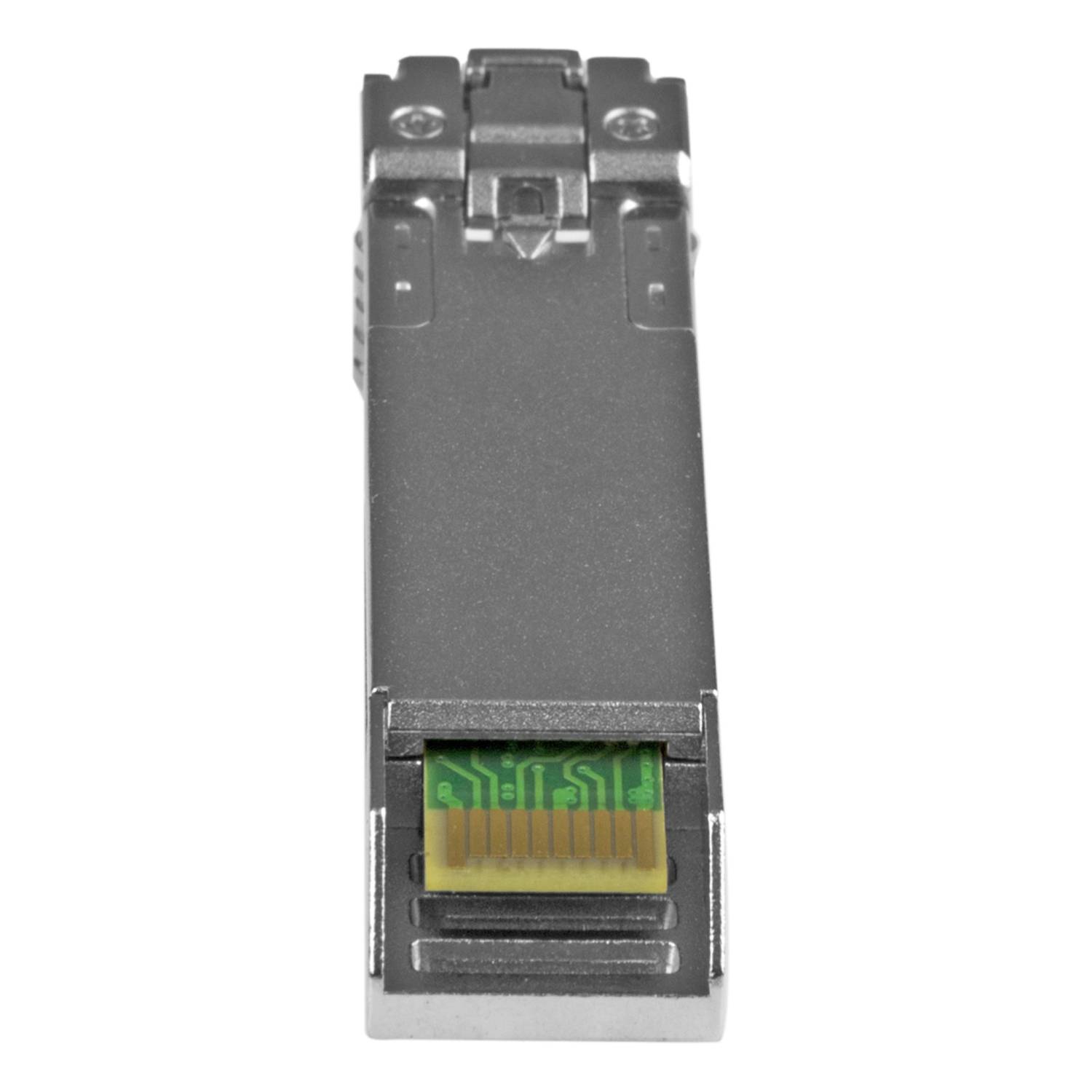

StarTech.com SFP10GLRSTTA Transceiver SFP+ transceiver module 10 GBit/s 10 km Module type LR
EAN:
Part number:
Item no:
Datasheet (PDF)
StarTech.com Cisco SFP-10G-LR compatible SFP+ transceiver module - 10GBASE-LR -
Highlights & Details
- Product type: Transceiver
- Type: Transceiver
- Transfer rate 10 Gbps
Technical specifications
- StarTech.com Cisco SFP-10G-LR compatible SFP+ transceiver module - 10GBASE-LR - SFP+ transceiver module - 10GbE - TAA-compliant
- Device Type : SFP+ Transceiver Module - LC Single Mode
- Form factor : Plug-in module
- Wiring type : 10GBASE-LR
- Data transfer rate : 10 Gbps
- Optical wavelength : 1310 nm
- Data Link Protocol: 10GbE
- Maximum transmission range : 10 km.
- OEM equivalent part number : Cisco SFP-10G-LR
- Dimensions (width x depth x height): 1.33 cm x 5.7 cm x 1 cm
- Weight: 19 g
- TAA compatible : Yes
- Product type
SFP+ transceiver module
- Transfer rate
10 GBit/s
- Interfaces
SFP+
- Module type
LR
- Distances up to
10 km
- LAN transfer rate
10 MBit/s
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3733121 StarTech.com SFP10GLRSTTA Transceiver SFP+ transceiver module 10 GBit/s 10 km Module type LR
User & Safety Instructions
User & Safety Instructions 3733121 StarTech.com SFP10GLRSTTA Transceiver SFP+ transceiver module 10 GBit/s 10 km Module type LR
Description
StarTech.com Cisco SFP-10G-LR compatible SFP+ transceiver module - 10GBASE-LR. SFP transceiver type: Fiber optics, maximum data transfer rate: 10000 Mbps, SFP+ port. Product color: Silver, housing material: Zinc steel, average operating time between failures (MTBF): 1203430 h. Power consumption (standard operation): 1 W. Width: 13.3 mm, depth: 57 mm, height: 10 mm. Number of products included: 1 pieces(s), packing width: 75 mm, packing depth: 122 mm
