StarTech.com USB adapter USB 2.0 RJ45 connector 0.3 m Multicolour incl. LED 1P1FFC-USB-SERIAL
EAN:
Part number:
Item no:
Product type
USB adapter
Cable specs
USB 2.0
Version
Cable
Connections
RJ45 connector
Cable length
0.3 m

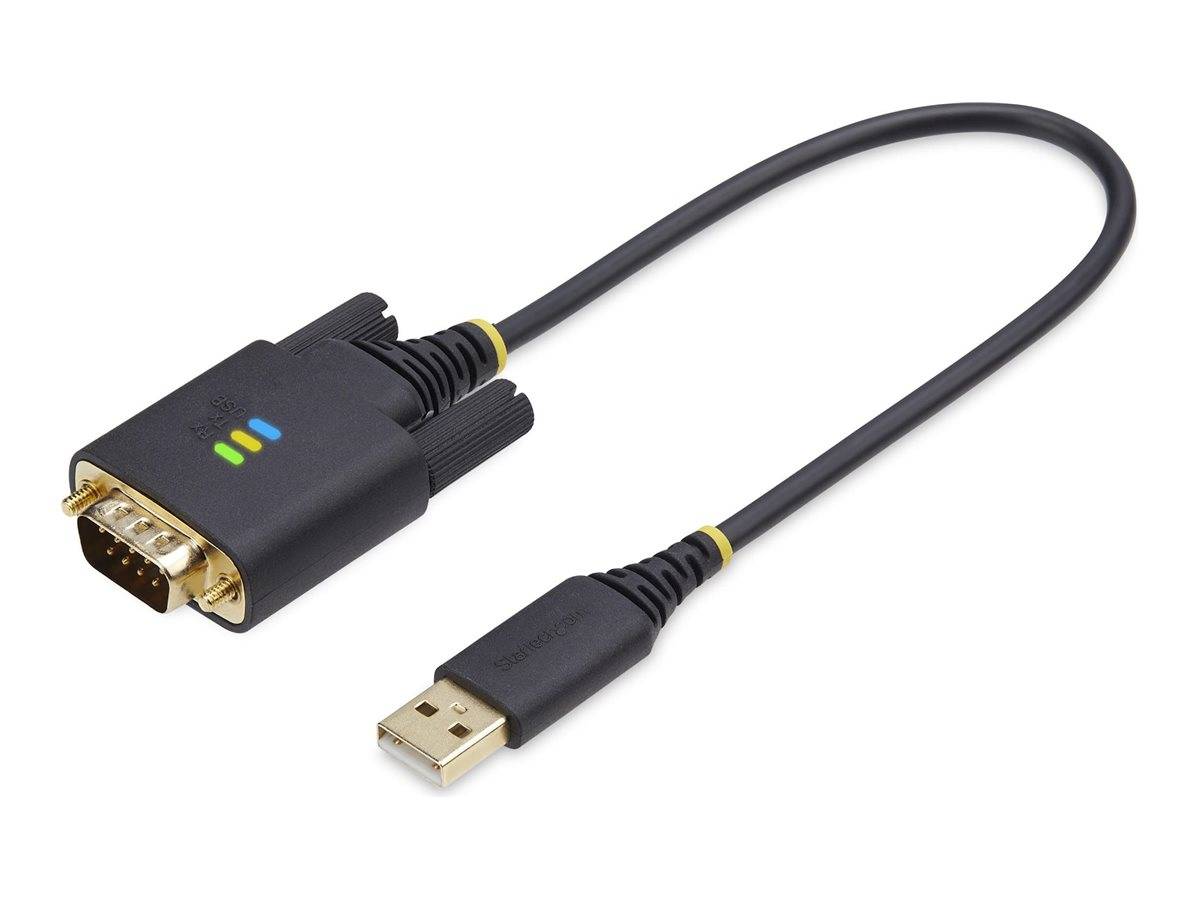

StarTech.com 1ft (30cm) USB to serial adapter cable, COM retention, RS232 - cable USB/serial - USB (M)
Highlights & Details
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to the serial device with the pre-installed DB9 nuts or use DB9 screws to ensure compatibility with serial devices/cables; one DB9 RS-232 port for PC via USB-A
- LED indicators: The Send and Receive LED indicators provide real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully detected by the desktop or laptop
- COMPATIBILITY: Works with Windows, MacOS, ChromeOS and Linux; automatic installation of drivers under Windows 7+, MacOS 10.15+ and Linux; COM retention provides automatic reallocation of the COM port when cable or OS is newly connected/started
- HIGH QUALITY TPE housing and ESD protection of level 4 (15 kV air/8 kV contact) increase reliability and durability; copper shielding minimizes EMI/RFI interference; gold-plated connections; ambient temperature -40°C to 80°C.
- TECHNICAL DATA: 0.3 meters cable length; FTDI FT232R chipset; maximum baud rate: 921.6Kbps; 128 bytes RX and 256 bytes TX FIFO; Odd/Even/Mark/Space/None Parity modes; 7 or 8 data bits; 1 or 2 stop bits
Technical specifications
- StarTech.com 1ft (30cm) USB to serial adapter cable, COM retention, RS232 - cable USB/serial - USB to DB-9 - 30.5 cm
- Type : cable USB / serial
- Technology: Shielded
- Special features : Shaped, robust, EMI/RFI protection, electrostatic discharge protection (ESD), LED status indicator, FTDI FT232R chipset, bus-powered, COM retention
- Cable length: 30.5 cm
- Connection : 4-pin USB Type A - male
- Connector (second end) : D-Sub (DB-9), 9-pin male - screw-in
- Product certificates : USB 2.0 / USB 1.1
- Product type
USB adapter
- Cable specs
USB 2.0
- Version
Cable
- Connections
RJ45 connector
- Factory colour
Multicolour
- Cable length
0.3 m
- Signal flow
Bidirectional (A↔B)
- Cable features
incl. LED
- Connector version
threaded
- Connection type
USB
- Cable type
USB cable
- Type A
USB
- Type B
USB
- Cable use
RS232
Cable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740209 StarTech.com USB adapter USB 2.0 RJ45 connector 0.3 m Multicolour incl. LED 1P1FFC-USB-SERIAL
Description
StarTech.com 30cm USB to serial adapter, COM retention, FTDI, USB-A to DB9 cable, USB to RS232, changeable screws/nuts, ESD protection, Windows/MacOS/Linux. Product color: Black, cable length: 0.3 m, connector 1: USB type A. Quantity per pack: 1 pieces(s), packing width: 220 mm, packing depth: 300 mm. Weight: 30 g. Width of shipping box: 600 mm, length of shipping box: 485 mm, height of shipping box: 345 mm
Extend a laptop or desktop by a serial RS232 connection via a free USB-A connection
Expand the serial RS-232 communication from USB-A-capable data devices (DTE - e.g. desktop or laptop) with this 30 cm long USB to serial adapter cable.
Extension of serial interface<>
The USB serial adapter extends a desktop or laptop by a serial RS-232 DB/DE-9 (male) connection via a USB Type-A port. Attach the adapter to a serial device with the pre-installed and removable DB9 nuts or install the included D-Sub knurled screws for compatibility with other serial peripherals or cables.
LED indicators
The LED data transfer and reception indicators on the adapter enable real-time monitoring of port activity. The USB light indicates when the adapter successfully logs on to the desktop or laptop. All LEDs help with diagnosis and troubleshooting.
Seamless connectivity
The adapter is compatible with Windows, MacOS, ChromeOS and Linux. The drivers are installed automatically for Windows 7 and later versions, MacOS 10.15 and later as well as Linux. The USB to RS-232 Adapter has a COM retention that automatically reallocates the value of the COM port when the cable is disconnected and reconnected, or when the system is rebooted.
Built for the future<>
The robust TPE construction and ESD protection of level 4 (15kV air and 8kV contact) increase the reliability and longevity of the USB to the serial adapter. The copper shielding minimizes electromagnetic and high-frequency interference (EMI and RFI). Gold-plated connectors improve the signal conductivity.
The StarTech.com Advantage
This text is machine translated.
Extend a laptop or desktop by a serial RS232 connection via a free USB-A connection
Expand the serial RS-232 communication from USB-A-capable data devices (DTE - e.g. desktop or laptop) with this 30 cm long USB to serial adapter cable.
Extension of serial interface<>
The USB serial adapter extends a desktop or laptop by a serial RS-232 DB/DE-9 (male) connection via a USB Type-A port. Attach the adapter to a serial device with the pre-installed and removable DB9 nuts or install the included D-Sub knurled screws for compatibility with other serial peripherals or cables.
LED indicators
The LED data transfer and reception indicators on the adapter enable real-time monitoring of port activity. The USB light indicates when the adapter successfully logs on to the desktop or laptop. All LEDs help with diagnosis and troubleshooting.
Seamless connectivity
The adapter is compatible with Windows, MacOS, ChromeOS and Linux. The drivers are installed automatically for Windows 7 and later versions, MacOS 10.15 and later as well as Linux. The USB to RS-232 Adapter has a COM retention that automatically reallocates the value of the COM port when the cable is disconnected and reconnected, or when the system is rebooted.
Built for the future<>
The robust TPE construction and ESD protection of level 4 (15kV air and 8kV contact) increase the reliability and longevity of the USB to the serial adapter. The copper shielding minimizes electromagnetic and high-frequency interference (EMI and RFI). Gold-plated connectors improve the signal conductivity.
The StarTech.com Advantage
This text is machine translated.
Features
- StarTech.com 1ft (30cm) USB to serial adapter cable, COM retention, RS232 - cable USB/serial - USB to DB-9 - 30.5 cm
- Type : cable USB / serial
- Technology: Shielded
- Special notes : Rugged, molded, FTDI FT232R chipset, electrostatic discharge protection (ESD), LED status indicator, EMI/RFI protection, COM retention, bus-operated
- Length : 30.5 cm
- Connection : 4-pin USB Type A - male
- Connector (second end) : D-Sub (DB-9), 9-pin male - screw-in
- Product certificates : USB 2.0 / USB 1.1
