StarTech.com USB adapter USB-C® plug 2 m Multicolour 1P6FFCN-USB-SERIAL
EAN:
Part number:
Item no:
Product type
USB adapter
Version
Cable
Connections
USB-C® plug
Cable length
2 m
Factory colour
Multicolour
StarTech.com 6.6ft/2m USB to zero modem Serial Adapter Cable, FTDI, RS232 - cable USB / serial - USB (M)
Highlights & Details
- INTERCHANGEABLE SCREWS & nuts: Attach the adapter to serial device with the pre-installed screws or use the incl. nuts for compatibility with serial peripherals/cables; RS-232 connection via USB-A port

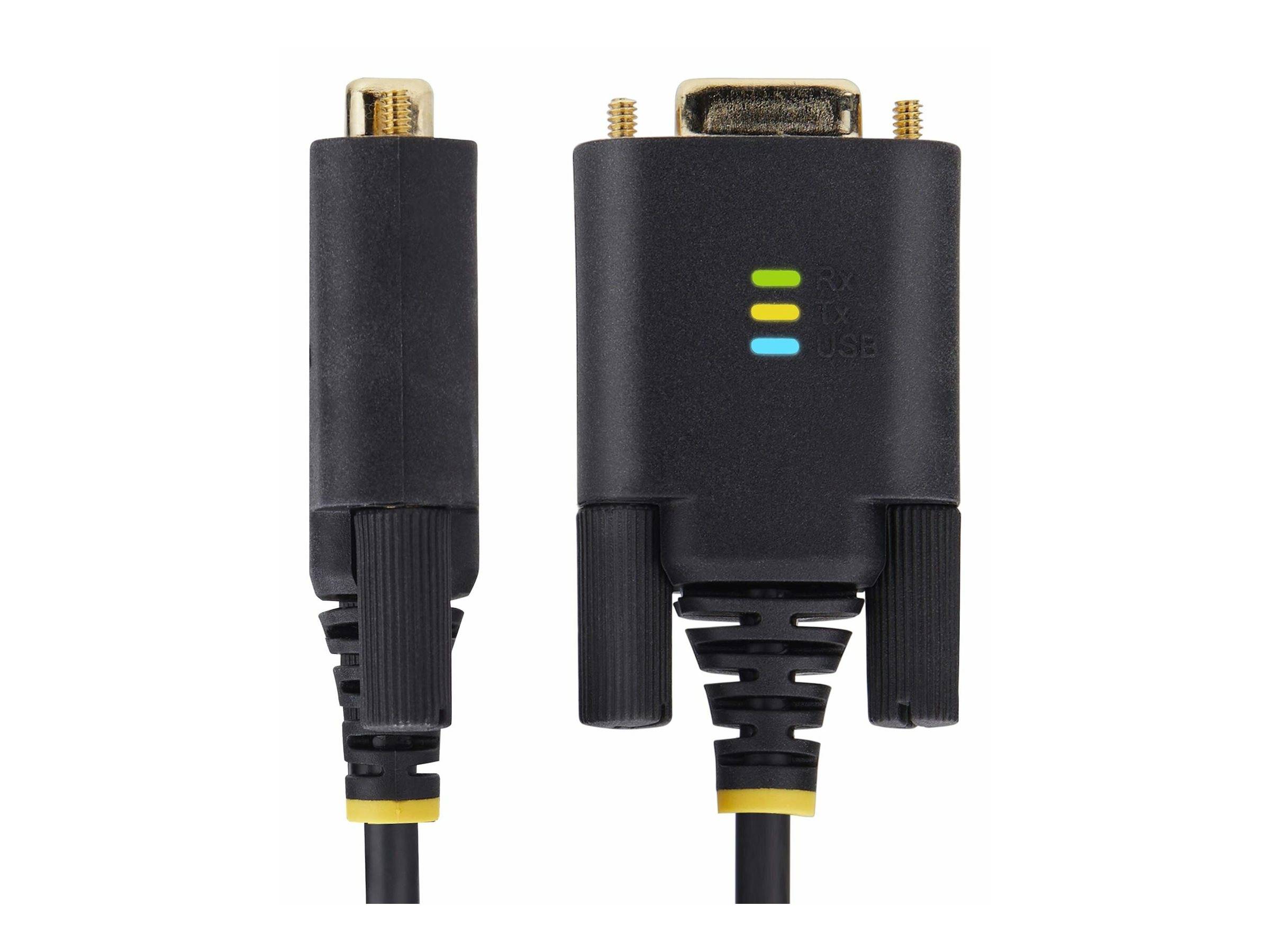

- LED indicators: The Send and Receive LED indicators provide real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully detected by the desktop or laptop
- COMPATIBILITY: Works with Windows, MacOS, ChromeOS and Linux; automatic driver installation on Windows 7+, MacOS 10.15+ and Linux; COM retention provides automatic reassignment of COM ports; clearing DCE/DTE conflicts without cross-cables/adapters
- HIGH QUALITY TPE housing and ESD protection of level 4 (15 kV air/8 kV contact) increase reliability and durability; copper shielding minimizes EMI/RFI interference; gold-plated connections; ambient temperature -40°C to 80°C.
- TECHNICAL DATA: 2 meters cable length; FTDI FT232R chipset; maximum baud rate: 921.6Kbps; 128 bytes RX and 256 bytes TX FIFO; Odd/Even/Mark/Space/None Parity modes; 7 or 8 data bits; 1 or 2 stop bits
Technical specifications
- For DB-9 (M) - 2 m - black
- Product type
USB adapter
- Version
Cable
- Connections
USB-C® plug
- Factory colour
Multicolour
- Cable length
2 m
- Connection type
USB
- Type A
USB
- Type B
USB
- Cable use
RS232
Cable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740221 StarTech.com USB adapter USB-C® plug 2 m Multicolour 1P6FFCN-USB-SERIAL
Description

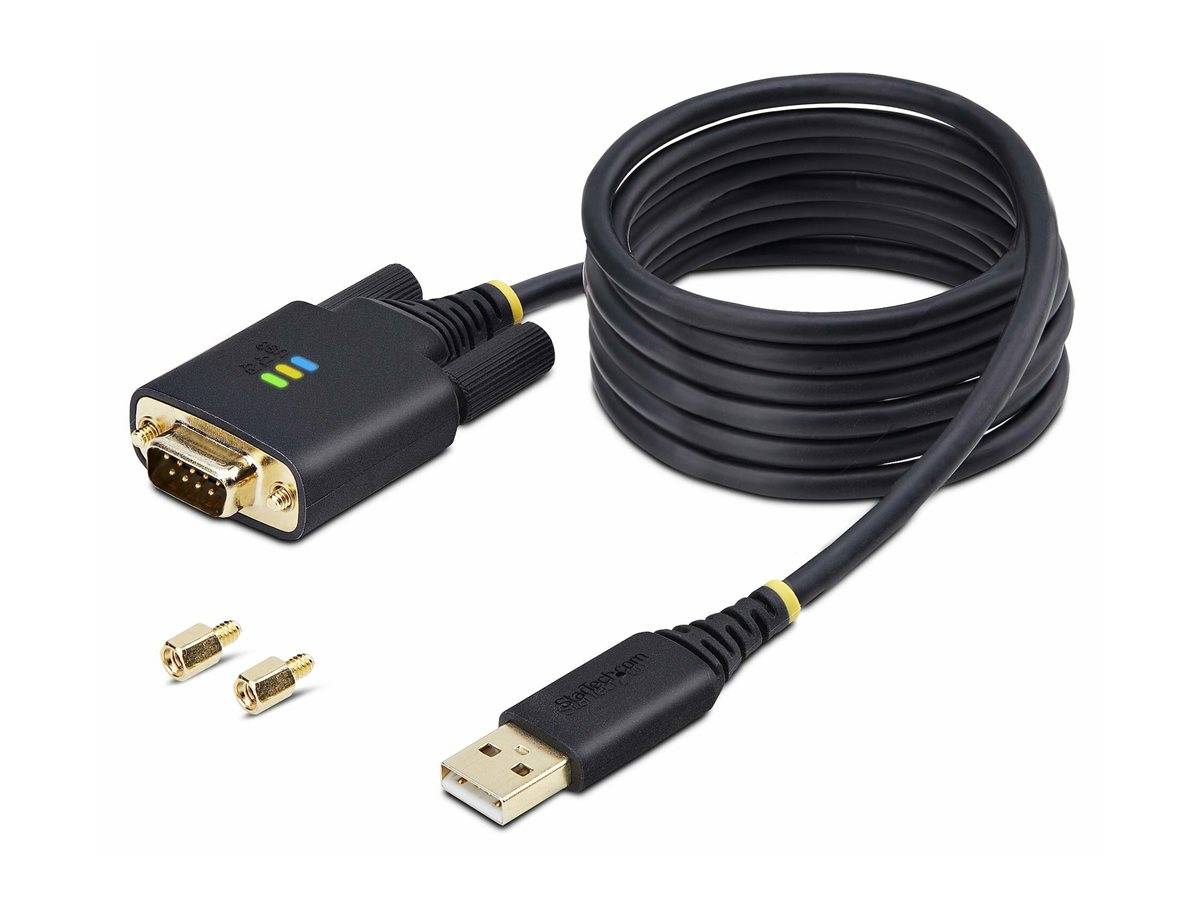

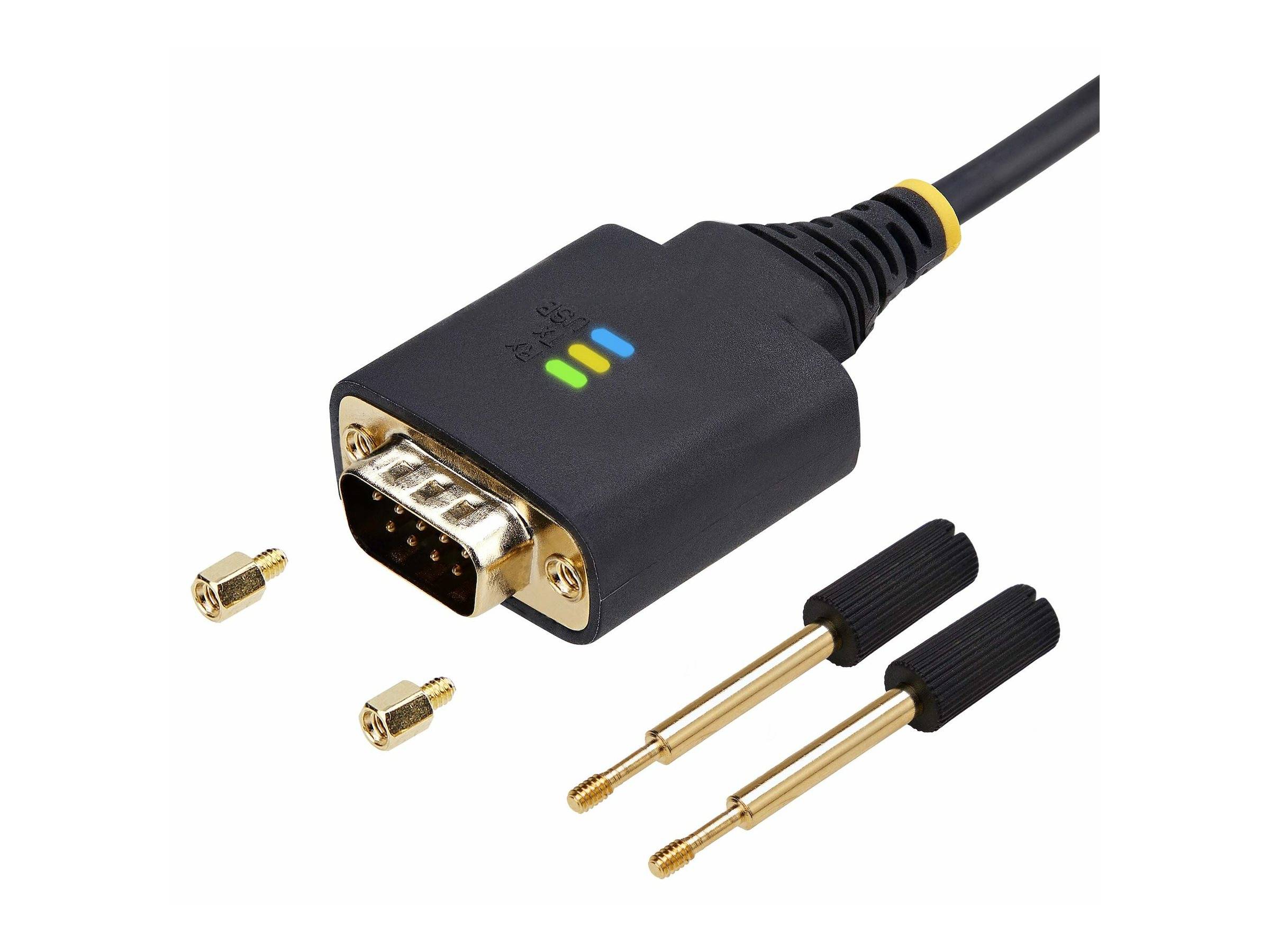

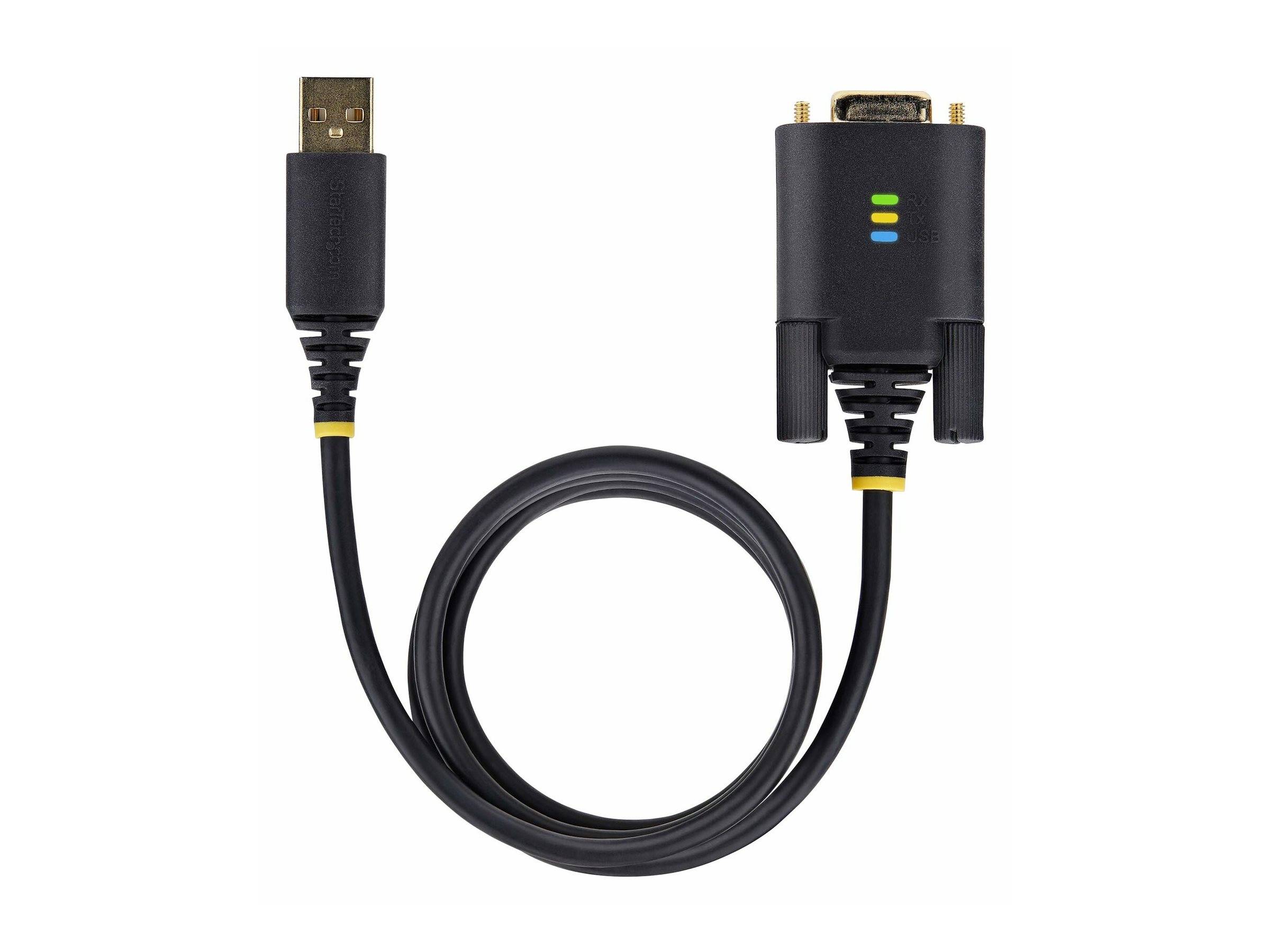

The 2-meter (6.6-foot) long zero modem USB serial adapter extends a desktop or laptop by a serial RS-232 DB/DE-9 (female) connection via a USB type-A port. Attach the adapter to a serial device using the pre-installed and removable slotted D-Sub knurled screws or install the supplied DB-9 nuts for compatibility with other serial peripherals or cables. The data transfer and receive LED indicators on the adapter provide real-time monitoring of port activity. The USB light indicates when the adapter successfully logs on to the desktop or laptop. All LEDs help with diagnosis and troubleshooting. The adapter is compatible with Windows, MacOS, ChromeOS and Linux. The drivers are installed automatically for Windows 7 and later versions, MacOS 10.15 and later as well as Linux. The USB to RS-232 Adapter has a COM retention that automatically reallocates the COM port value when the cable is disconnected and reconnected, or when the system is rebooted. The robust TPE construction and ESD protection of level 4 (15 kV air and 8 kV contact) increase the reliability and longevity of the USB to the serial adapter. The copper shielding minimizes electromagnetic and high-frequency interference (EMI and RFI). Gold-plated connectors improve the signal conductivity.
This text is machine translated.
This text is machine translated.
Features
- StarTech.com 6.6ft/2m USB to zero modem Serial Adapter Cable, FTDI, RS232 - cable USB / serial - USB to DB-9 - 2 m
- Type : cable USB / serial
- Special notes : FTDI controller, EMI/RFI protection, bus-operated, electrostatic discharge protection (ESD), LED status indicator, TPE-connector casing, 921.6 Kbps data rate
- Length : 2 meters
- Connection : 4-pin USB Type A - male
- Connector (second end) : D-Sub (DB-9), 9-pin male
- Product certificates : USB / USB 2.0
- Colour: black
