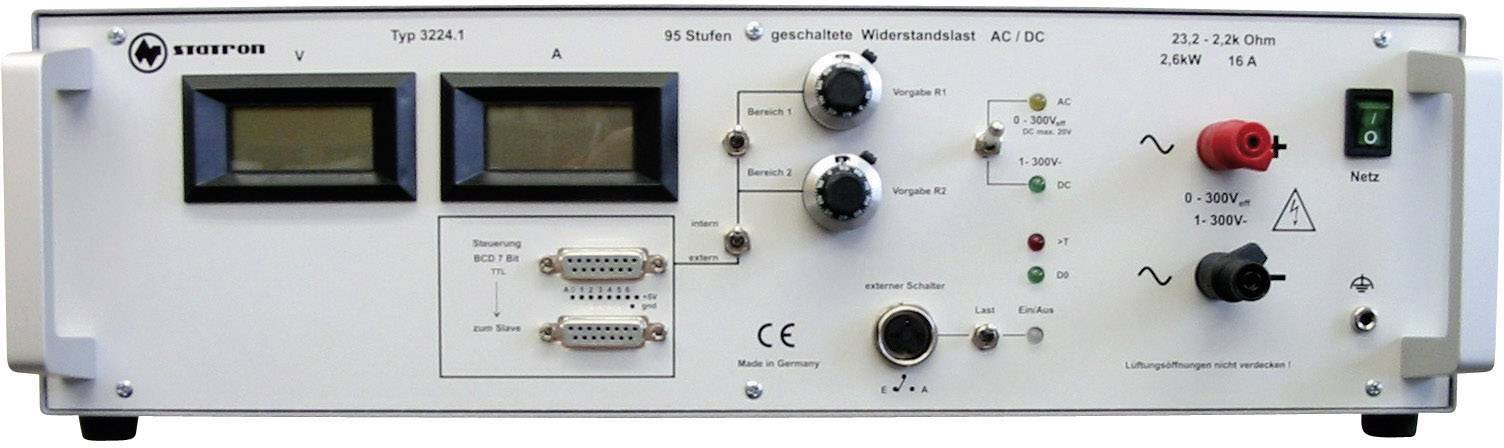

Statron 3224.1 Electrical load 300 V DC 13 A 2200 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,617.65 / piece)
€ 2,617.65
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Switched load type 3224.1 for DC and AC voltages
- N/A
- N/A
- N/A
- AC and DC mode
- Locking of DC in AC mode
Technical specifications
- Load resistance: 23,15 - 2200 Ω
- AC load voltage: 0 - 260 V/AC
- Type
3224.1
- Load input current (max.)
13 A
- Max. non-stop power rating
2200 W
- Dim
(W x H x D) 445 x 134 x 450 mm
- Weight
18 kg
- Depth
450 mm
- Height
134 mm
- Width
445 mm
Manufacturer's standards (no certificate)
- Load connection
Screw terminals (front)
- Non-stop power rating
0 W
- Min. load input current
0 A
- Max. input voltage
300 V DC
- Load input voltage (min.)
1 V DC
- Input voltage
230 V AC
- Product type
Electrical load
Documents & Downloads
Datasheet
Datasheet 512905 Statron 3224.1 Electrical load 300 V DC 13 A 2200 W
User & Safety Instructions
User & Safety Instructions 512905 Statron 3224.1 Electrical load 300 V DC 13 A 2200 W
Description
For use, for example, in industry, research, training for testing power supplies, components and power end stages. The switched resistance load allows an ohmic load of AC or DC voltage sources. The 95-step resistance setting is performed internally using a potentiometer or externally via a parallel 7-bit TTL interface.
Features
- AC/DC switchable (locking of DC in AC mode)
- 95-step adjustment via helipot
- External adjustment via parallel 7-bit TTL interface
- Temperature-regulated fan control
- Load connection via 4 mm safety sockets
- Protective functions: Reverse polarity protection, overtemperature protection.
