Buy Statron 5359.3 Bench PSU (adjustable voltage) 2 - 14 V AC 5 A 75 W No. of outputs 2 x

An AC/DC power supply from 2 to 14V, 5A. It displays voltage settings, a power switch, and connections for DC outputs.

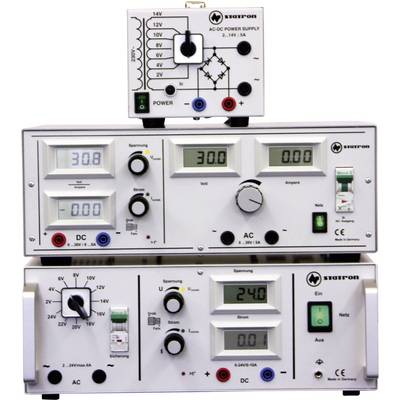

'Three electronic devices for voltage and current supply, with digital displays for volts and amperes, adjustment knobs, and power switches.'

1/2

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 242.86 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Universal-lab SMPS 5359.3

No. of outputs 2 xOutputs
Linear
No. of outputs 2 x
- Output 1
- Output 1
2 - 14 V DC / 5 A
75 W
Type (misc.): Bench
For school and Training sectors
Standards EN 61010 and 60950
Outputs galvanic isolated and floating

Technical specifications

Type: 5359.3

No. of outputs: 2 x

: 75 W

Technology: Linear regulated PSU

Dim: (W x H x D) 140 x 130 x 210 mm

Weight: 3 kg

Output current 1: 5 A

Output current 2: 5 A

Depth: 210 mm

Height: 130 mm

Width: 140 mm

: Manufacturer's standards (no certificate)

Type: Bench

Output current 2 (max.): 5 A

Output current 2 (min.): 5 A

Max. output current: 5 A

Output current (min.): 5 A

Output voltage 2 (max.): 14 V DC

Output voltage 2 (min.): 2 V DC

Output voltage (max.): 14 V AC

Output voltage (min.): 2 V AC

: 75 W

Connections: 4x Safety connectors

Type: Linear

Input voltage: 230 V AC

Output voltage 1: 2 - 14 V AC

Output voltage 2: 2 - 14 V DC

Product type: Bench PSU (adjustable voltage)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511936 Statron 5359.3 Bench PSU (adjustable voltage) 2 - 14 V AC 5 A 75 W No. of outputs 2 x

Information

Information 511936 Statron 5359.3 Bench PSU (adjustable voltage) 2 - 14 V AC 5 A 75 W No. of outputs 2 x

Conformity certificate

Conformity certificate 511936 Statron 5359.3 Bench PSU (adjustable voltage) 2 - 14 V AC 5 A 75 W No. of outputs 2 x

Description

The Statron universal power supplies are, by their compact design and superior price-performance ratio, recommended especially in education and training sector. The switchable voltage 2 to 24 V can be taken at a separate safety sockets as well as AC voltage or via the built-in bridge rectifier as a DC voltage. The security is ensured through compliance with the standards EN 61010 and 60950.
