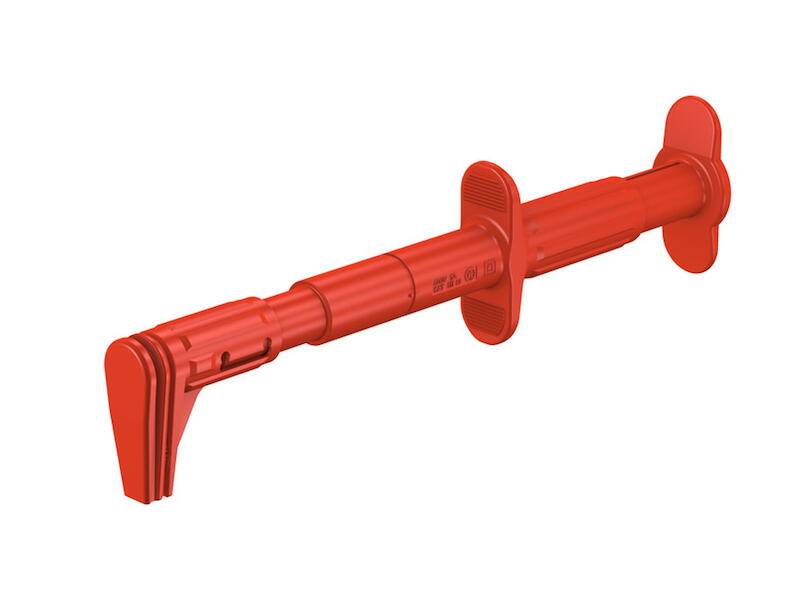

Stäubli GRIP-F Safety terminal 4 mm jack connector CAT III 600 V Red
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
4 mm safety flat test clip Grip-F
- 4 mm
Technical specifications
- Product type
Safety terminal
- Connection
4 mm jack connector
- Clamping range diameter mm
30 mm
- Max. clamping range
30 mm
- Factory colour
Red
- Nominal voltage
600 V
- Reading category
CAT III 600 V
- Jack diameter
4 mm
- Content
1 pc(s)
- Nominal current
5 A
- Temperature range
-40 - +80 °C
- Type
GRIP-F
- Nominal current (details)
5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 121068 Stäubli GRIP-F Safety terminal 4 mm jack connector CAT III 600 V Red
User & Safety Instructions
User & Safety Instructions 121068 Stäubli GRIP-F Safety terminal 4 mm jack connector CAT III 600 V Red
Information
Information 121068 Stäubli GRIP-F Safety terminal 4 mm jack connector CAT III 600 V Red
Description
Safety flat test clip for quick and safe contact for voltage measurements. With adjustable stop. Axial grip for 4 mm safety sockets for use with all 4 mm spring-loaded plugs.
