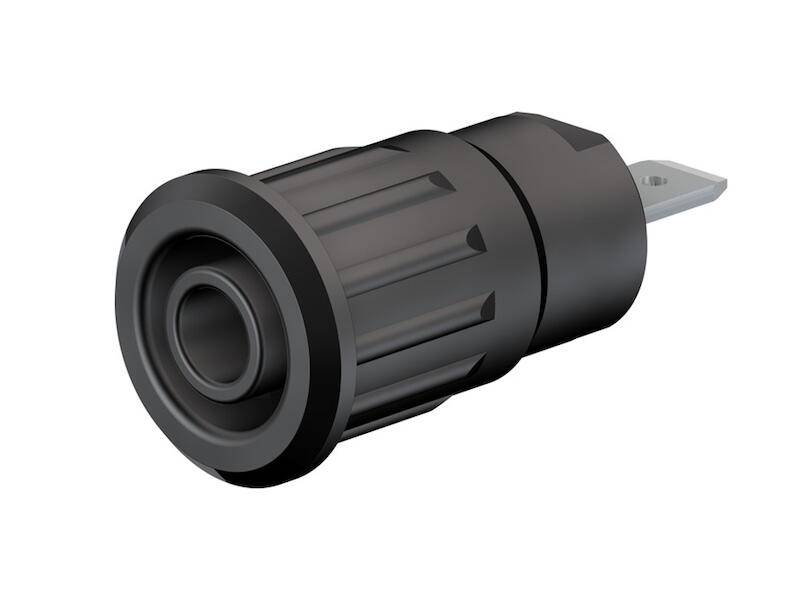

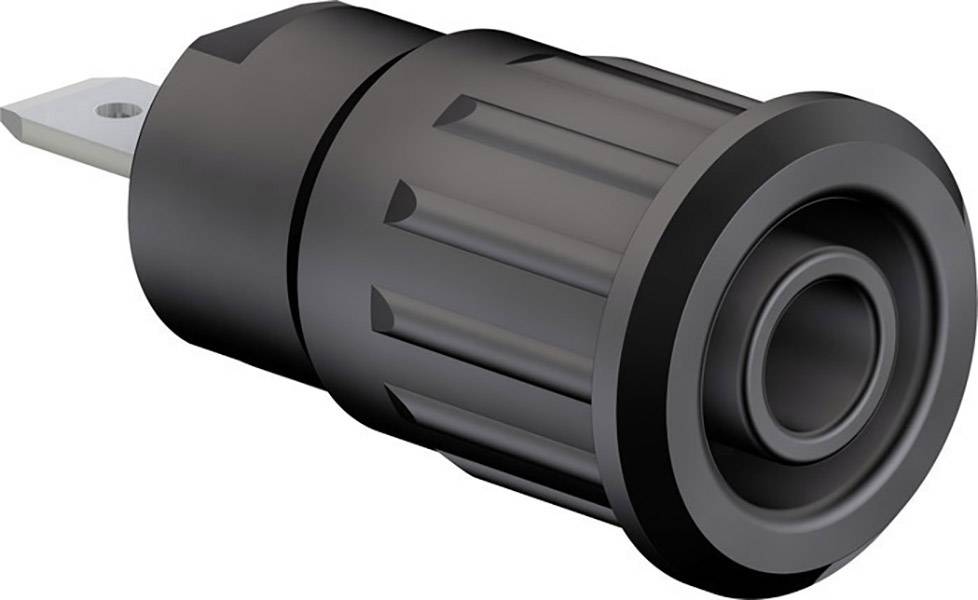

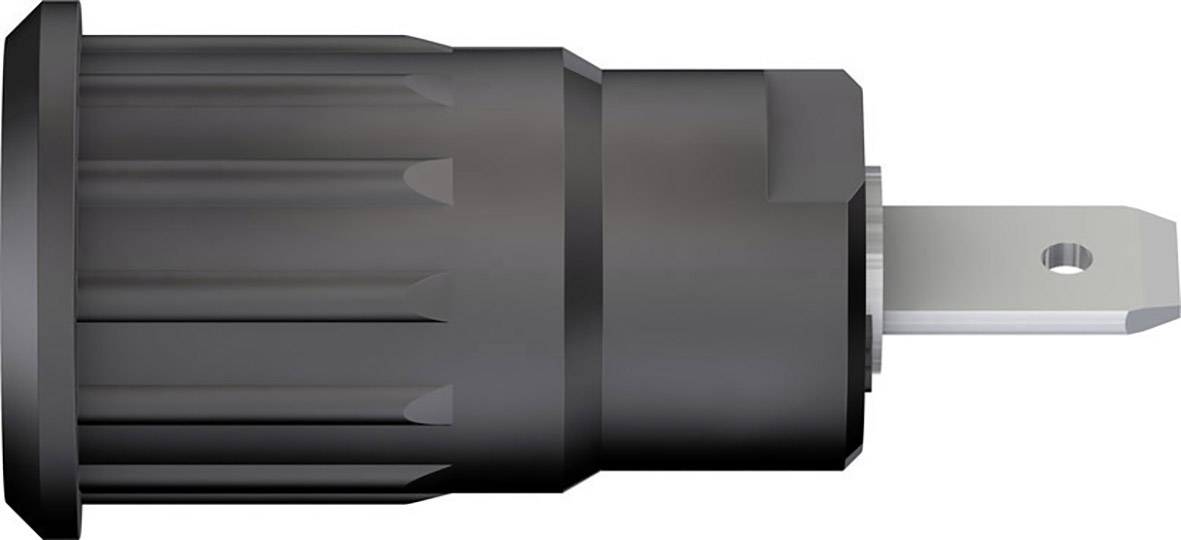

Stäubli SEB4-F/N Safety jack socket Socket, built-in Pin diameter: 4 mm Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety jack socket
Connector type
Socket, built-in
Pin Ø
4 mm
Connection
Type C CEE 7/16 plug 4.8 mm
Datasheet (PDF)
Highlights & Details
Safety press fit socket SEB4-F/N
- 24 A Black
Technical specifications
- Packaging type
Piece
- Product type
Safety jack socket
- Connector type
Socket, built-in
- Pin Ø
4 mm
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
Type C CEE 7/16 plug 4.8 mm
- Factory colour
Black
- Insulation type
Insulated
- Manufacturer part #
49.7079-21
- Type
SEB4-F/N

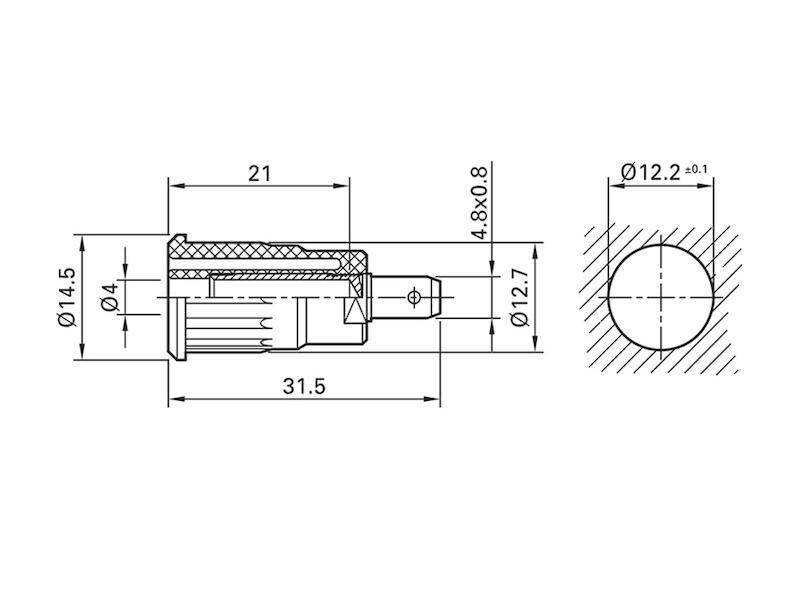

- Dim
(Ø x L) 14.5 mm x 31.5 mm
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
Brass
- Contact material
Nickel plated
- Dimensions
4 mm
- Nominal voltage
1000 V
- Length
31.5 mm
- (Ø)
14.5 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1678328 Stäubli SEB4-F/N Safety jack socket Socket, built-in Pin diameter: 4 mm Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1678328 Stäubli SEB4-F/N Safety jack socket Socket, built-in Pin diameter: 4 mm Black 1 pc(s) Piece
Description
Insulated, rigid Ø 4 mm, suitable for accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass rotating part. By pressing into mounting holes of plates or housings made of plastic, metal etc. connection over flat connector.
