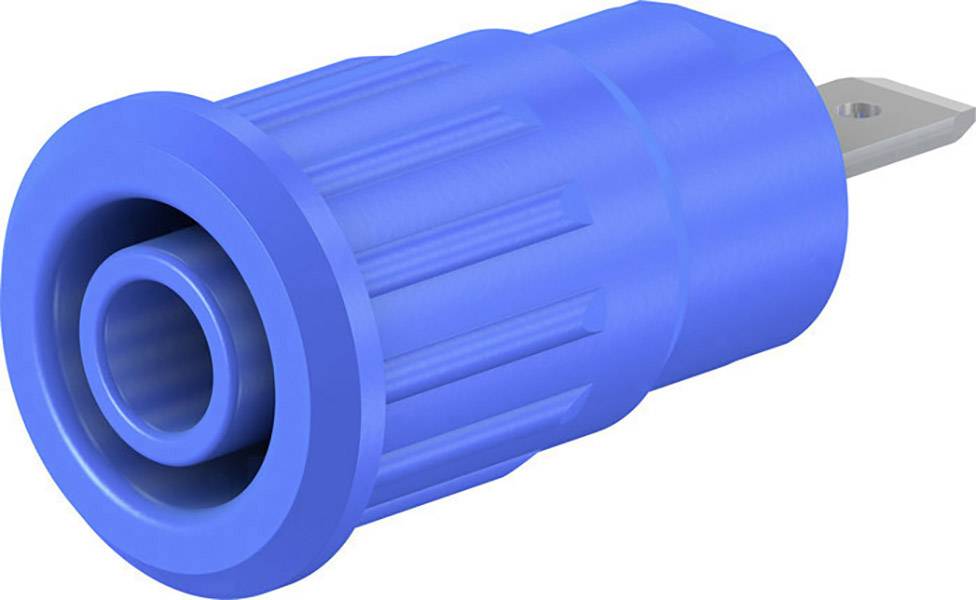

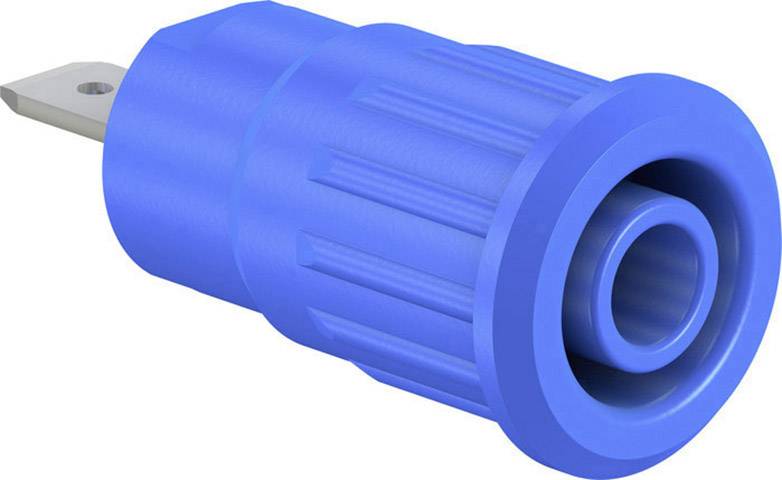

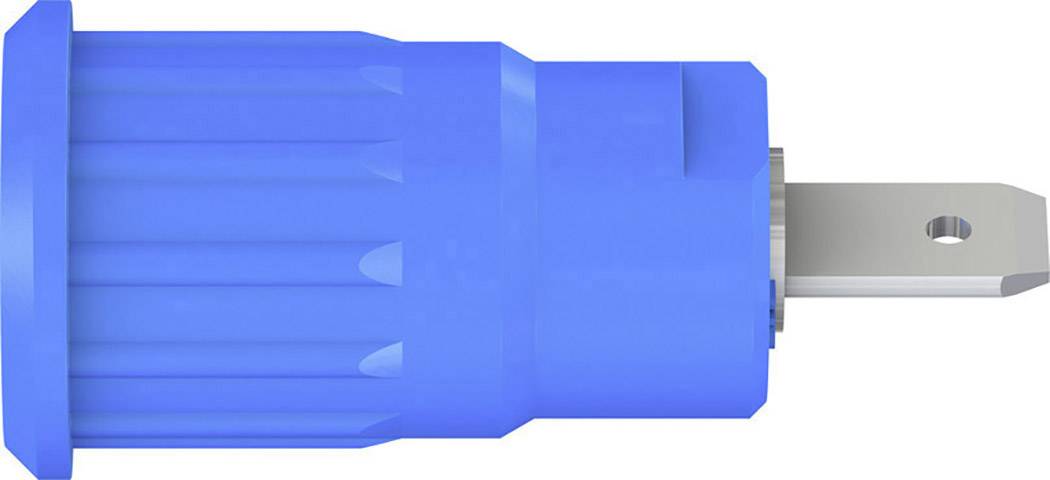

Stäubli SEB4-F/N Safety jack socket Socket, built-in Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Safety jack socket
Connector type
Socket, built-in
Connection
Type C CEE 7/16 plug 4.8 mm
Nominal current
24 A
Nominal current - rounded value
24 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Highlights & Details
Safety press fit socket SEB4-F/N
- 24 A Blue
Technical specifications
- Product type
Safety jack socket
- Connector type
Socket, built-in
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
Type C CEE 7/16 plug 4.8 mm
- Factory colour
Blue
- Insulation type
Insulated
- Manufacturer part #
49.7079-23
- Type
SEB4-F/N
- Dim
(Ø x L) 14.5 mm x 31.5 mm
- Jack diameter
4 mm
- Content
1 pc(s)
- Contact material
Nickel plated
- Nominal voltage
1000 V
- Length
31.5 mm
- (Ø)
14.5 mm
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1678330 Stäubli SEB4-F/N Safety jack socket Socket, built-in Blue 1 pc(s)
Description
Insulated, rigid Ø 4 mm, suitable for accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass rotating part. By pressing into mounting holes of plates or housings made of plastic, metal etc. connection over flat connector.
