Stäubli SKK-200 RT Safety terminal 2 mm jack connector CAT III 600 V Red
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
2 mm safety clip terminal - red
- 2 mm
Technical specifications
- Product type
Safety terminal
- Connection
2 mm jack connector
- Clamping range diameter mm
6 mm
- Max. clamping range
6 mm
- Factory colour
Red
- Nominal voltage
600 V
- Reading category
CAT III 600 V
- Jack diameter
2 mm

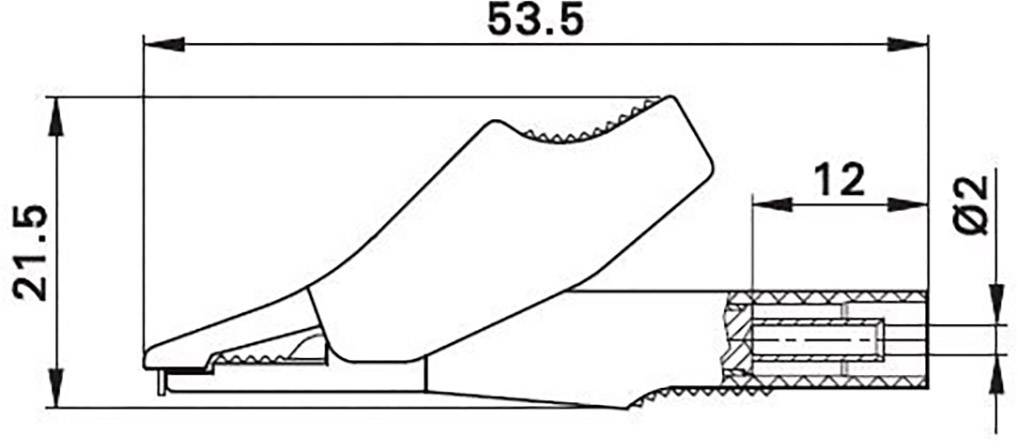

- Length
54 mm
- Tip material
Nickel-plated brass
- Content
1 pc(s)
- Nominal current
10 A
- Shaft length
12 mm
- Temperature range
-40 to +80 °C
- Type
SKK-200 RT
Documents & Downloads
Datasheet
Datasheet 122076 Stäubli SKK-200 RT Safety terminal 2 mm jack connector CAT III 600 V Red
User & Safety Instructions
User & Safety Instructions 122076 Stäubli SKK-200 RT Safety terminal 2 mm jack connector CAT III 600 V Red
Information
Information 122076 Stäubli SKK-200 RT Safety terminal 2 mm jack connector CAT III 600 V Red
Description

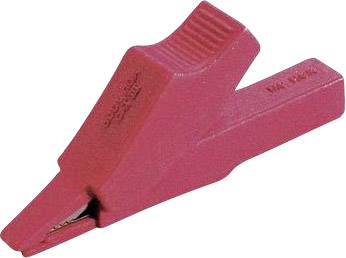

Safety alligator clips with all-round insulation, toothed jaws with surface for fine wires. For attaching to 2 mm safety test leads and all springing 2 mm connector.
