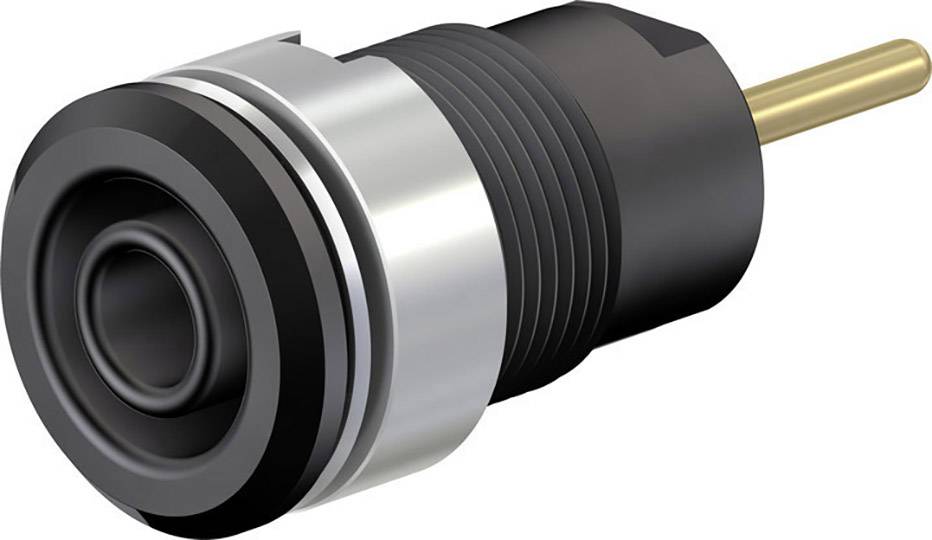

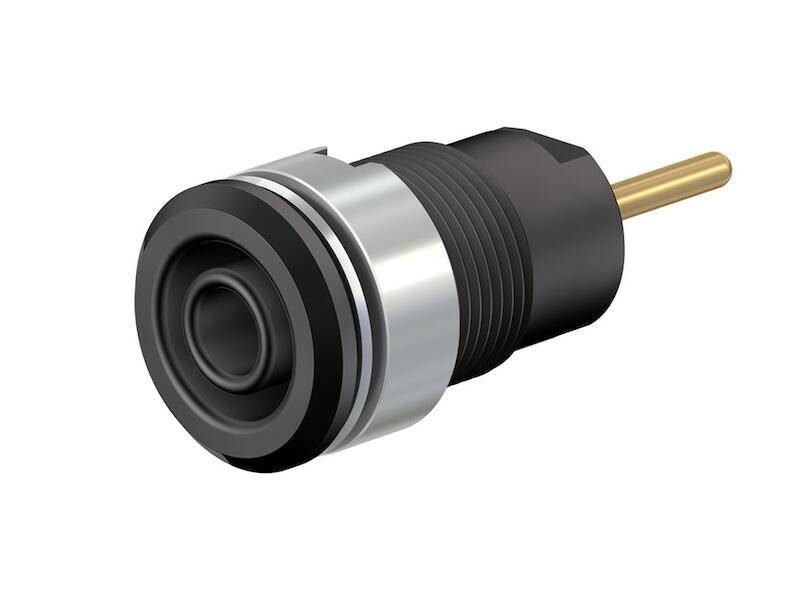

Stäubli SLB4-R Safety jack socket Socket, built-in Pin diameter: 4 mm Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety jack socket
Connector type
Socket, built-in
Pin Ø
4 mm
Connection
Soldering
1.9 mm jack
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
Highlights & Details
Safety panel-mounted socket SLB4-R
- 24 A Black
Technical specifications
- Packaging type
Piece
- Product type
Safety jack socket
- Connector type
Socket, built-in
- Pin Ø
4 mm
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
Soldering
1.9 mm jack
- Factory colour
Black
- Insulation type
Insulated
- Manufacturer part #
23.3010-21
- Type
SLB4-R
- Dim
(Ø x L) 14.5 mm x 35.5 mm
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
Brass
- Contact material
Gold plated
- Nominal voltage
1000 V
- Length
35.5 mm
- (Ø)
14.5 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1678322 Stäubli SLB4-R Safety jack socket Socket, built-in Pin diameter: 4 mm Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1678322 Stäubli SLB4-R Safety jack socket Socket, built-in Pin diameter: 4 mm Black 1 pc(s) Piece
Description
Insulated, rigid Ø 4 mm, suitable for accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass rotating part. Mounting by bolting in drillings of plates or housings made of plastic, metal, etc.
