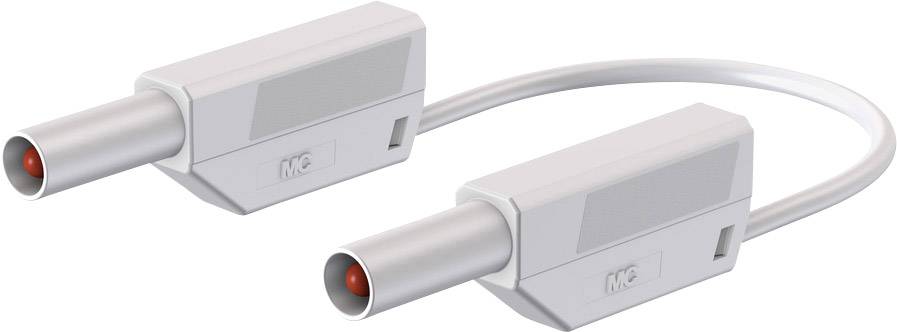

Stäubli SLK425-E/N Safety test lead Banana jack 4 mm Banana jack 4 mm 1.00 m White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
1000 V safety test lead, type SLK 425-E/N
- CAT II 1000 V, CAT III 600 V
- Cable length 1.00 m
- Cable cross section 2.5 mm²
- White
Technical specifications
- Product type
Safety test lead
- Type A
Banana jack 4 mm
- Type B
Banana jack 4 mm
- Cable length
1.00 m
- Factory colour
White
- Plug features
Scoop-proof
Nestable
- Material
PVC
- Cable cross section
2.5 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm stackable safety plug
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Jack diameter
4 mm
- Contact material
Ni
- Reading category
CAT II 1000 V
CAT III 600 V
- Type
SLK425-E/N
Documents & Downloads
Datasheet
Datasheet 1556671 Stäubli SLK425-E/N Safety test lead Banana jack 4 mm Banana jack 4 mm 1.00 m White 1 pc(s)
Conformity certificate
Conformity certificate 1556671 Stäubli SLK425-E/N Safety test lead Banana jack 4 mm Banana jack 4 mm 1.00 m White 1 pc(s)
Description
PVC safety test lead for measuring tasks to the measurement category CAT III 600 V. contact-protected plug connector with rigid protective sleeve.
This text is machine translated.
This text is machine translated.
Features
- Highly flexible PVC test lead
- Rigid insulating sleeve
- Stackable Laboratory-plug-in connector.
