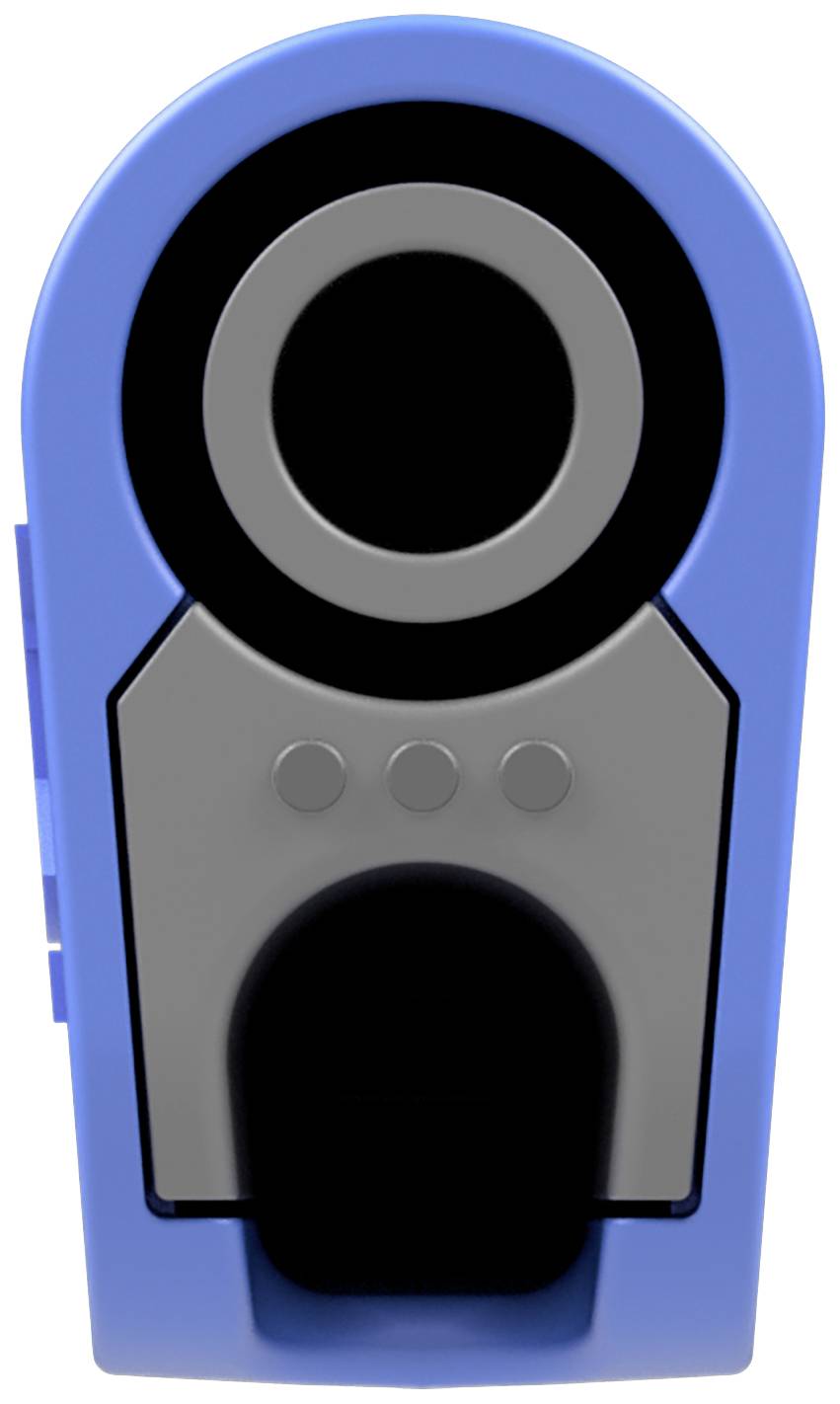

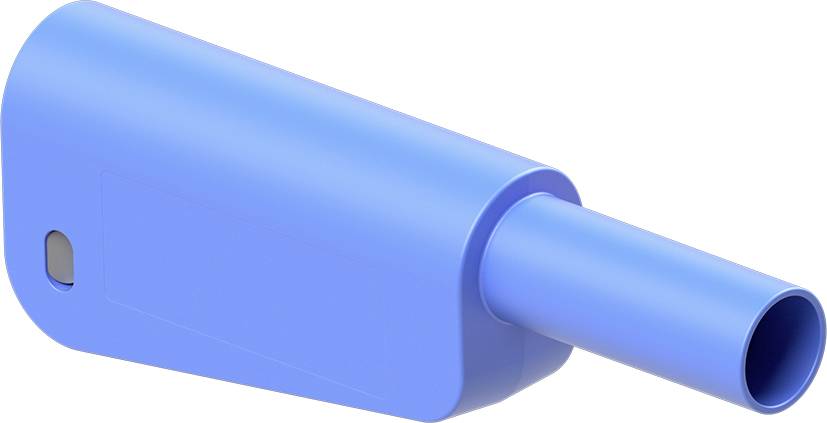

Stäubli SLQ-4A-46 Straight blade safety plug Plug Pin diameter: 4 mm Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade safety plug
Connector type
Plug
Pin Ø
4 mm
Nominal current
32 A
Nominal current - rounded value
32 A
Datasheet (PDF)
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
Highlights & Details
4 mm single plug completely blue
- 32 A Blue
Technical specifications
- Product type
Straight blade safety plug
- Connector type
Plug
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Factory colour
Blue
- Manufacturer part #
66.2023-23
- Type
SLQ-4A-46
- Dim
(Ø) 4.6 mm
- Content
1 pc(s)
- Contact material
CuZn
- Nominal voltage
1000 V
600 V
- (Ø)
4.6 mm
- Type
SLQ-4A-46
Documents & Downloads
Datasheet
Datasheet 2788361 Stäubli SLQ-4A-46 Straight blade safety plug Plug Pin diameter: 4 mm Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2788361 Stäubli SLQ-4A-46 Straight blade safety plug Plug Pin diameter: 4 mm Blue 1 pc(s)
Description
Stackable, Ø 4 mm, with springed MULTI-LAM, for the self-mounting of measurement leads. With rigid insulation sleeve. Nickel-plated version. Cross-hole for soldering connection.
