Stäubli SLQ-4A-46 Straight blade safety plug Plug Pin diameter: 4 mm Violet 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Straight blade safety plug
Connector type
Plug
Pin Ø
4 mm
Connection
4 mm plug
Datasheet (PDF)
Highlights & Details

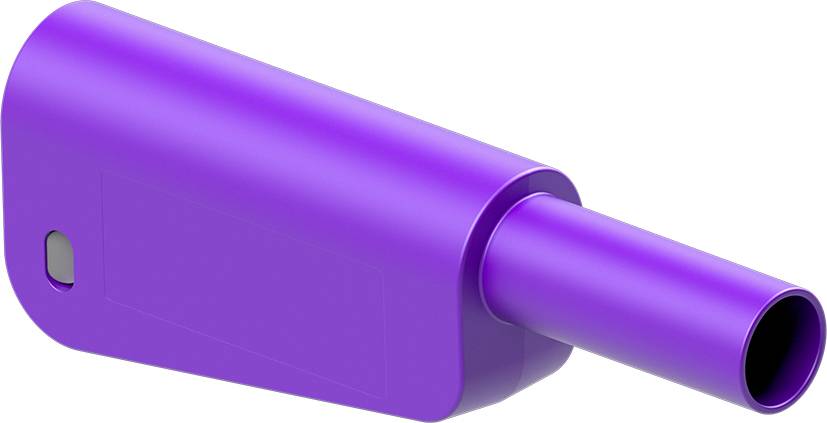

4 mm single plug completely violet
- 32 A Violet
Technical specifications
- Packaging type
Piece
- Product type
Straight blade safety plug
- Connector type
Plug
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
4 mm plug
- Factory colour
Violet
- Manufacturer part #
66.2023-26
- Type
SLQ-4A-46

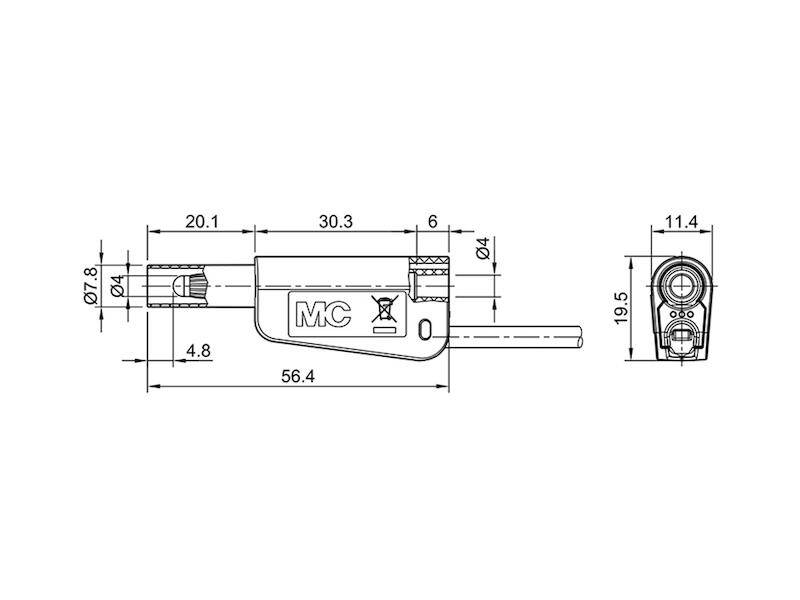

- Dim
(Ø) 4.6 mm
- Scoop-proof
Yes
- Content
1 pc(s)
- Insulation material
Gold plated
- Contact material
CuZn
- Dimensions
4 mm
- Nominal voltage
1000 V
600 V
- (Ø)
4.6 mm
- Type
SLQ-4A-46
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2788367 Stäubli SLQ-4A-46 Straight blade safety plug Plug Pin diameter: 4 mm Violet 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2788367 Stäubli SLQ-4A-46 Straight blade safety plug Plug Pin diameter: 4 mm Violet 1 pc(s) Piece
Description
Stackable, Ø 4 mm, with springed MULTI-LAM, for the self-mounting of measurement leads. With rigid insulation sleeve. Nickel-plated version. Cross-hole for soldering connection.
