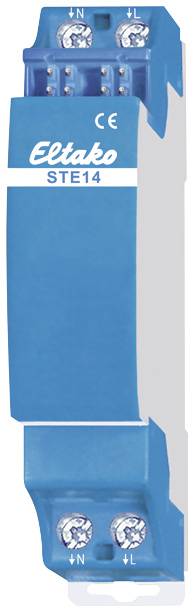

Eltako 30014021 Rail mounted PSU (DIN) 1 A 12 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.89
€ 21.79
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
230 V AC
- Input voltage (max.)
230 V AC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
12 W
- Connection
Screws
- Dim
(L x W x H) 58 x 18 x 58 mm
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Manufacturer part #
30014021
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
18 mm
- Height
58 mm
- Length
58 mm
IP20
- Type
STE14
- Series
Eltako
18 mm
58 mm
58 mm
Other
18 mm
TRUE
1
AC
12 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
12-12 V
FALSE
230-230 V
TRUE
1 A
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2637518 Eltako 30014021 Rail mounted PSU (DIN) 1 A 12 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2637518 Eltako 30014021 Rail mounted PSU (DIN) 1 A 12 W Content 1 pc(s)
Description
Current feed for 230V-actuators. DIN rail mounting device. Cross-wiring bus and power supply with jumper. The STE14 power feed is connected to the 230 V power supply for the actuators on the upper input side. A bus bar SAS is plugged into the lower output side and screwed into place. The number of division units is the sum of the 1TE devices STE14 and FAE14 plus 2TE for the FAM14. The STE14 can be mounted to the left, right or between the actuators. A STE14 is not required for 24 V actuators because the busbar connects the 24 V output of the switched-mode power supply unit to the power supply for the actuators. There is no connection to the bus and the 12V power supply. With the jumper, they are only looped through.
