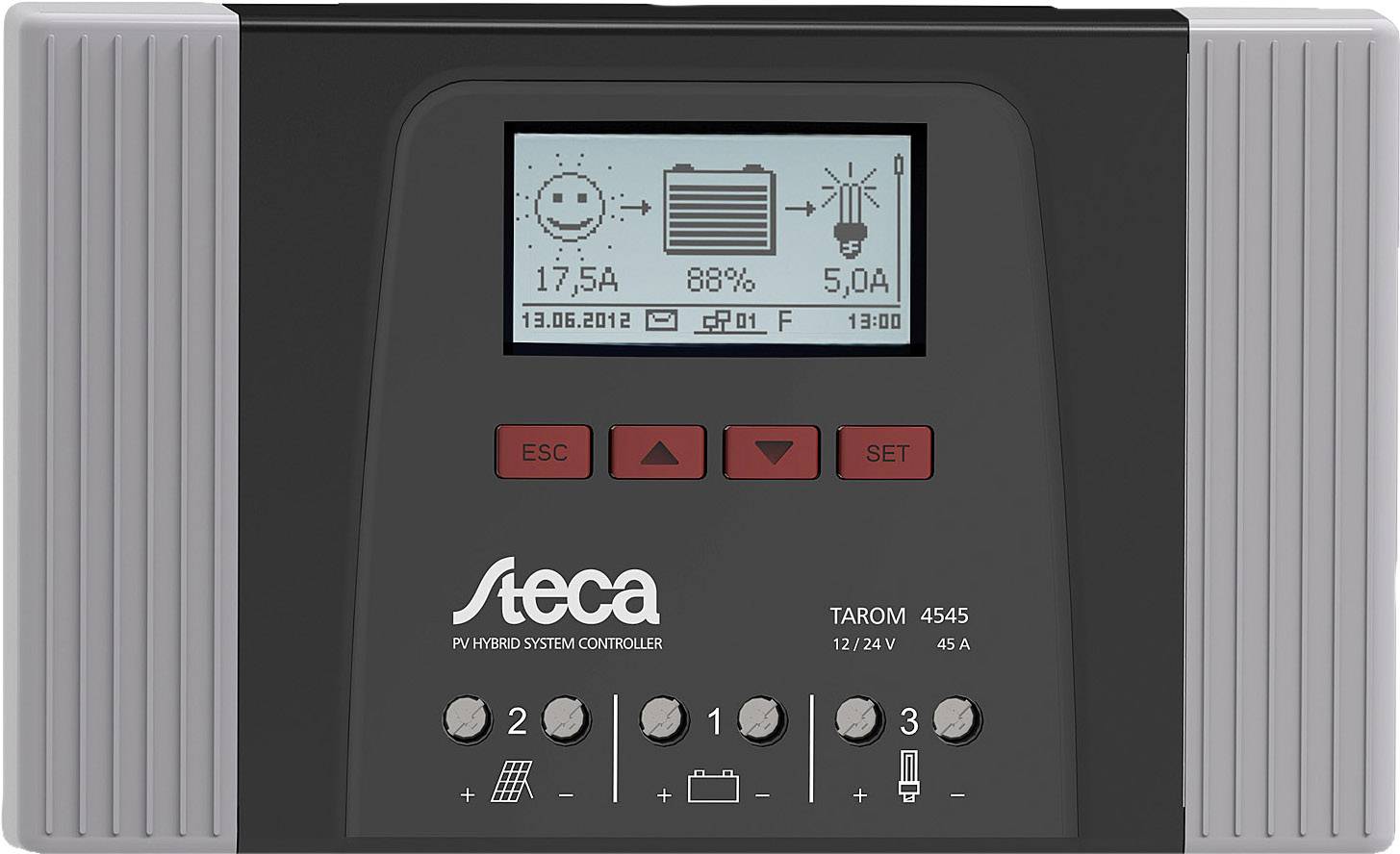

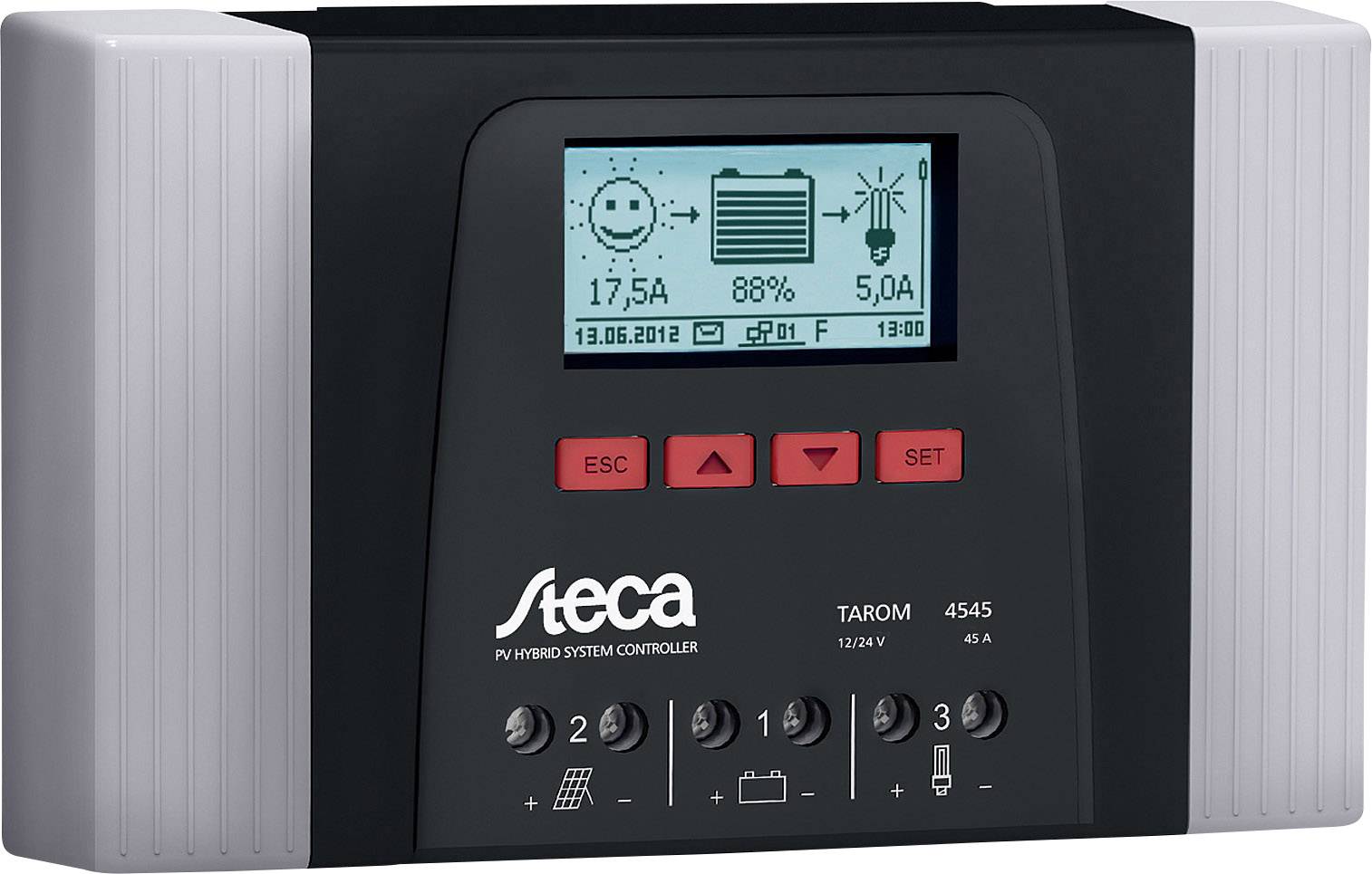

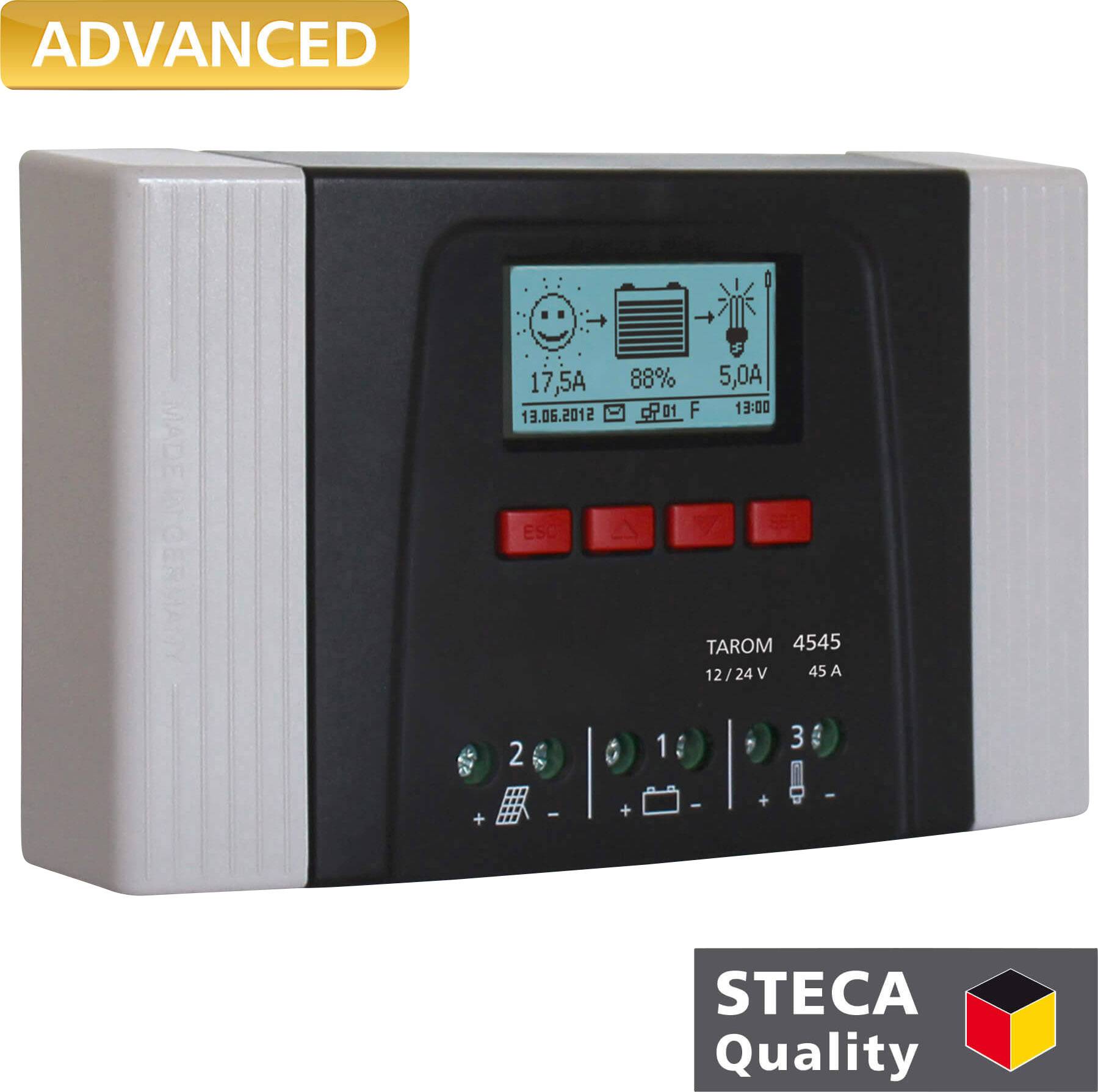

Steca Tarom 4545-48 Charge controller PWM 12 V, 24 V, 48 V 20 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator Tarom 4545-48
- Multi-function LC-Display
- Extensive programmability
- Optimal charging status calculation
- Innovative full-fledged data logger with energy counter
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Module power (max.)
2700 Wp
- Temperature range
-10 °C to 60 °C
- Charging current (max.)
20 A
- Own power consumption
30 mA
- Matching rechargeable battery
Lead acid membrane
Lead-acid
SLA
- Control type
PWM
- Dim
(W x H x D) 218 x 134 x 65 mm
- Weight
800 g
- Current load
45 A
- Module load (max.)
45 A
- Width
218 mm
- Height
134 mm
- Depth
65 mm
Documents & Downloads
Datasheet
Datasheet 1556092 Steca Tarom 4545-48 Charge controller PWM 12 V, 24 V, 48 V 20 A
User & Safety Instructions
User & Safety Instructions 1556092 Steca Tarom 4545-48 Charge controller PWM 12 V, 24 V, 48 V 20 A
User & Safety Instructions 1556092 Steca Tarom 4545-48 Charge controller PWM 12 V, 24 V, 48 V 20 A
Information
Information 1556092 Steca Tarom 4545-48 Charge controller PWM 12 V, 24 V, 48 V 20 A
Conformity certificate
Conformity certificate 1556092 Steca Tarom 4545-48 Charge controller PWM 12 V, 24 V, 48 V 20 A
Description
High-quality charging regulator with large graphic display, comprehensive programmability and an optimal charging status calculation. The Steca Tarom has a unique, fully-fledged data logger, the data of the module and load page about twelve years stores. The history of the last 18 hours can be graphically displayed. Daily, monthly and annual totals are automatically made an excellent overview of the use of the system. Two additional switching contacts are as a timer, night light function, for start of generators or as surplus manager can be freely configured.
This text is machine translated.
This text is machine translated.
Features
- Shunt topology with MOSFETs
- MicroSD card slot for data-logger of all minutes values
- Charging status calculation (SOC)
- Automatic voltage detection.
- PWM control
- Multistage charging technology
- SOC-dependent load disconnection
- Automatic load reconnection
- Temperature compensation
- Negative grounding on one or several positive earthing terminals
- Real-time clock (date, time)
- Innovative full-fledged data logger with energy counter
- MicroSD card slot for data-logger of all minutes values
- In the evening, night and morning light function
- Four programmable timer with weekday function
- Auto-test function
- Monthly equalising charge
- Two configurable auxiliary contacts
- End-of-charge voltages can be set
- Trickle charging
- Over and deep discharge protection
- Reverse polarity protection of module and battery
- Automatic electronic fuse
- Short-circuit protection of the load and module
- Idle protection without battery
- Reverse current protection at night.
- Temperature and overload protection
- Load switch-off for Battery overvoltage
- Multi-functional LC-display with background lighting
- Ideal for system sizes up to 2700 Wp
- Simple, menu navigation control
- Alarm contact
Scope of delivery
- Tarom 4545
- User manual.
