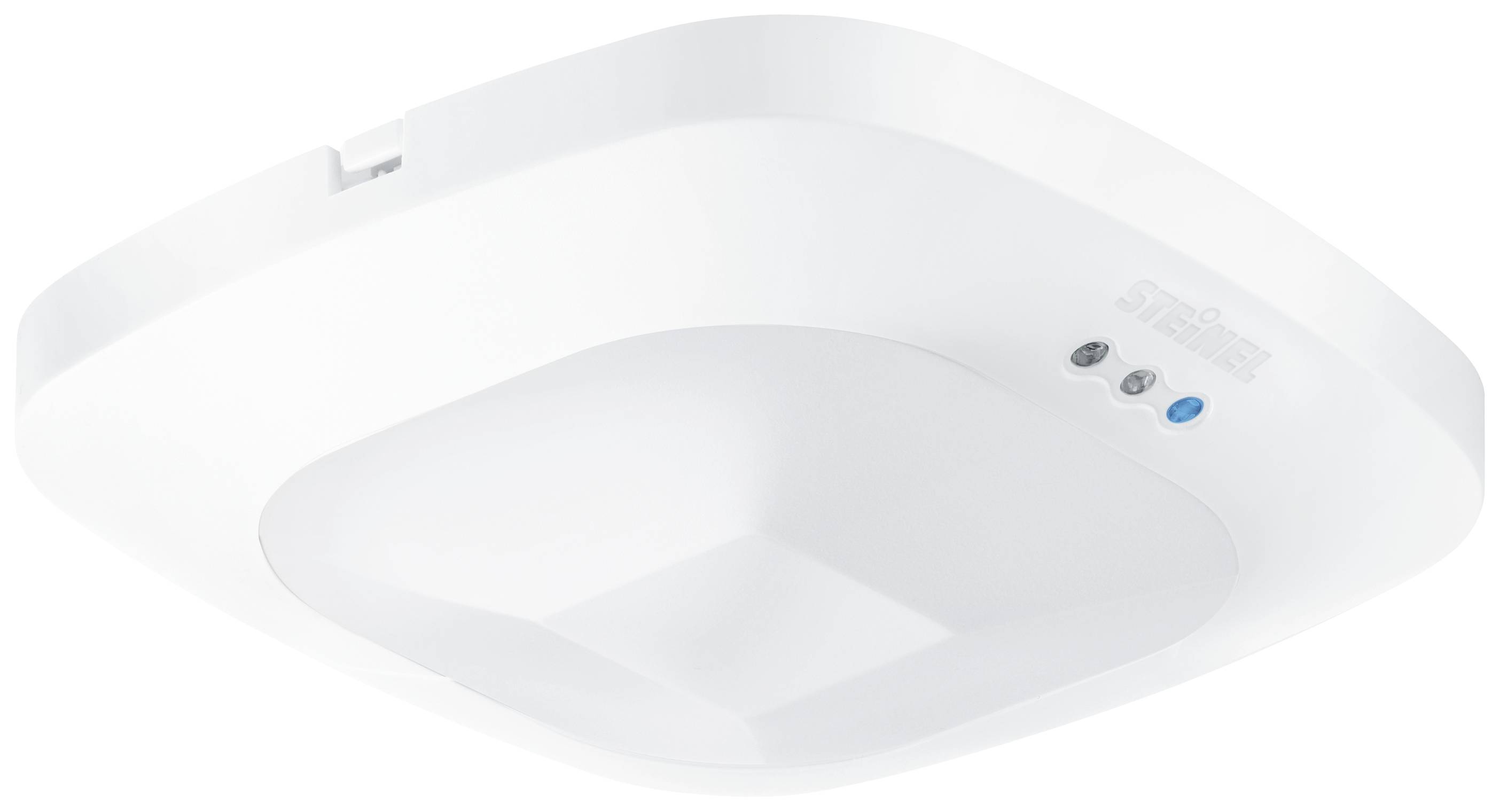

Steinel 002800 Flush mount, Ceiling HF motion detector 360 ° White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
464 Piece(s)
Sales and shipping:
Number
Total (€ 105.03 / piece)
€
Highlights & Details
Presence detector Presence Control
- For indoors, especially for public areas such as toilet cabins
- HF sensor with 360° detection range
- electronically adjustable and can be damped on both sides
Technical specifications
- IQ-Mode: Yes
- Housing UV resistant, can be painted.
- Model COM1
- Teach function for the light-intensity threshold: Yes
- The parallel switching Master/Slave master/Master Sensors: high-frequency 5.8 GHz (transmitter power< 1 mW)
- II proctection rating.
- Product type
HF motion detector
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
Ceiling
- Operating voltage
230 V
- Switching capacity
2000 W
- Twilight settings
10 - 1000 lx
- Time settings
30 Sec. - 30 minutes.
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 to 55 °C
- Type
High-frequency
- Length
56 mm
- Width
120 mm
- Height
120 mm
- Dim
(L x W x H) 56 x 120 x 120 mm
- Weight
0.42
Documents & Downloads
Datasheet
Datasheet 1598062 Steinel 002800 Flush mount, Ceiling HF motion detector 360 ° White IP20
User & Safety Instructions
User & Safety Instructions 1598062 Steinel 002800 Flush mount, Ceiling HF motion detector 360 ° White IP20
Warranty Terms
Warranty Terms 1598062 Steinel 002800 Flush mount, Ceiling HF motion detector 360 ° White IP20
Description
Captures everything. The HF-presence detector Presence Control PRO HF 360 COM1 from steinel is suitable for indoor use. Ideal for toilets with toilet cabins, locker rooms, stairwells, parking garages, kitchens.
The ideal installation height is up to 3.5 m. For the switching of light, 1-12 m range, electronically adjustable and two-sided dampfbar, temperature-independent detection. The HF-sensor technology penetrates also glass, wood and light-weight walls.
This text is machine translated.
The ideal installation height is up to 3.5 m. For the switching of light, 1-12 m range, electronically adjustable and two-sided dampfbar, temperature-independent detection. The HF-sensor technology penetrates also glass, wood and light-weight walls.
This text is machine translated.
Features
- Invisible mounting with a ceiling adapter is possible
- IQ mode for automatic adjustment of the follow-up time to the space usage
- Master/Master and Master/slave networking possible.
