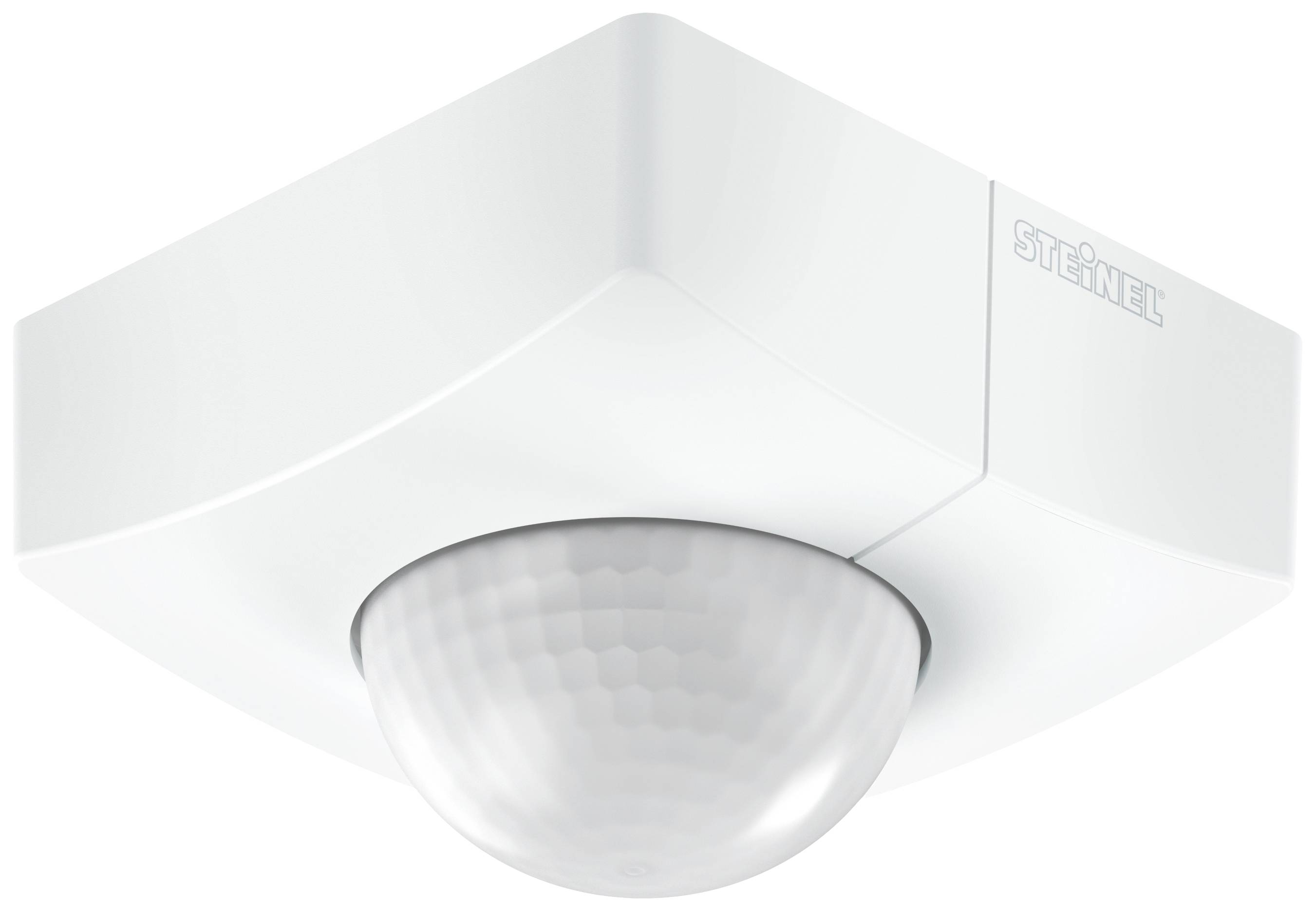

A white ceiling-mounted motion sensor with a distinctive, rounded sensor housing.

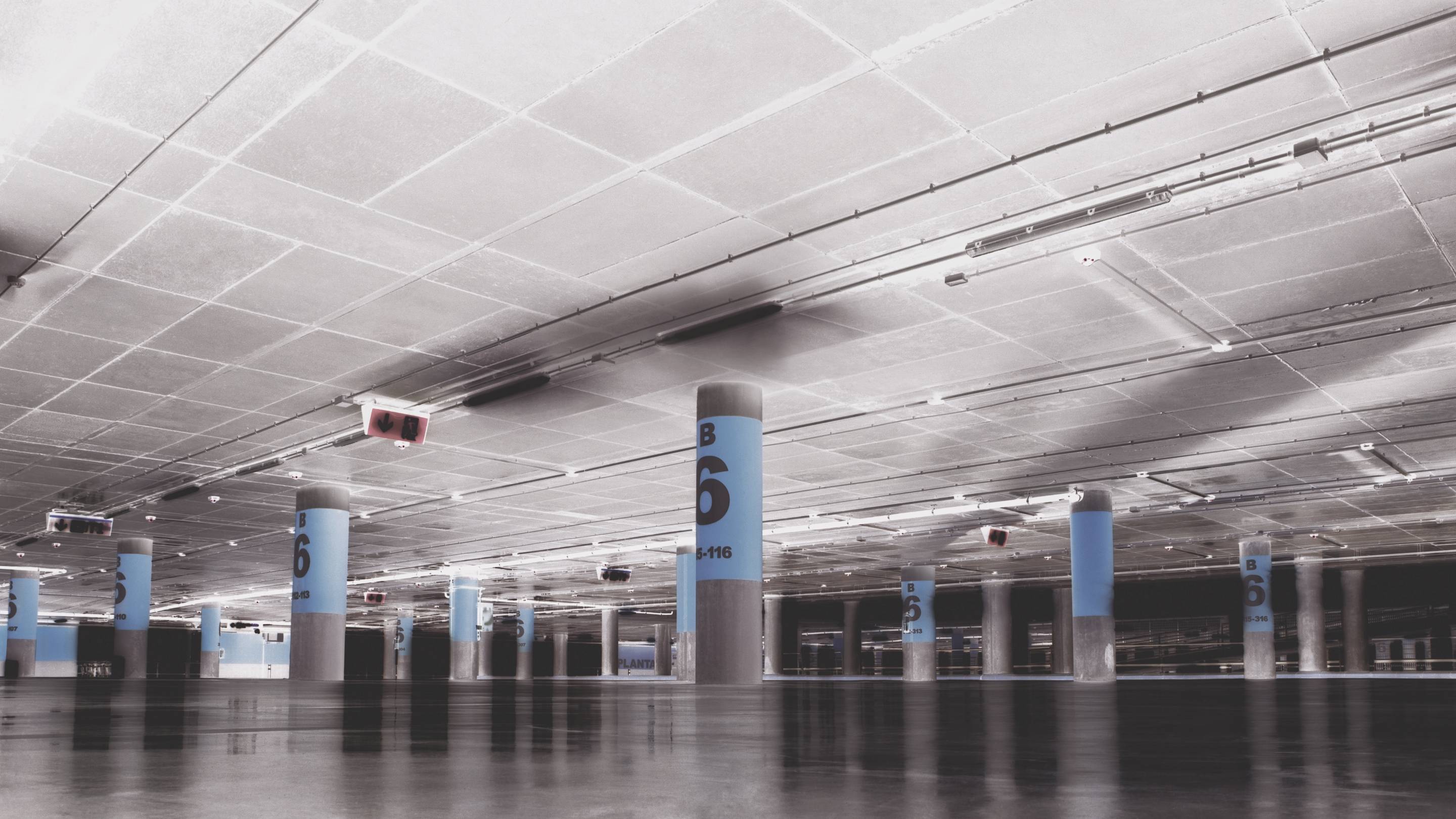

A vacant, modern underground car park with grey pillars marked in blue, bearing the number 6. Ceiling lights are on.

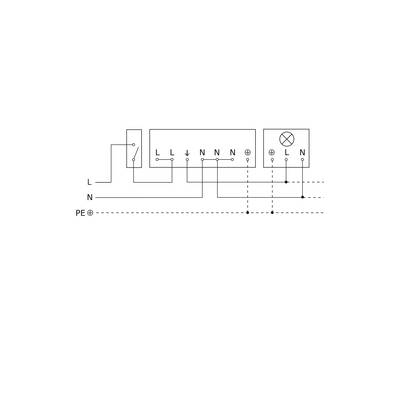

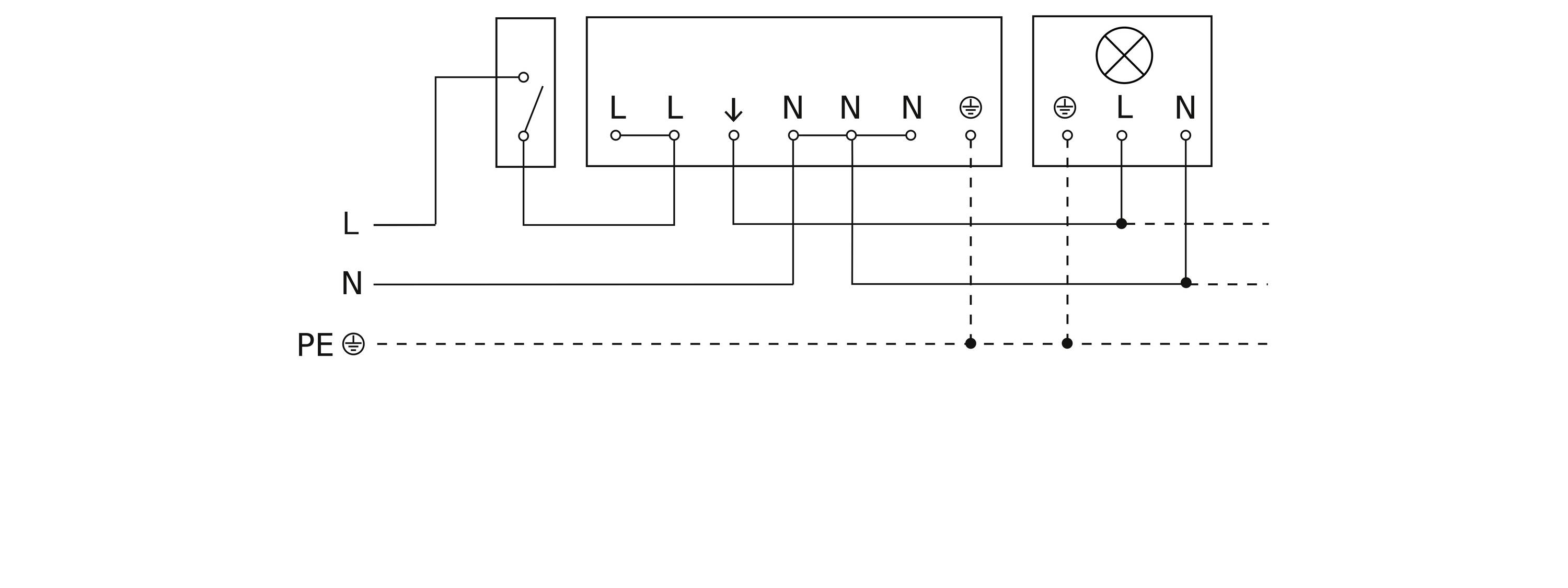

An electrical circuit shows connections for Live (L), Neutral (N), and Earth (PE). Wiring with a switch and a lamp.

Black and white illustration of a peri-urban landscape with water, a bridge, trees, and city buildings in the background.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Steinel motion detector IS 3360-E COM1 white, surface-mounted outdoor sensor indoors

Ideal for monitoring large rooms and areas such as multi-story car parks, underground car parks
360° PIR detection angle, range max. 20 m
Large connection space for easy installation
Strong relay provides for a high switching capacity (max. 2000 W)
With continuous light function and twilight setting via teach

Technical specifications

Mounting height 2.50 - 4.00 m

Product type: PIR motion detector

Detection angle: 360°

: 20 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount
Ceiling

Operating voltage: 230 V

Switching capacity: 2000 W

Twilight settings: 2 - 1000 lx

Time settings: 5 seconds - 15 min.

Factory colour: White

Similar RAL: 9003

: IP54

Operating temperature: -20 to +50 °C

Type: Passive infra-red

Length: 65 mm

Width: 95 mm

Height: 95 mm

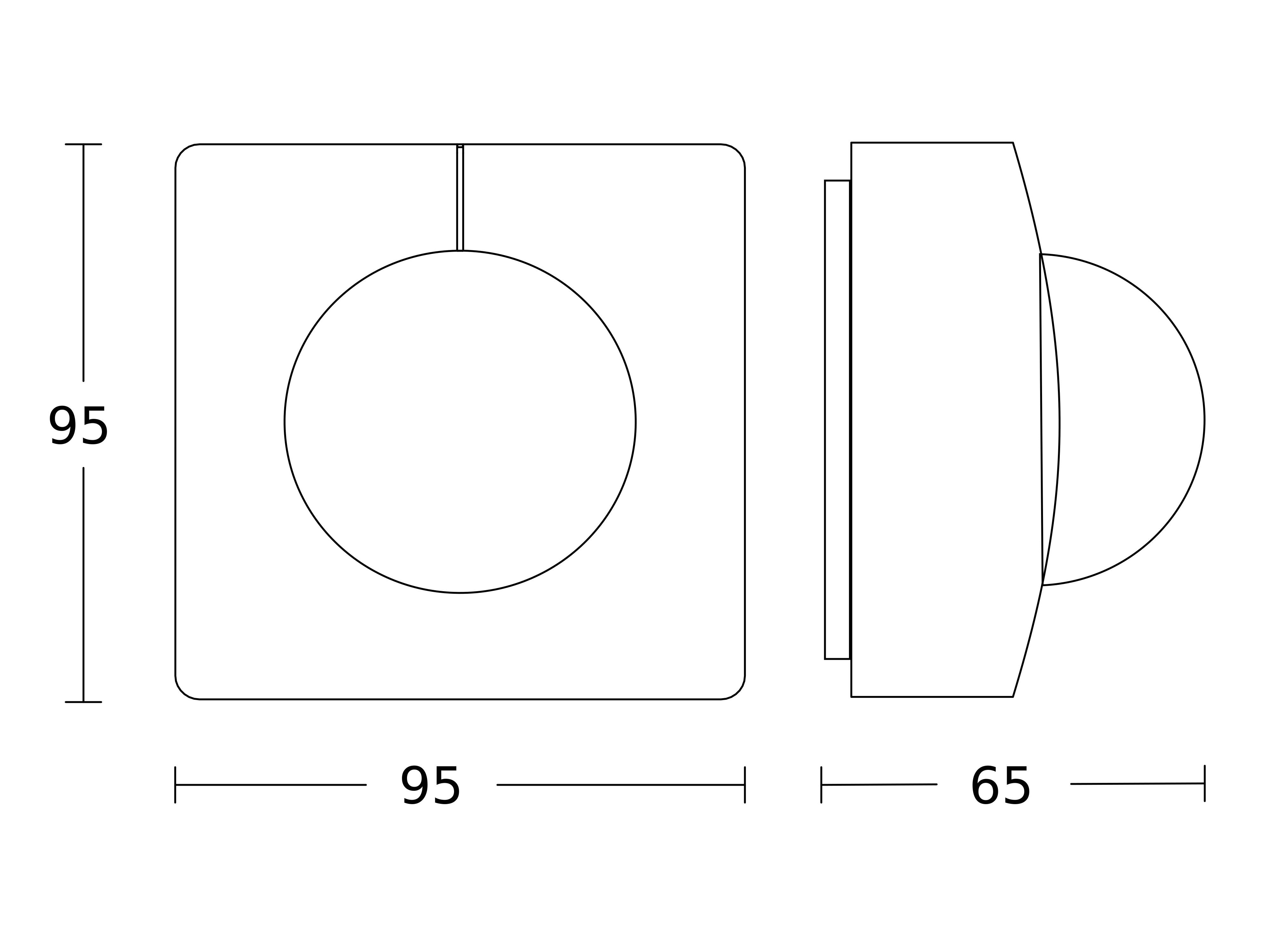

Dim: (L x W x H) 65 x 95 x 95 mm

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3025497 Steinel 010478 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

User & Safety Instructions

User & Safety Instructions 3025497 Steinel 010478 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

Warranty Terms

Warranty Terms 3025497 Steinel 010478 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

Description

With wide-view. And a view. Large rooms, multi-story car parks and halls with ceiling heights of up to 4 m rarely offer mounting possibilities on the running meter. That's why these environments require a high-range presence detectors. Like the IS 3360. It captures all movements around within 20 meters tangential. And that too at installation heights of up to 4 meters. In short: An IS 3360 covers more than 1000 m2! Steinel infrared technology, which WAS promises.
