Buy Steinel 029944 Flush mount, Wall PIR motion detector 180 ° White IP20

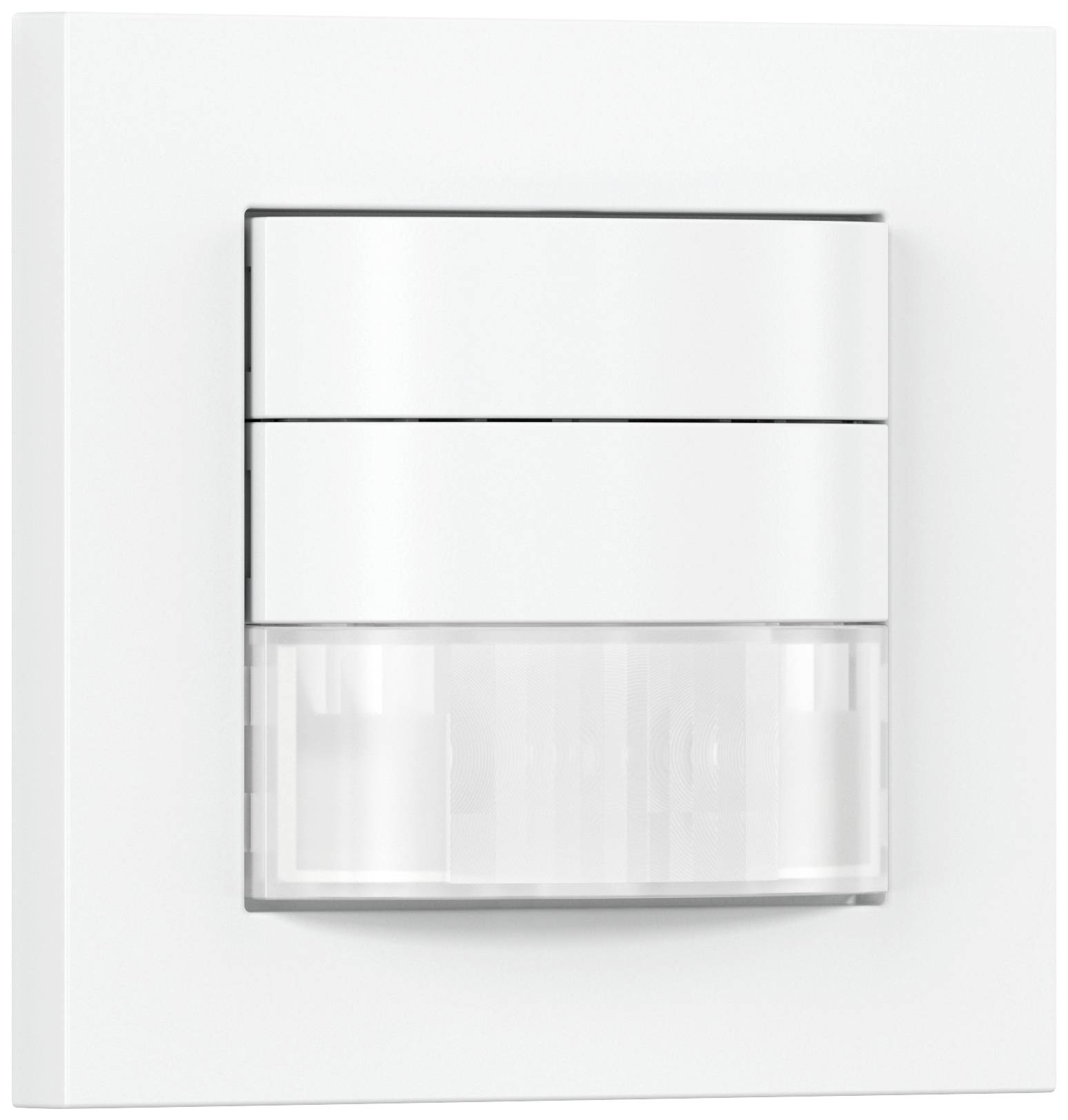

A white motion sensor with a square design for wall mounting. It is used for automatic light control.

White door in a modern room, wooden cabinets with silver handles to the left.

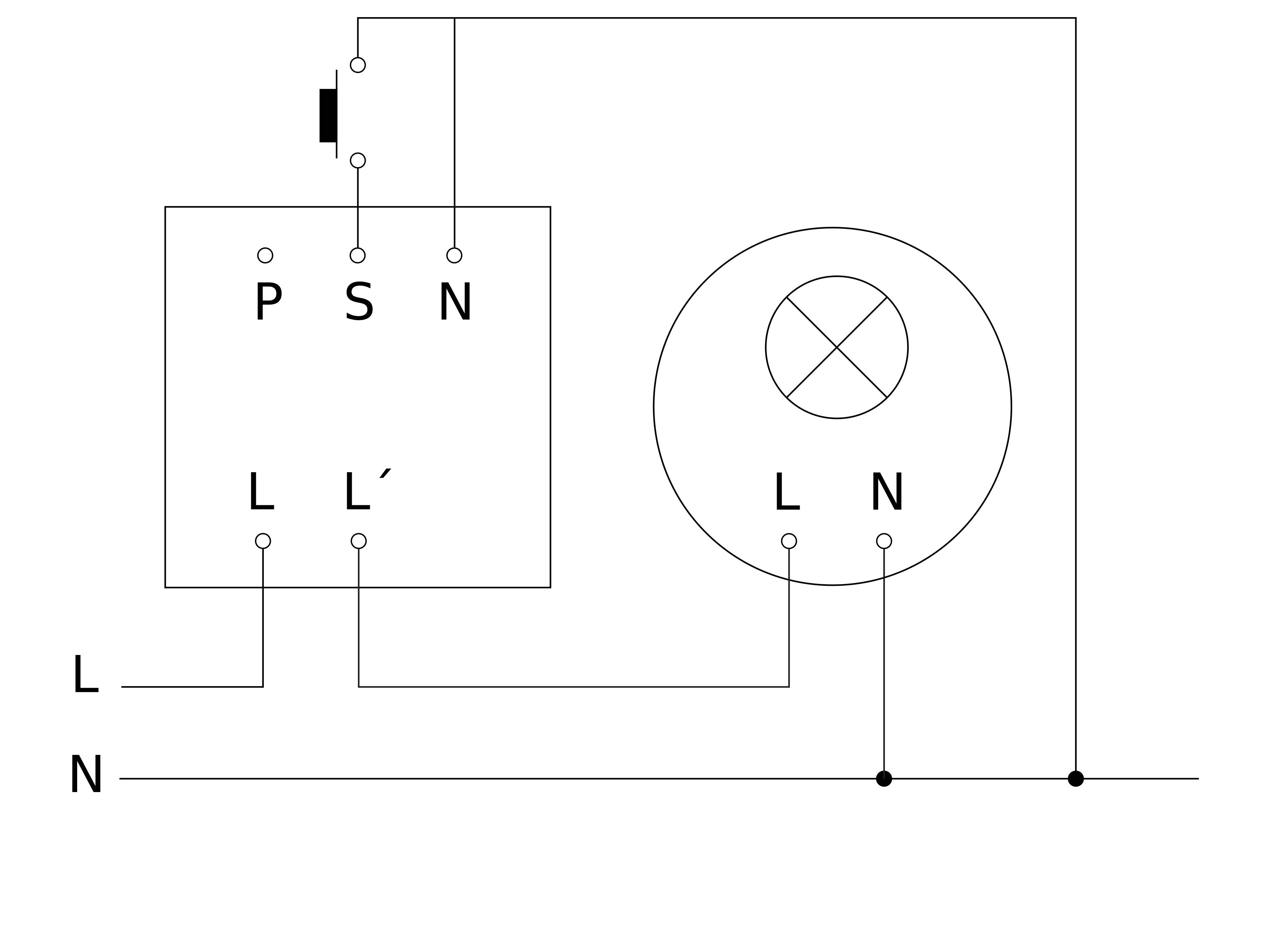

Structural diagram with interconnected lines and points.

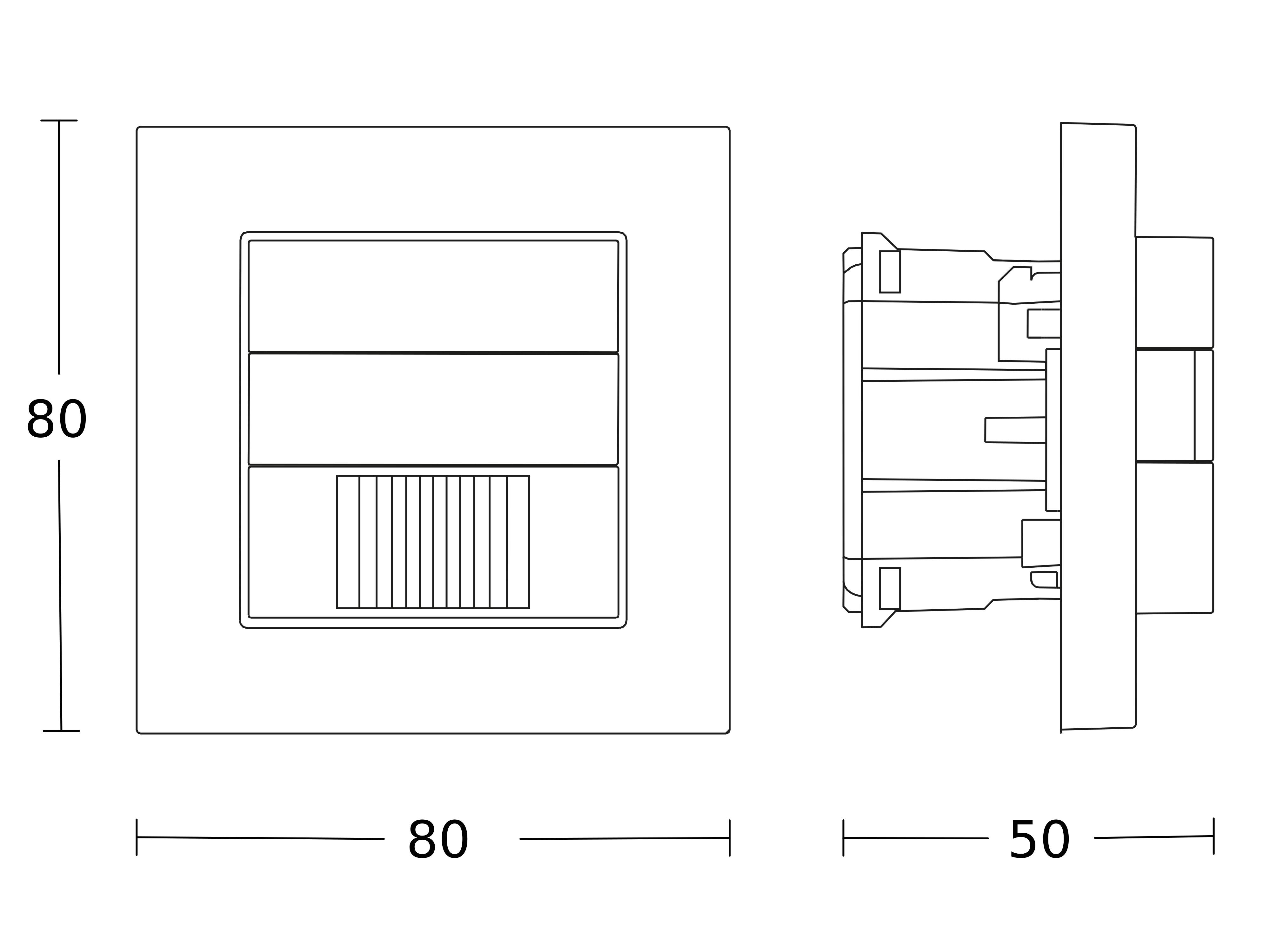

Black and white technical diagram of a rectangular element in the centre and a cylinder on the right. Shows dimensions and shapes.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Steinel IR 180 COM1 sensor switch, presence switch, flush-mounted motion detector

Quick and easy 3-wire assembly in new and existing buildings
180° PIR detection angle, max. 12 m range
Built-in button for manual override
Strong relay provides for a high switching capacity (max. 2000 W)
Sensor light switch with attractive design

Technical specifications

Installation height 1.10 m

Product type: PIR motion detector

Detection angle: 180°

: 12 m

Used at: Indoors

Mounting type: Flush mount
Wall

Operating voltage: 230 V

Switching capacity: 2000 W

Twilight settings: 2 - 1000 lx

Time settings: 30 seconds - 30 min.

Factory colour: White

Similar RAL: 9010

: IP20

Operating temperature: 0–40 °C

Type: Passive infra-red

Length: 30 mm

Width: 80 mm

Height: 80 mm

Dim: (L x W x H) 30 x 80 x 80 mm

Weight: 170.00

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3025502 Steinel 029944 Flush mount, Wall PIR motion detector 180 ° White IP20

User & Safety Instructions

User & Safety Instructions 3025502 Steinel 029944 Flush mount, Wall PIR motion detector 180 ° White IP20

Warranty Terms

Warranty Terms 3025502 Steinel 029944 Flush mount, Wall PIR motion detector 180 ° White IP20

Description

The new standard for infrared sensor switches. New design, intelligent technology, quick assembly. The IR 180 is the solution when infrared sensor switches are present or planned in new or existing buildings with 3-wire cabling. 180 refers to the enormous detection angle of the sensor. Nothing is hidden from him on the left and right. The IR 180 also presents itself in a new design and can be mounted quickly and easily. The KNX version also provides the output of temperature and humidity measurement values.
