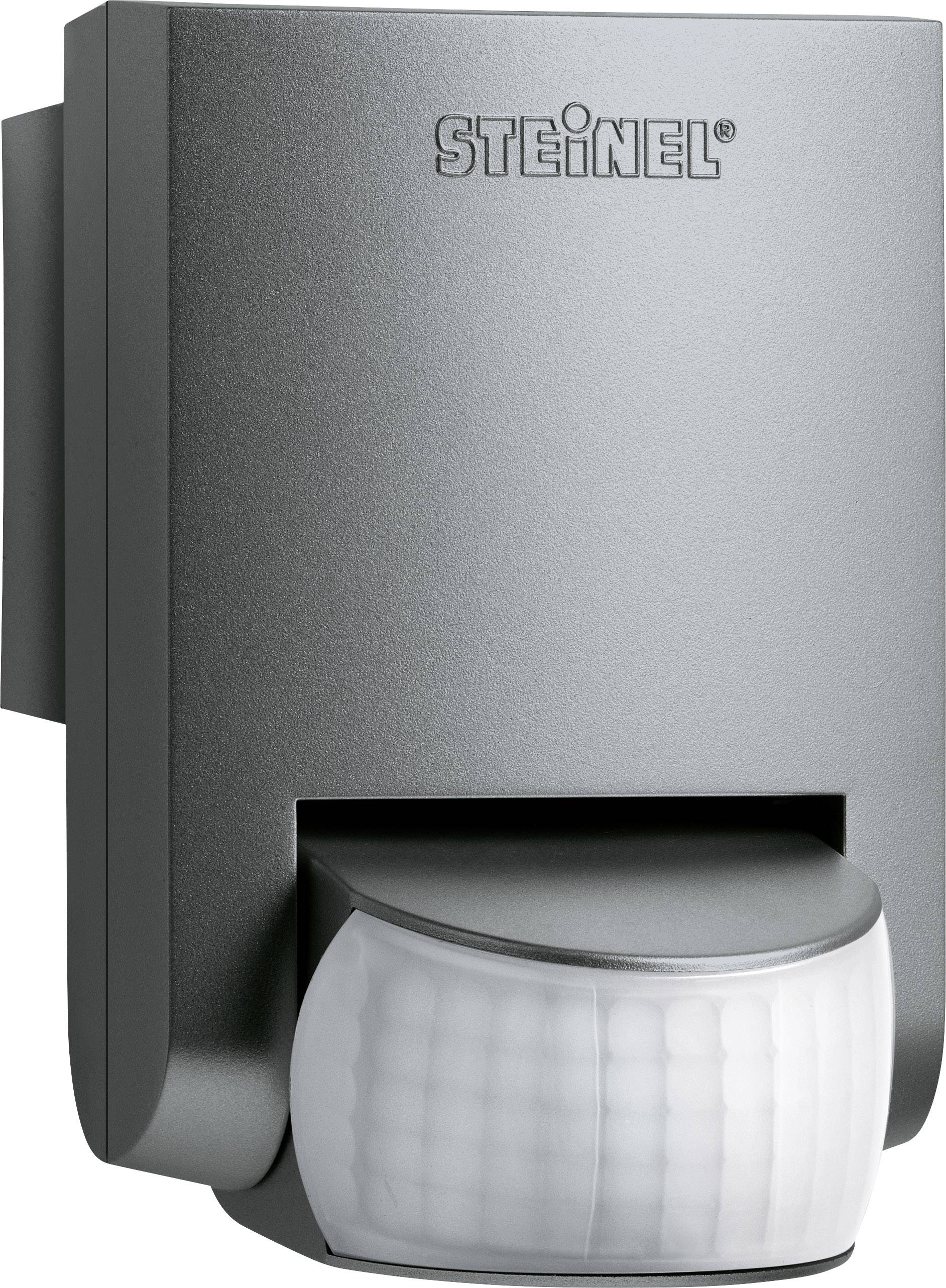

Steinel 035761 Surface-mount PIR motion detector 130 ° Relay Anthracite IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Infrared motion detector IS 130-2
- Spacious, clear connection space
- Can be swiveled horizontally and vertically
- Protection Class IP 54 .
Technical specifications
- Swivel range horizontal: 50°
- Swivel range vertical: 90°
- Sensor type: passive infrared
- Segment-detection fade-out possible: Yes
- Protection class: 2
- Product type
PIR motion detector
- Detection angle
130°
12 m
- Used at
Outdoors
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
600 W
- Voltage (max.)
240 V
- Switching capacity (energy saving bulbs)
500 W
- Switching capacity (light bulbs)
600 W
- Switching capacity (halogen bulbs)
600 W
- Switching capacity (LED)
500 W
- Switching capacity (light tubes)
500 W
- Twilight settings
2 - 2000 lx
- Time settings
8 s - 35 min
- Factory colour
Anthracite
IP54
- Operating temperature
-20 - +50 °C
- Length
130 mm
- Width
78 mm
- Height
84 mm
- Dim
(L x W x H) 130 x 78 x 84 mm
- Weight
0.16 kg
- Voltage (min.)
230 V
Other
Anthracite
78
Movement sensor
TRUE
87 mm
87 mm
Other
Other
AC
50-50 MHz
Thermoplastic
120 A
Plastic
7016
IP54
FALSE
FALSE
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1902162 Steinel 035761 Surface-mount PIR motion detector 130 ° Relay Anthracite IP54
User & Safety Instructions
User & Safety Instructions 1902162 Steinel 035761 Surface-mount PIR motion detector 130 ° Relay Anthracite IP54
User & Safety Instructions 1902162 Steinel 035761 Surface-mount PIR motion detector 130 ° Relay Anthracite IP54
Warranty Terms
Warranty Terms 1902162 Steinel 035761 Surface-mount PIR motion detector 130 ° Relay Anthracite IP54
Description

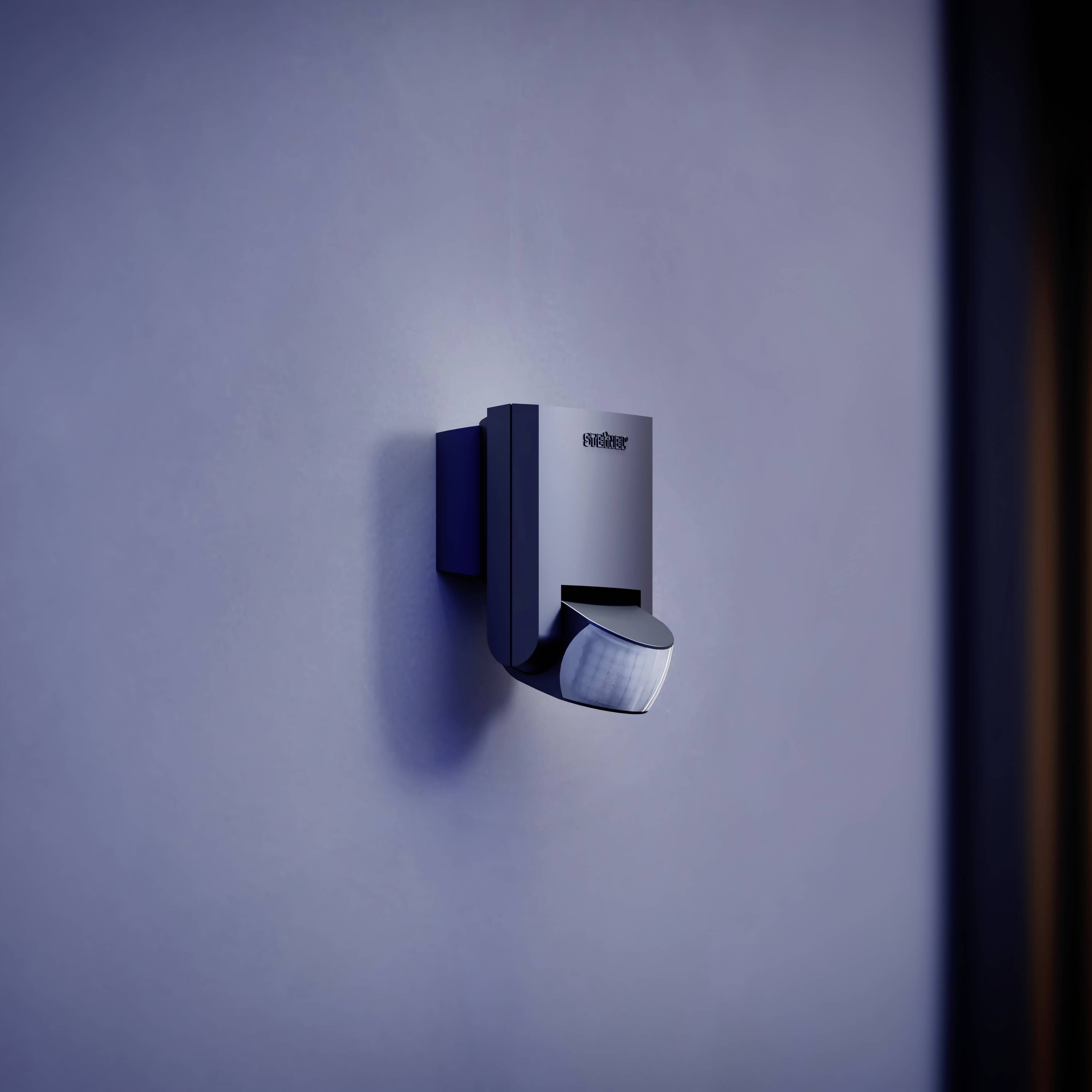

Are you looking for an introduction to the world of motion detectors? The infrared motion detector IS 130-2 is one of STEINEL's customer favorites in recent years. But we don't rest on that. We have optimized both design and technology over and over again. The sensor classic is the ideal solution for the targeted monitoring of areas in front of houses and driveways. It offers excellent recording quality and can be adapted to the specific conditions on site. The motion detector is wired so easily and quickly, your neighbor will not even notice the installation.

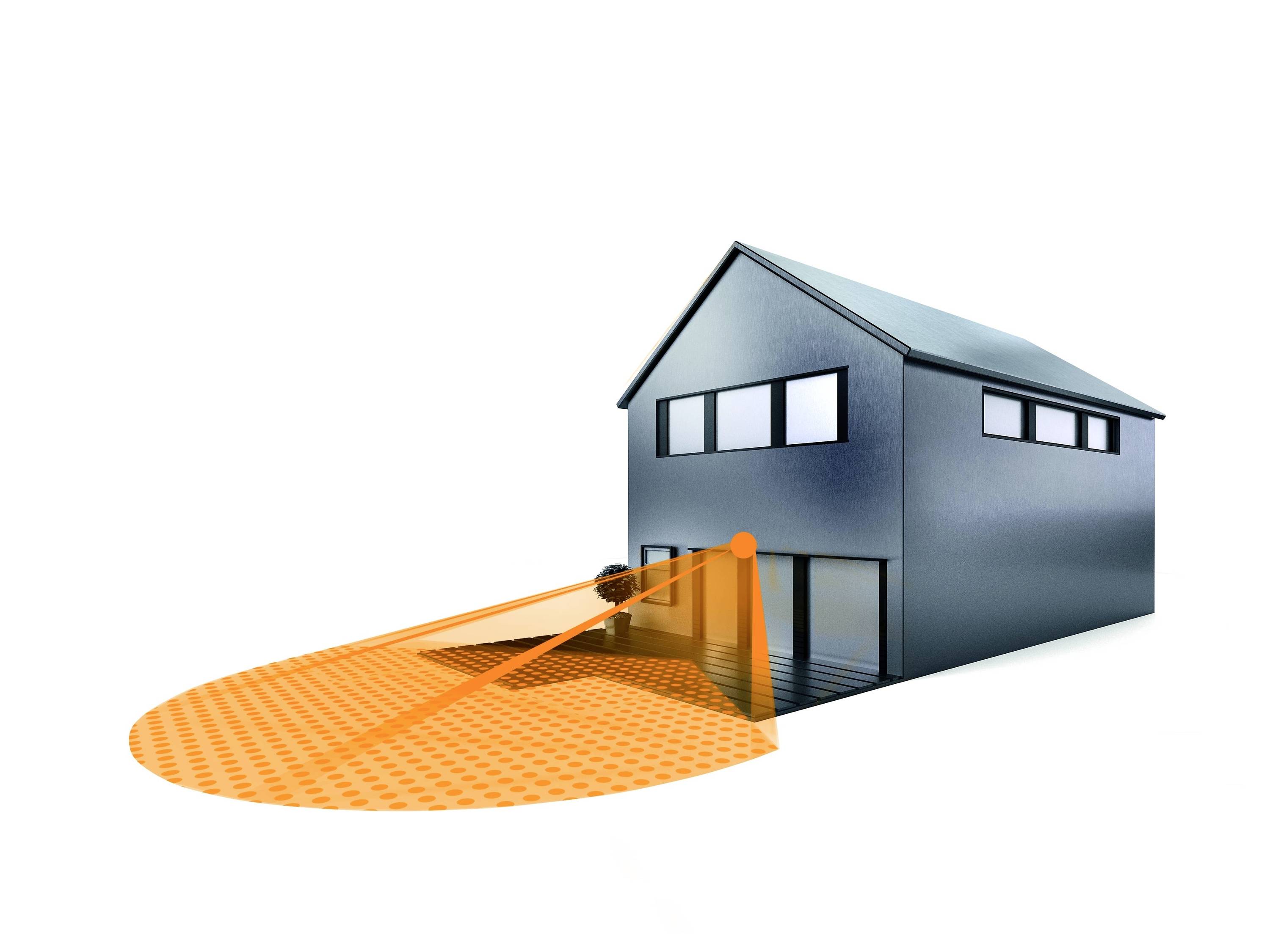

Targeted recording around the house. Infrared motion detector IS 130-2, for outside and inside, ideal for targeted detection at the house, 130° detection angle, range up to 12 m, time and twilight threshold adjustable, sensor can be swiveled horizontally by 50° and vertically by 90° for exact adaptation to the detection area.
This text is machine translated.
Targeted recording around the house. Infrared motion detector IS 130-2, for outside and inside, ideal for targeted detection at the house, 130° detection angle, range up to 12 m, time and twilight threshold adjustable, sensor can be swiveled horizontally by 50° and vertically by 90° for exact adaptation to the detection area.
This text is machine translated.
Scope of delivery
- Motion DETECTOR IS 130-2
- User manual.
