Buy Steinel 056650 Surface-mount, Wall PIR motion detector 300 ° Anthracite IP54

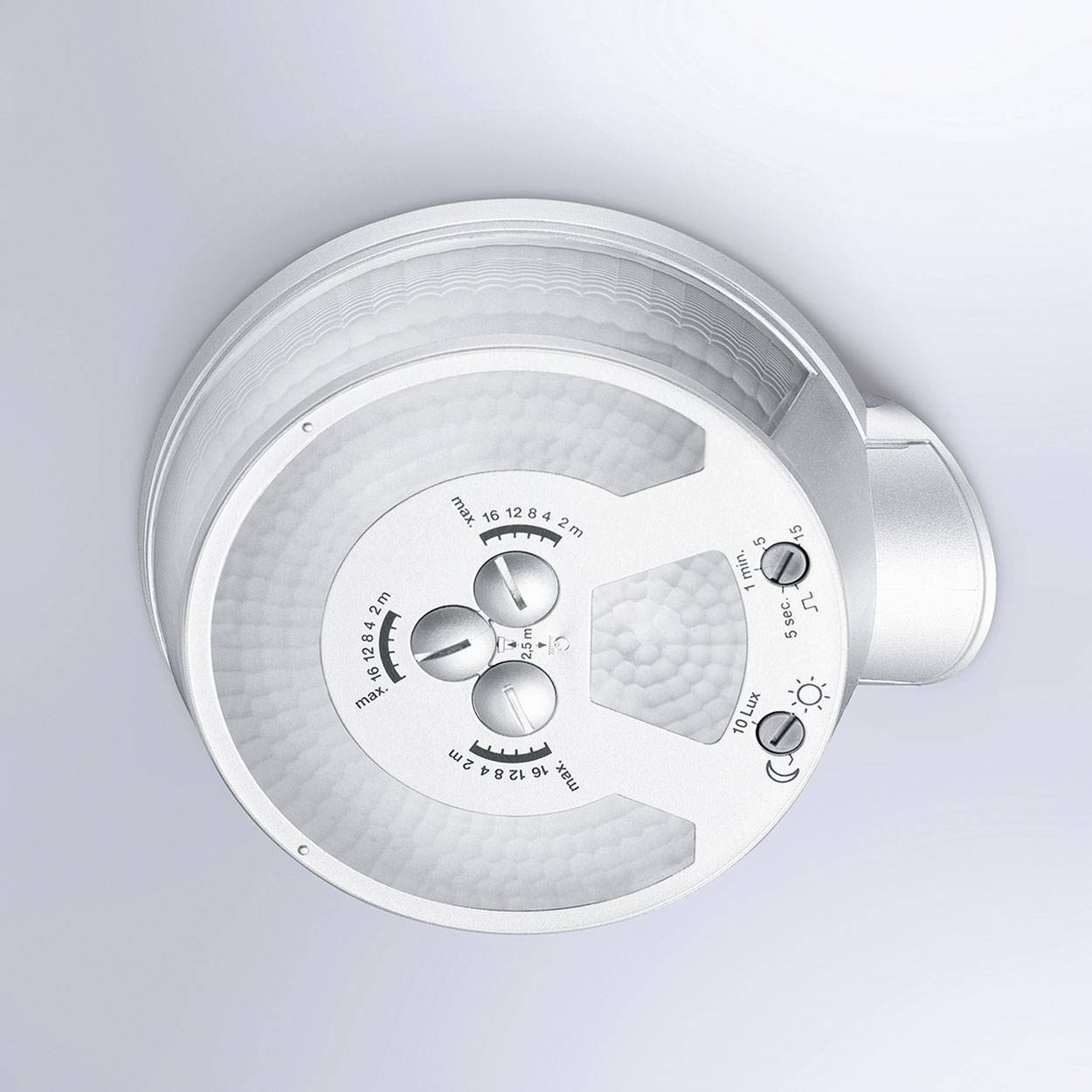

A circular motion sensor with multiple adjustment options for detection angle and range.

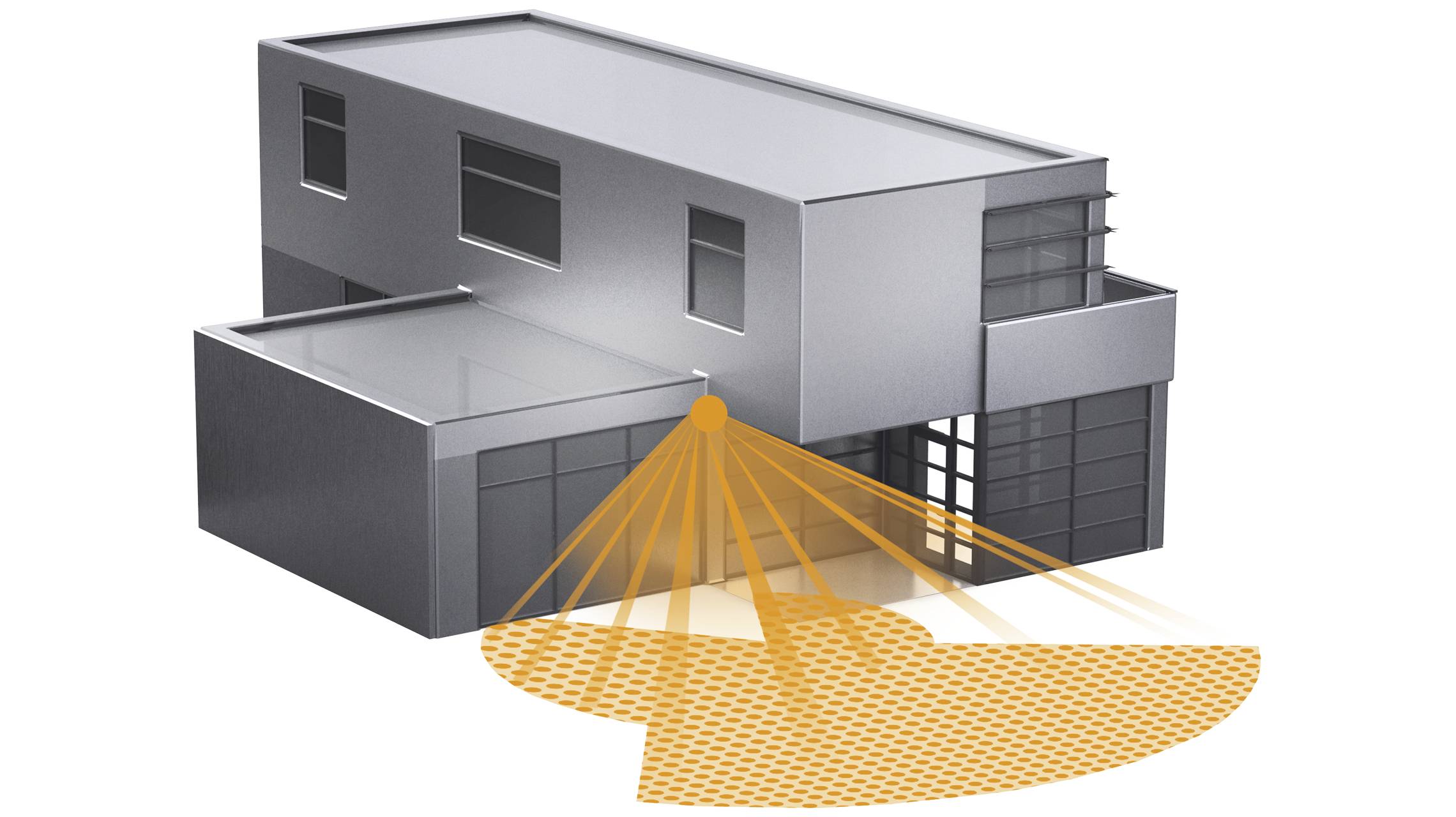

A grey house with orange lines depicting a surveillance area in front of the garage.

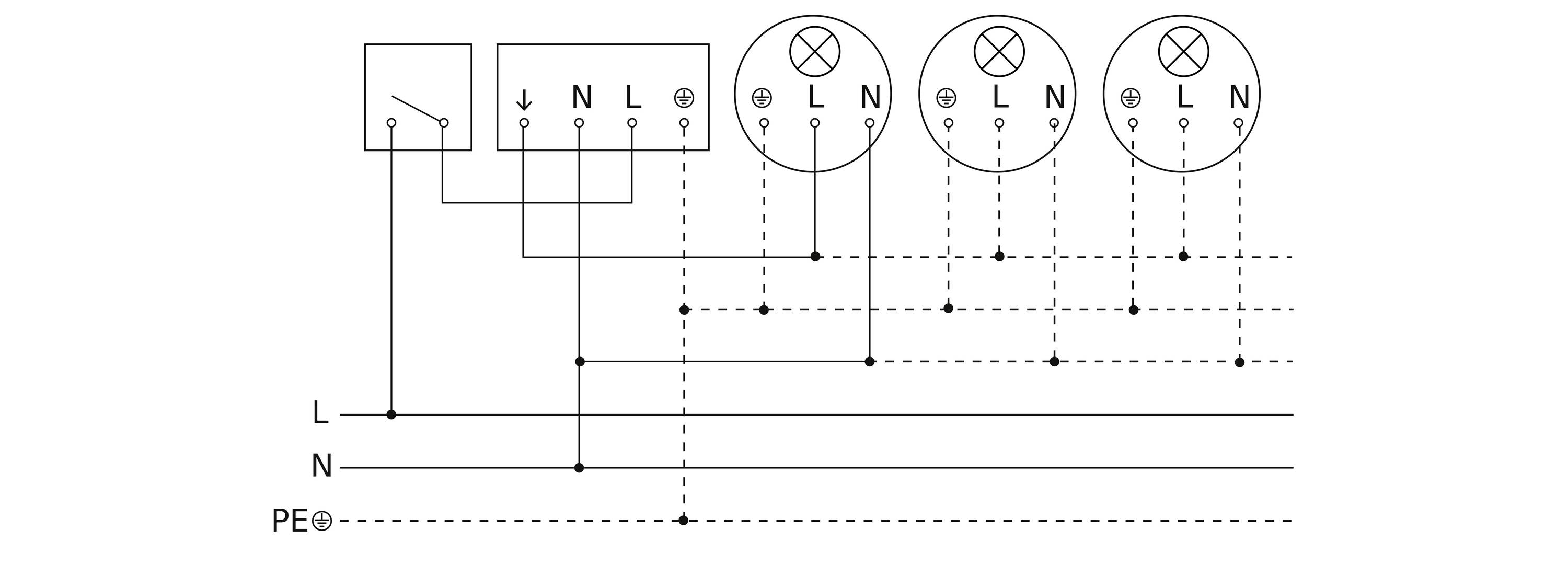

Wiring diagram for light fittings with live, neutral, and earth terminal connections, showing the connections and switch positions.

A hand holds a cracked vase above a wooden table. To the right of the image, a golden repair agent glows.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

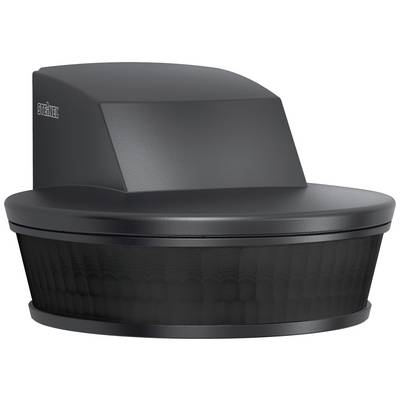

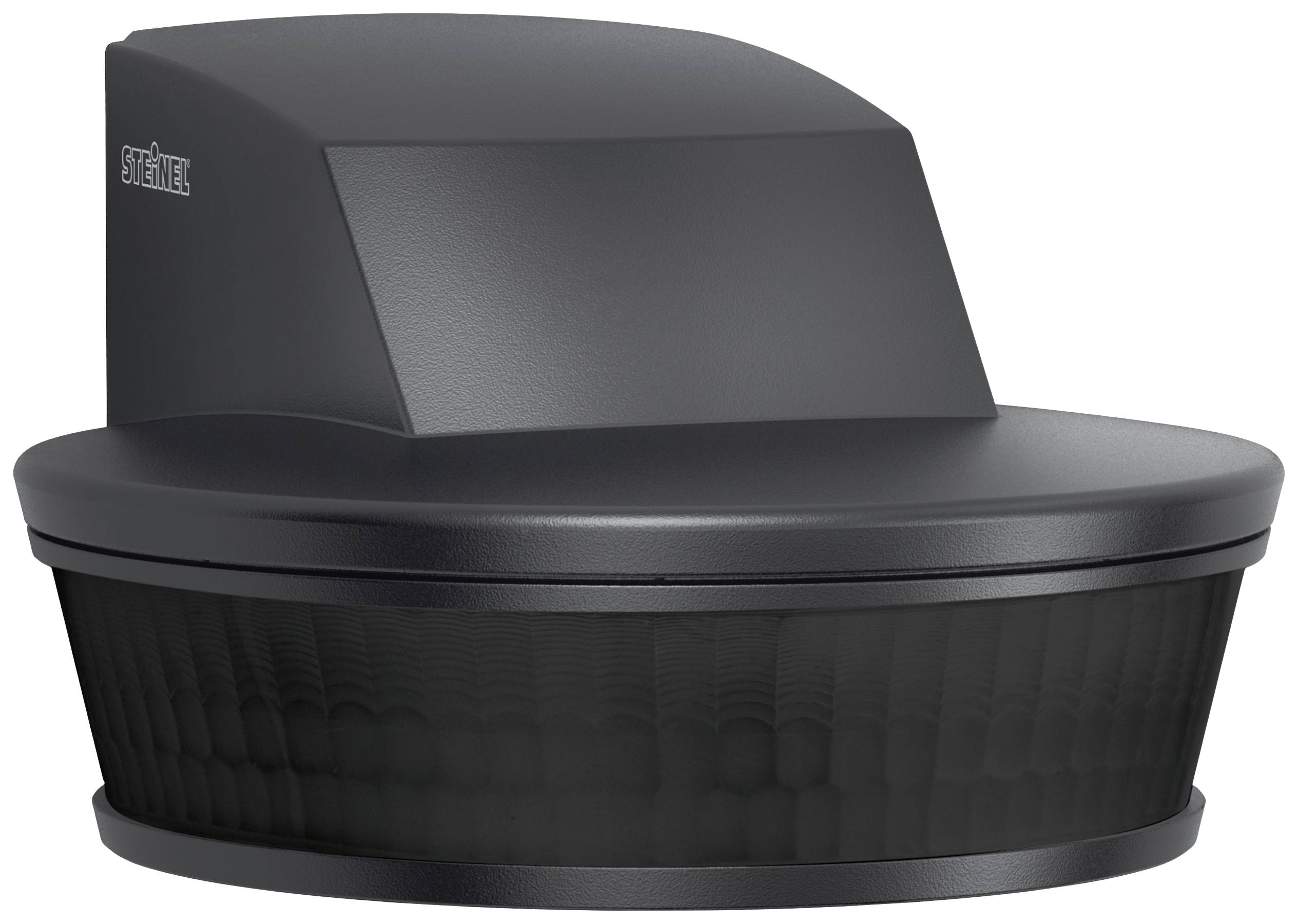

Steinel motion sensor sensIQ S anthracite, 300° detection, sneak-by guard

Ideal for house entrances and loading ramps up to 5 m installation height
4-way sensor system with 3x100° detection angle under creep zone protection sensor, max. 20 m range
Meter accurate range adjustment in 3 independent directions
Including remote control and corner wall bracket
Strong relay provides for a high switching capacity (max. 2000 W)

Technical specifications

Mounting height 2 - 5 m

Product type: PIR motion detector

Detection angle: 300°

: 20 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount
Wall

Operating voltage: 230 V

Switching capacity: 2000 W

Twilight settings: 2 - 1000 lx

Time settings: 5 seconds - 15 min.

Factory colour: Anthracite

Similar RAL: 7016

: IP54

Operating temperature: -20 to +50 °C

Type: Passive infra-red

Length: 128 mm

Width: 114 mm

Height: 74 mm

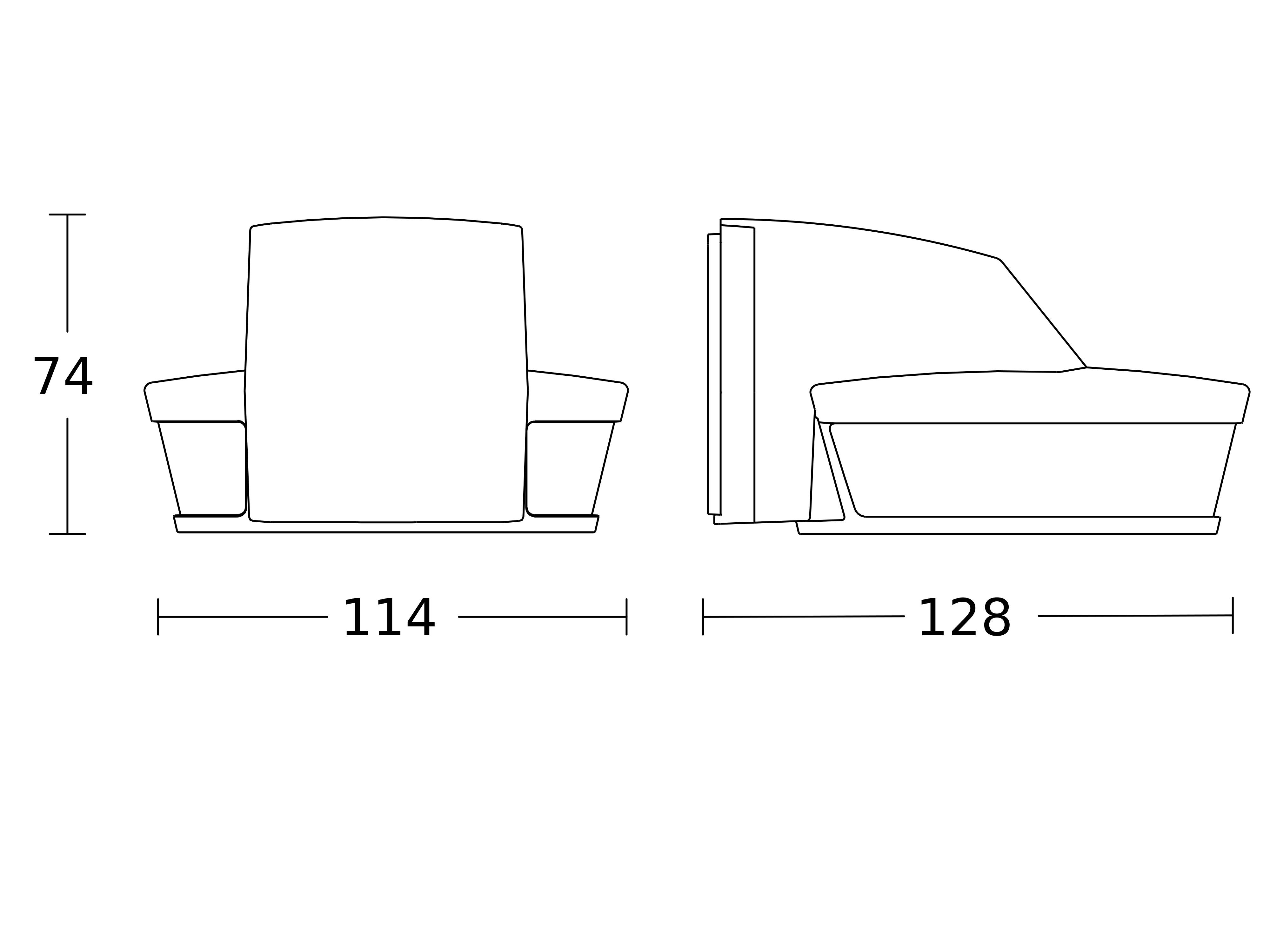

Dim: (L x W x H) 128 x 114 x 74 mm

Weight: 376.00

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3025500 Steinel 056650 Surface-mount, Wall PIR motion detector 300 ° Anthracite IP54

User & Safety Instructions

User & Safety Instructions 3025500 Steinel 056650 Surface-mount, Wall PIR motion detector 300 ° Anthracite IP54

Warranty Terms

Warranty Terms 3025500 Steinel 056650 Surface-mount, Wall PIR motion detector 300 ° Anthracite IP54

Description

The evolution of perfection. The reference in a compact design. Royal offspring! The senIQ S is just as perfect in form and functionality as its great role model. A sight that architects like. The design-motion sensor was developed especially for wall mounting. Since it is more compact than the big brother, the senIQ S fits perfectly into the facade and harmonizes perfectly with modern, purist architecture. The inner values are also spectacular, because it has the same highly intelligent equipment and adjustment options as the senIQ.

This text is machine translated.
