Buy Steinel 057770 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

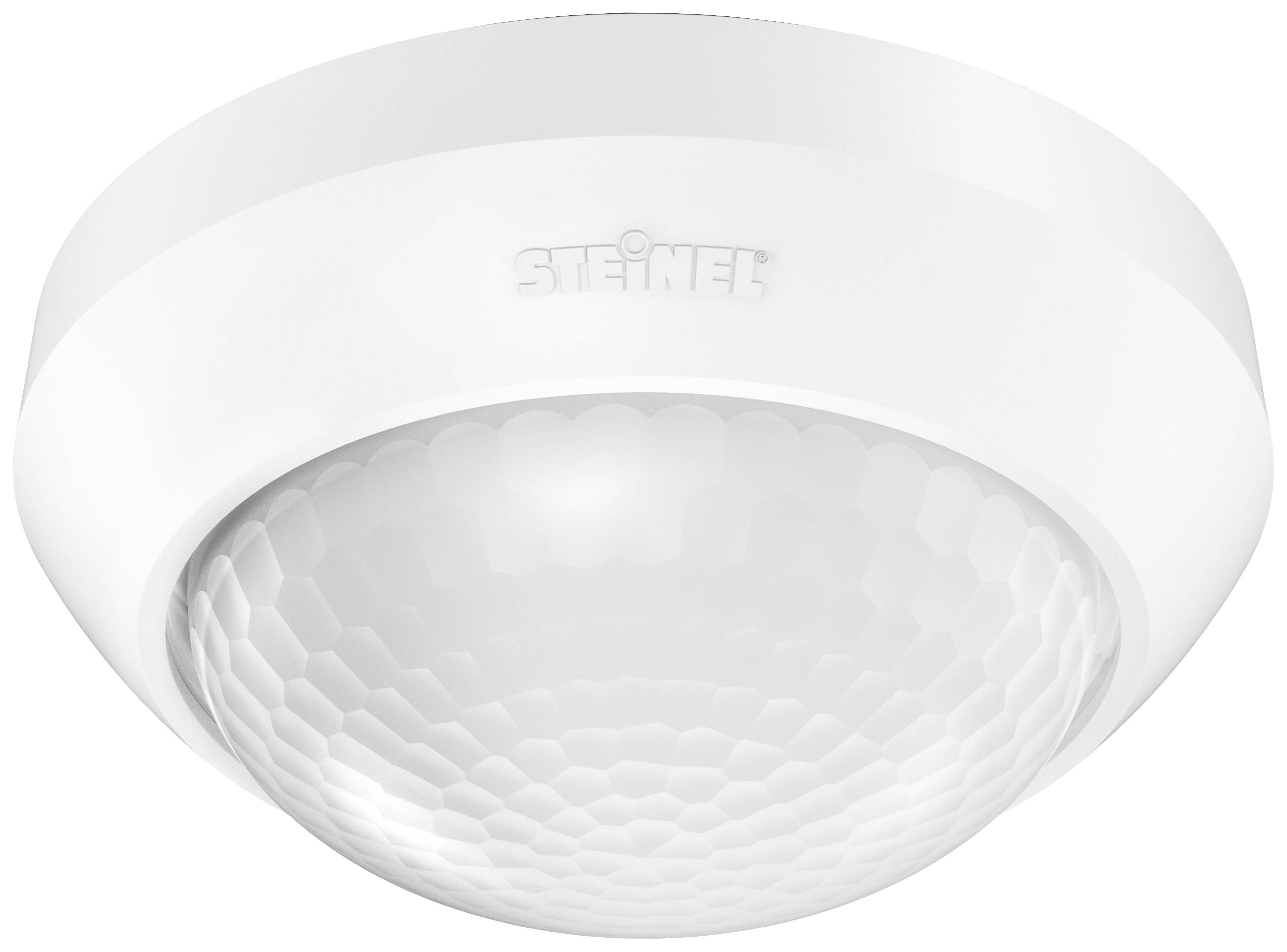

A white ceiling-mounted motion sensor with a round, curved surface. Ideal for automatic lighting control in interior spaces.

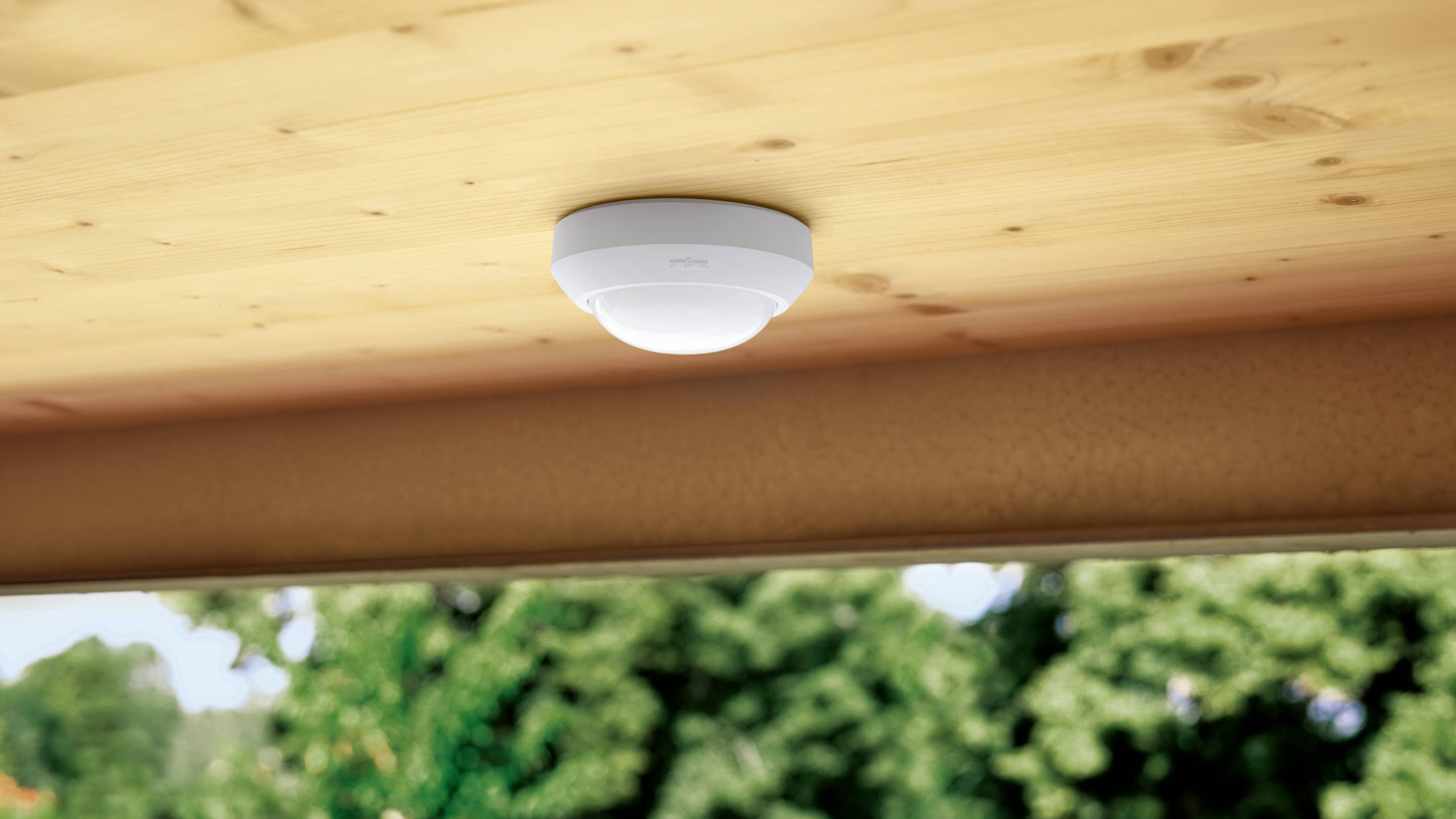

A smoke detector is mounted on a wooden ceiling. Through an open window, blurred green vegetation is visible in the background.

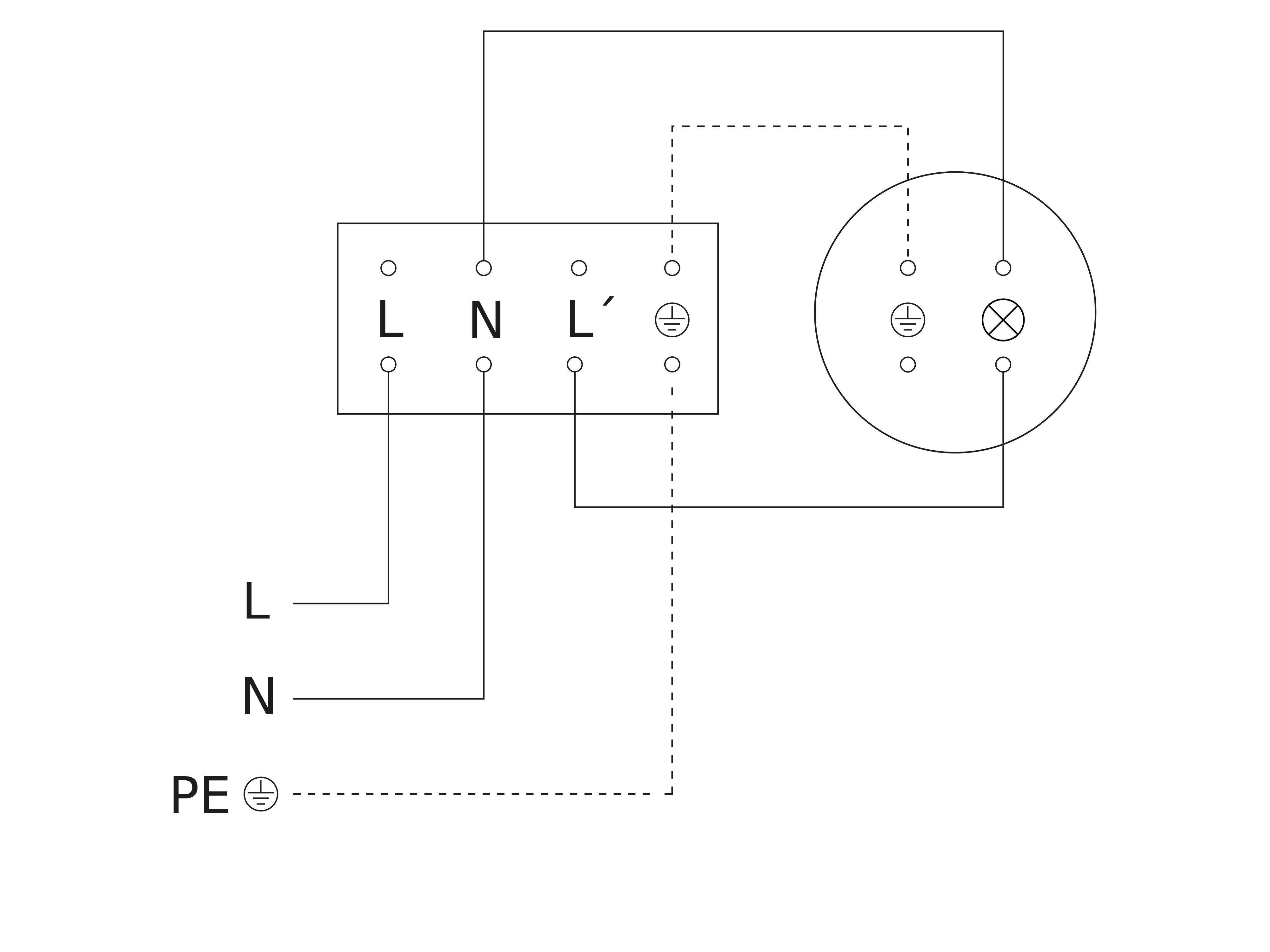

Circuit diagram of a three-phase plug showing phases (L), neutral conductor (N) and protective earth (PE) marked. Connections are illustrated.

A rectangle with a black background and the white word 'YIKES!' in the centre, large and printed in bold.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Steinel motion detector IS 2360-3 ECO white, outdoor surface-mounted ceiling sensor

Ideal for monitoring large areas at the carport and at parking garages
360° PIR detection angle, range up to 12 m
Time and twilight threshold can be set
Capturing range can be adjusted through cover screens
Switching load of up to 2000 W possible

Technical specifications

Mounting height 2.50 - 6.00 m

Product type: PIR motion detector

Detection angle: 360°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount
Ceiling

Operating voltage: 230 V

Switching capacity: 2000 W

Twilight settings: 2 - 1000 lx

Time settings: 5 seconds - 15 min.

Factory colour: White

Similar RAL: 9010

: IP54

Operating temperature: -20 to +50 °C

Type: Passive infra-red

Height: 57 mm

(Ø): 121 mm

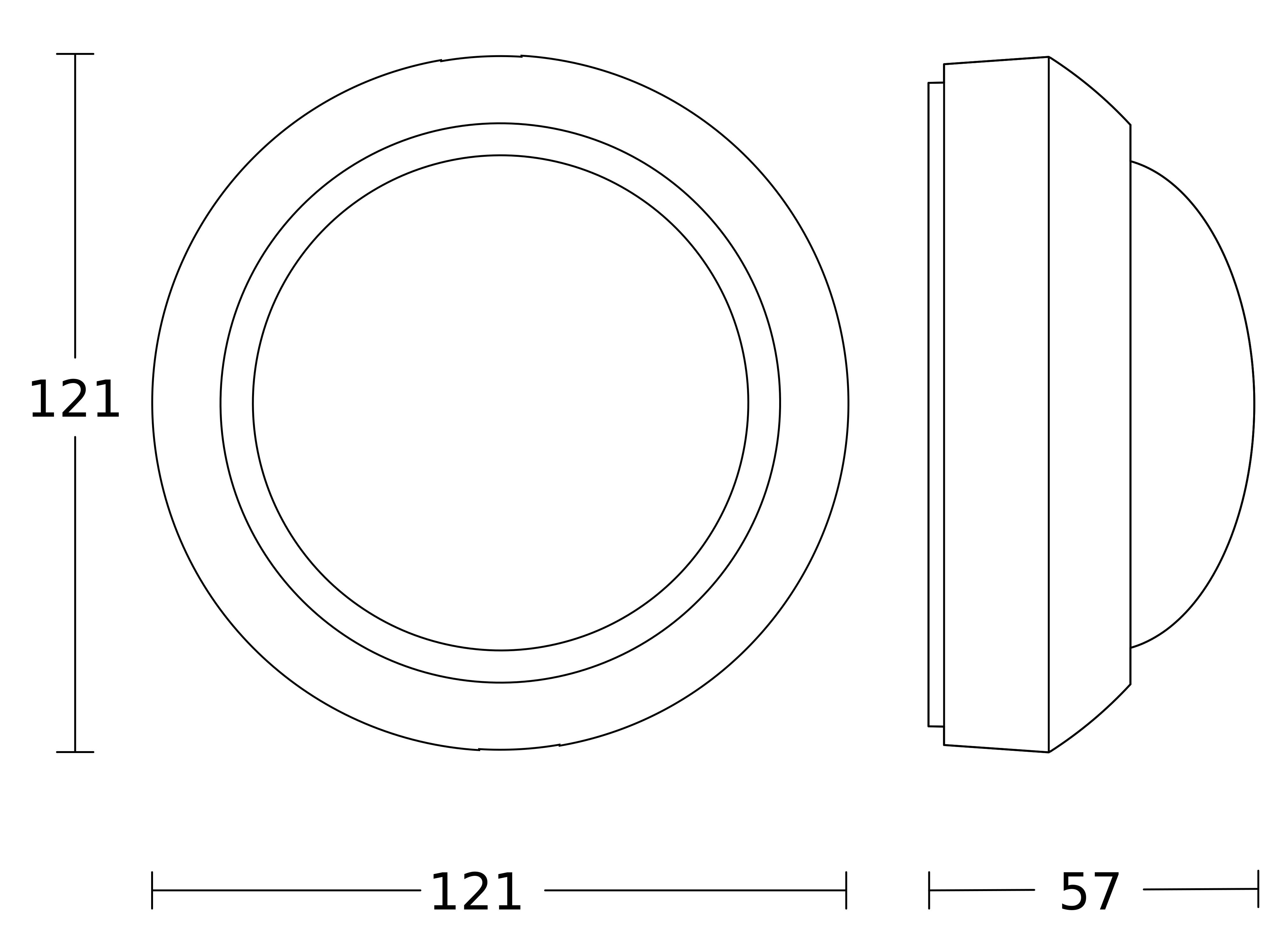

Dim: (Ø x H) 121 mm x 57 mm

Weight: 0

: Surface mounted (plaster)

: White

: Movement sensor

: TRUE

: 57 mm

: 57 mm

: Other

: Other

: AC

: 50-60 MHz

: 121 mm

: FALSE

: Thermoplastic

: 200 A

: Plastic

: 9010

: IP54

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3025495 Steinel 057770 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

User & Safety Instructions

User & Safety Instructions 3025495 Steinel 057770 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

Warranty Terms

Warranty Terms 3025495 Steinel 057770 Surface-mount, Ceiling PIR motion detector 360 ° White IP54

Description

The multi-talent for indoor and outdoor The infrared ceiling sensor that meets all requirements and is really easy to install. Simply ingenious: Sophisticated technology that is mounted and adjusted by a clever installation concept with a few simple steps Thanks to its three Pyro sensors the infrared surface-mounted sensor captures 360° and achieves a range of up to 12 m. With the help of cover plates the capturing range can be adjusted as per the requirement.

This text is machine translated.
