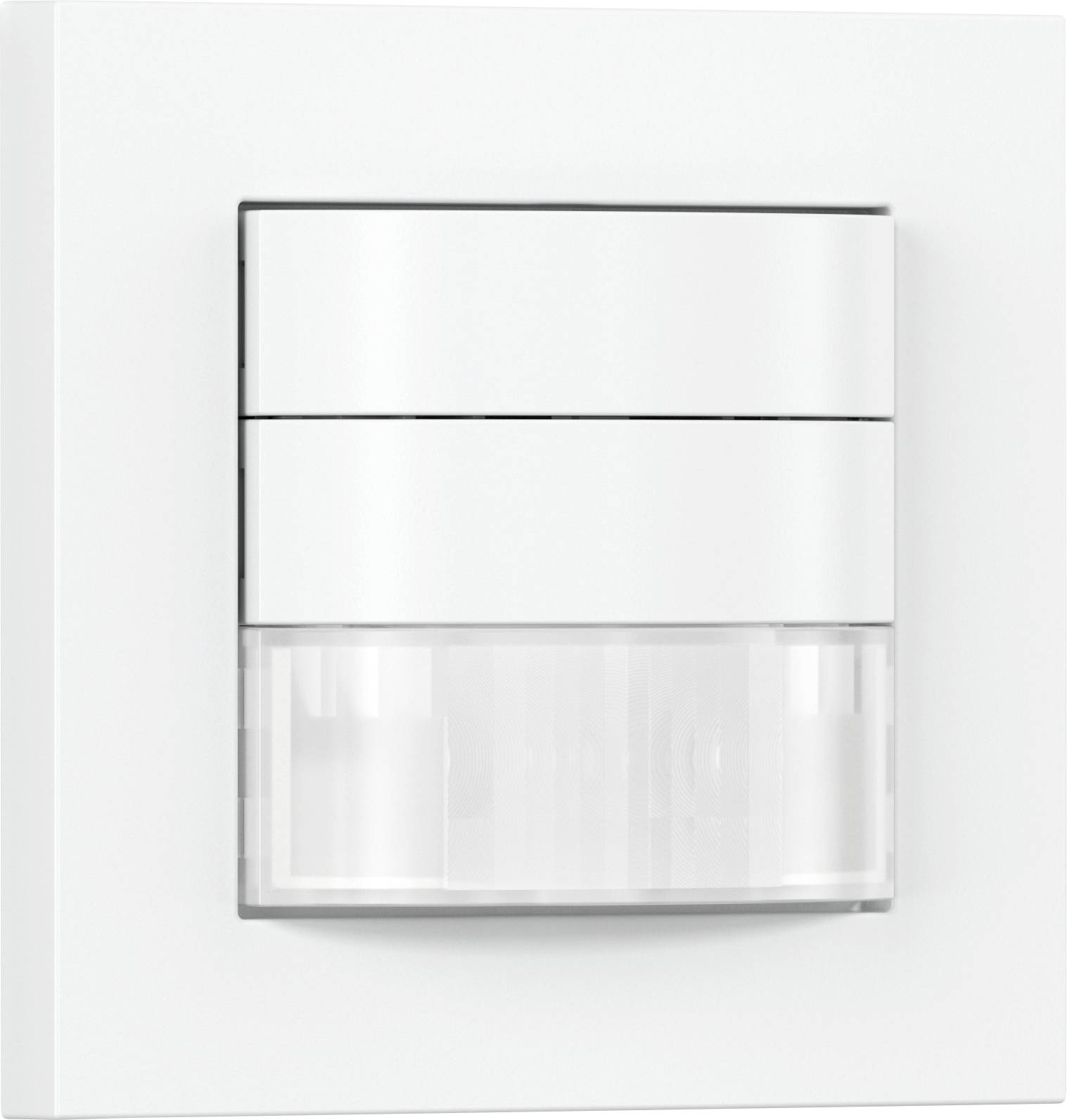

Steinel 058463 Flush mount, Wall PIR motion detector 180 ° White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Steinel sensor switch IR 180 KNX V3.1, occupancy switch, flush-mount motion detector
- Quick and easy 3-wire assembly in new and existing buildings
- 180° PIR detection angle, max. 12 m range
- Built-in button for manual override
- Strong relay provides for a high switching capacity (max. 2000 W)
- Also supplies measured values for temperature and humidity
Technical specifications
- Installation height 1.10 m
- Product type
PIR motion detector
- Detection angle
180°
12 m
- Used at
Indoors
- Mounting type
Flush mount
Wall
- Operating voltage
230 V
- Switching capacity
2000 W
- Twilight settings
2 - 1000 lx
- Time settings
60 seconds - 255 min.
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
0–40 °C
- Type
Passive infra-red
- Length
30 mm
- Width
80 mm
- Height
80 mm
- Dim
(L x W x H) 30 x 80 x 80 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3025503 Steinel 058463 Flush mount, Wall PIR motion detector 180 ° White IP20
User & Safety Instructions
User & Safety Instructions 3025503 Steinel 058463 Flush mount, Wall PIR motion detector 180 ° White IP20
Warranty Terms
Warranty Terms 3025503 Steinel 058463 Flush mount, Wall PIR motion detector 180 ° White IP20
Description
The new standard for infrared sensor switches. New design, intelligent technology, quick assembly. The IR 180 is the solution when infrared sensor switches are present or planned in new or existing buildings with 3-wire cabling. 180 refers to the enormous detection angle of the sensor. Nothing is hidden from him on the left and right. The IR 180 also presents itself in a new design and can be mounted quickly and easily. The KNX version also provides the output of temperature and humidity measurement values.
This text is machine translated.
This text is machine translated.
Features
- PIR wall sensor
Scope of delivery
- Load module
- Sensor module
- Design panel
System requirements
- Flush-mounted socket
