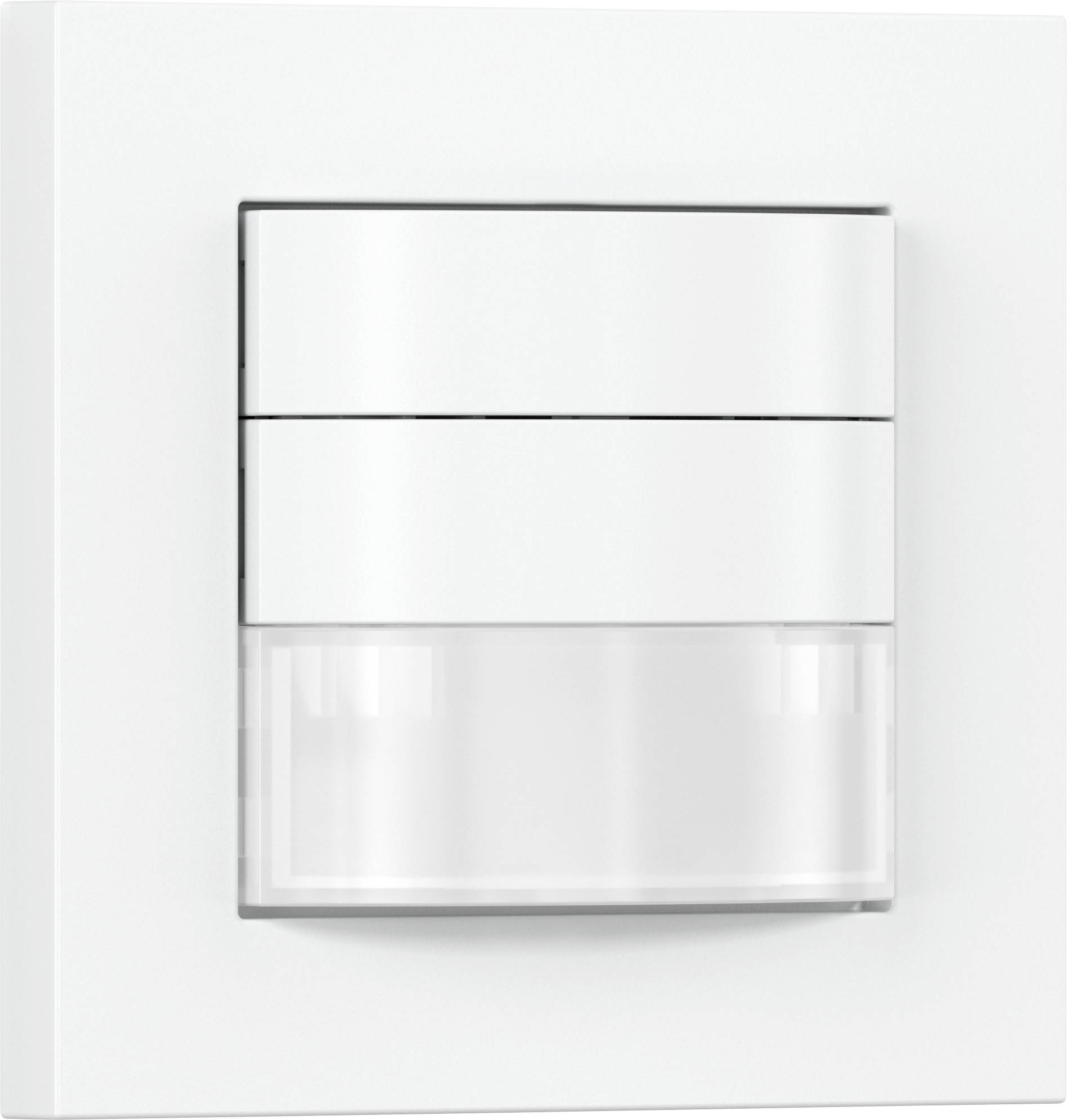

Steinel 059460 Flush mount, Wall HF motion detector 180 ° White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Steinel sensor switch HF 180 KNX V3.1, occupancy switch, flush-mount motion detector
- Quick and easy 3-wire assembly in new and existing buildings
- 180° temperature-independent detection using high-frequency technology , range 1 – 8 m.
- Motion detection also through glass, wood and light-weight walls
- Strong relay provides for a high switching capacity (max. 2000 W)
- Built-in button for manual override
- Also supplies measured values for temperature and humidity
Technical specifications
- Mounting height 1.20 - 2.20 m.
- Product type
HF motion detector
- Detection angle
180°
8 m
- Used at
Indoors
- Mounting type
Flush mount
Wall
- Operating voltage
230 V
- Switching capacity
2000 W
- Twilight settings
2 - 1000 lx
- Time settings
60 seconds - 255 min.
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
0–40 °C
- Type
HF technology
- Length
30 mm
- Width
80 mm
- Height
80 mm
- Dim
(L x W x H) 30 x 80 x 80 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3025505 Steinel 059460 Flush mount, Wall HF motion detector 180 ° White IP20
User & Safety Instructions
User & Safety Instructions 3025505 Steinel 059460 Flush mount, Wall HF motion detector 180 ° White IP20
Warranty Terms
Warranty Terms 3025505 Steinel 059460 Flush mount, Wall HF motion detector 180 ° White IP20
Description
Detects even securely by dividing walls. High-frequency technology meets high class design! The sensor switch HF 180 with a detection angle of 180° satisfies not only technical and functional but also fulfills optically highest demands. The HF-sensors records each movement and switches very quickly. The solution for offices, forerooms and toilet areas, in which the recognition by thin partition walls is desired. Intelligent technology, which not only looks good, but is also easy to install. The KNX version also provides the output of temperature and humidity readings.
This text is machine translated.
This text is machine translated.
Features
- HF wall sensor
Scope of delivery
- Load module
- Sensor module
- Design panel
System requirements
- Flush-mounted socket
