Steinel 067274 Wall Motion detector 180 ° Anthracite IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

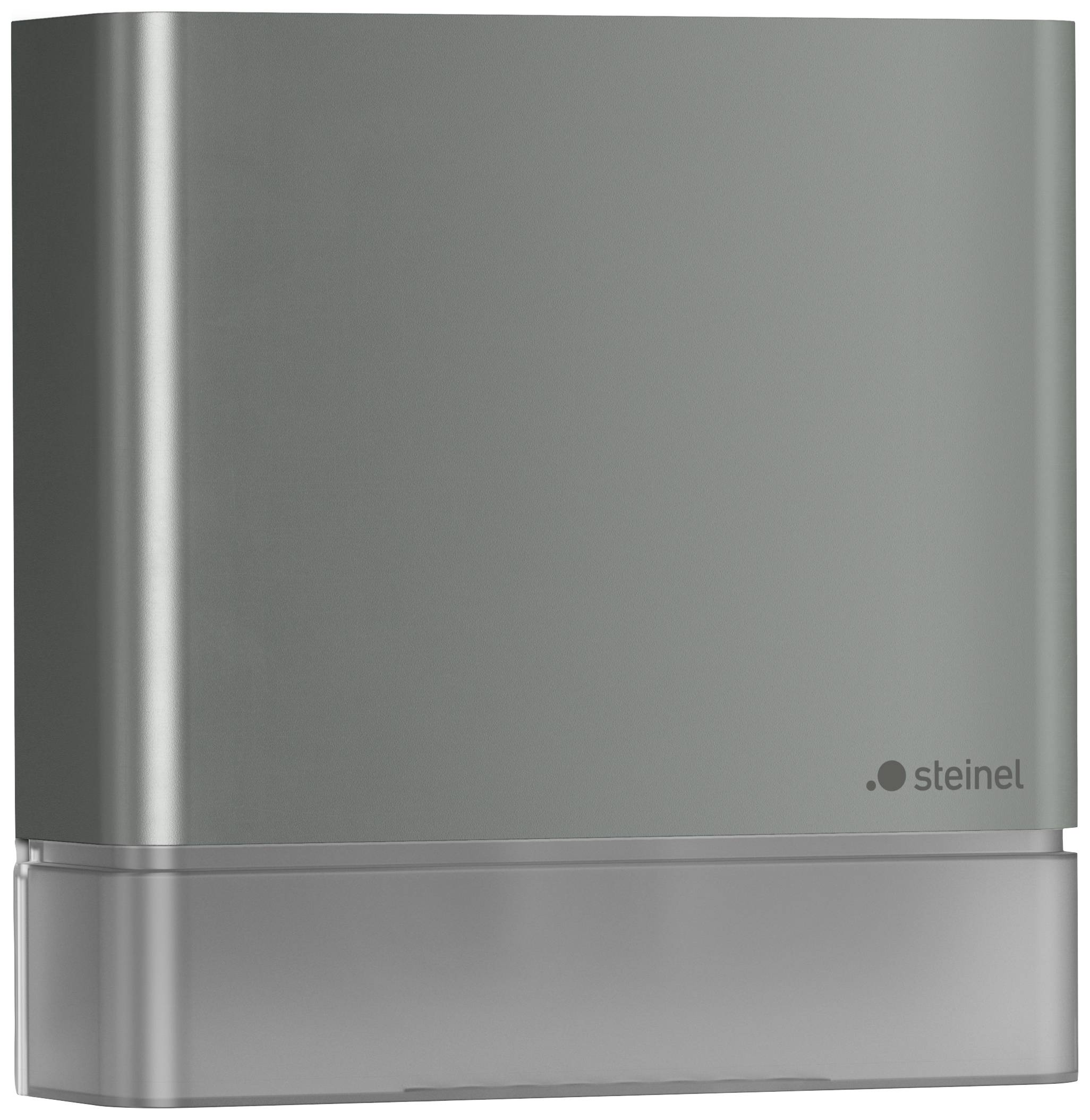

Steinel design motion detector IS 180 digital anthracite, operation via APP
- Flat and modern design - fits every type of buildingHidden infrared sensor technology: Sensor detection independent of the direction of movement3 detection ranges can be set digitally with the Steinel Connect APP100% safe - commissioning engineer decides on further access rightsNetworked with all Steinel Bluetooth Mesh products
Technical specifications
- Product type
Motion detector

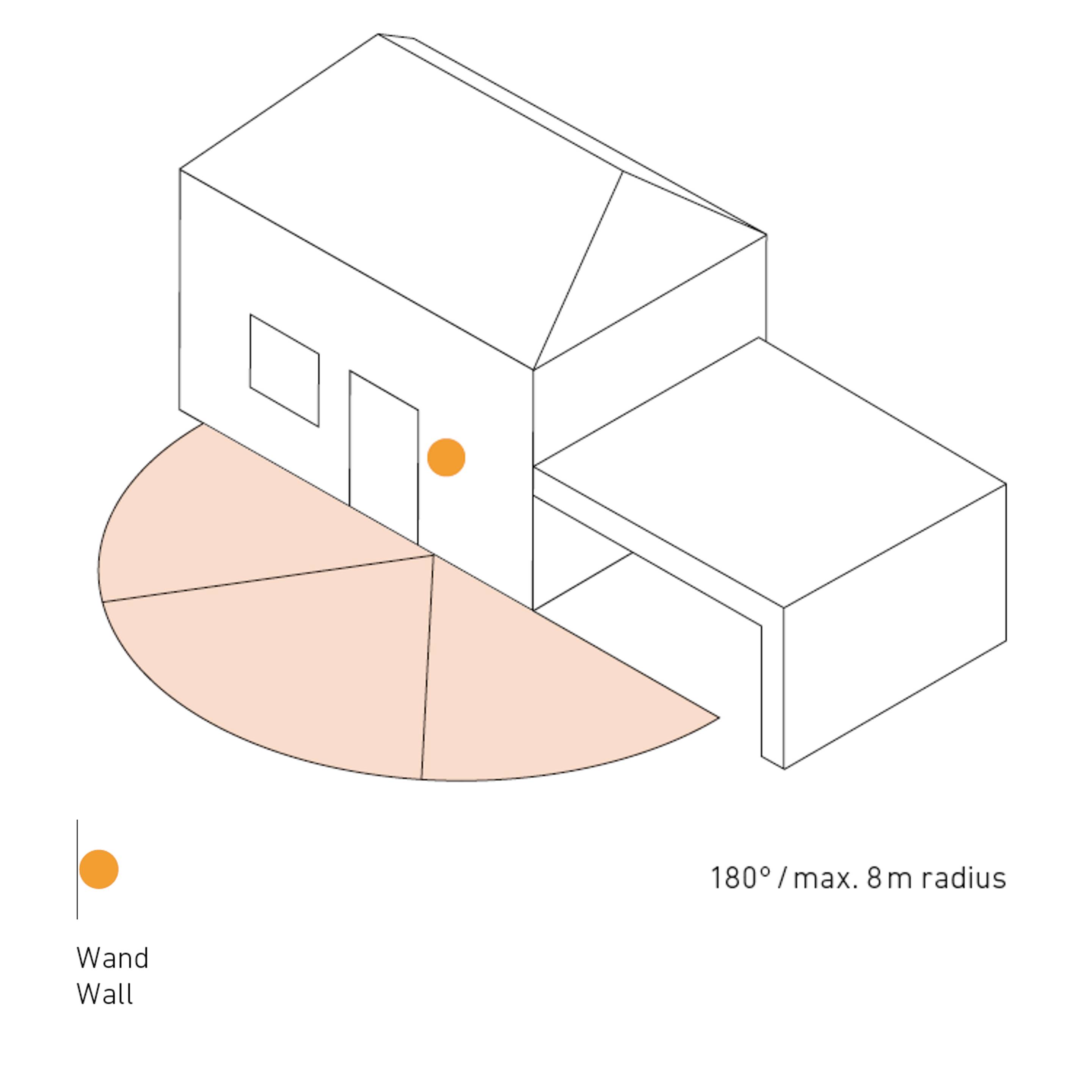

- Detection angle
180°
8 m
- Used at
Outdoors
- Mounting type
Wall
- Operating voltage
230 V
- Switching capacity
1000 W
- Voltage (max.)
240 V
- Switching capacity (LED)
64 W
- Switching capacity (light tubes)
430 W
- Standby current consumption
0.6 W
- Twilight settings
2 - 1000 lx
- Time settings
5 s – 60 min
- Factory colour
Anthracite
IP54
- Length
42 mm
- Width
116 mm
- Height
116 mm
- Dim
(L x W x H) 42 x 116 x 116 mm
- Weight
0.23 kg
- Voltage (min.)
220 V
Surface mounted (plaster)
Anthracite
116
Movement sensor
116 mm
42 mm
50-60 MHz
TRUE
Plastic
7039
220-240 V
IP54
FALSE
FALSE
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2845659 Steinel 067274 Wall Motion detector 180 ° Anthracite IP54
User & Safety Instructions
User & Safety Instructions 2845659 Steinel 067274 Wall Motion detector 180 ° Anthracite IP54
Warranty Terms
Warranty Terms 2845659 Steinel 067274 Wall Motion detector 180 ° Anthracite IP54
Description
Modern look meets innovative technology. The IS 180 Digi presents itself in flat, straight design and boasts a subtle lens design. Thanks to the perfect integration of the lens in the housing, the IS 180 digital appears particularly elegant and inconspicuous as compared to the conventional infrared sensors – and thus always inserts itself optimally in the respective environment. Even the inner values are impressive. With the IS 180 Digi, we have achieved a real breakthrough in terms of infrared sensors. Radial movements can be detected with the 180-degree sensor much more precisely. And the previously very time-consuming delimitation of the sensor range is now much faster and easier than ever, simply digital and zone by zone. The sensitivity is also digitally adjustable for each of the three zones. In conjunction with our newly developed mirror technology, the pyrosensors detect tangential as well as radial movements equally well. This means that the direction of movement is irrelevant within a radius of up to 8 m for the detection quality. Sensors and lights can be easily set, operated and networked via Bluetooth with the help of the Steinel Connect APP.
This text is machine translated.
This text is machine translated.
Features
- Operation via Bluetooth APP3 zone detection range adjustableCan be connected via Bluetooth
Scope of delivery
- In-wall mounting adapterMounting accessories (3 wall screw-plugs, 3 screw)
Hints
Significant improvement in the quality of detection.The technology makes the difference. This innovative motion sensor eliminates the time-consuming task of limiting the sensor range. And lifts the infrared sensor up to a completely new level as a digitally adjustable 180-degree sensor. Through the combination of three pyrosensors and an innovative mirror technology, we have succeeded in bringing the radial approach to tangential detection. The direction of movement is irrelevant within a radius of up to 8 m for the detection quality. As compared to the conventional infrared motion detectors, the IS 180 Digi provides a clear better detection.
System requirements
- IOS, Android
