Steinel 081706 Surface-mount, Ceiling PIR motion detector 360 ° Black IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

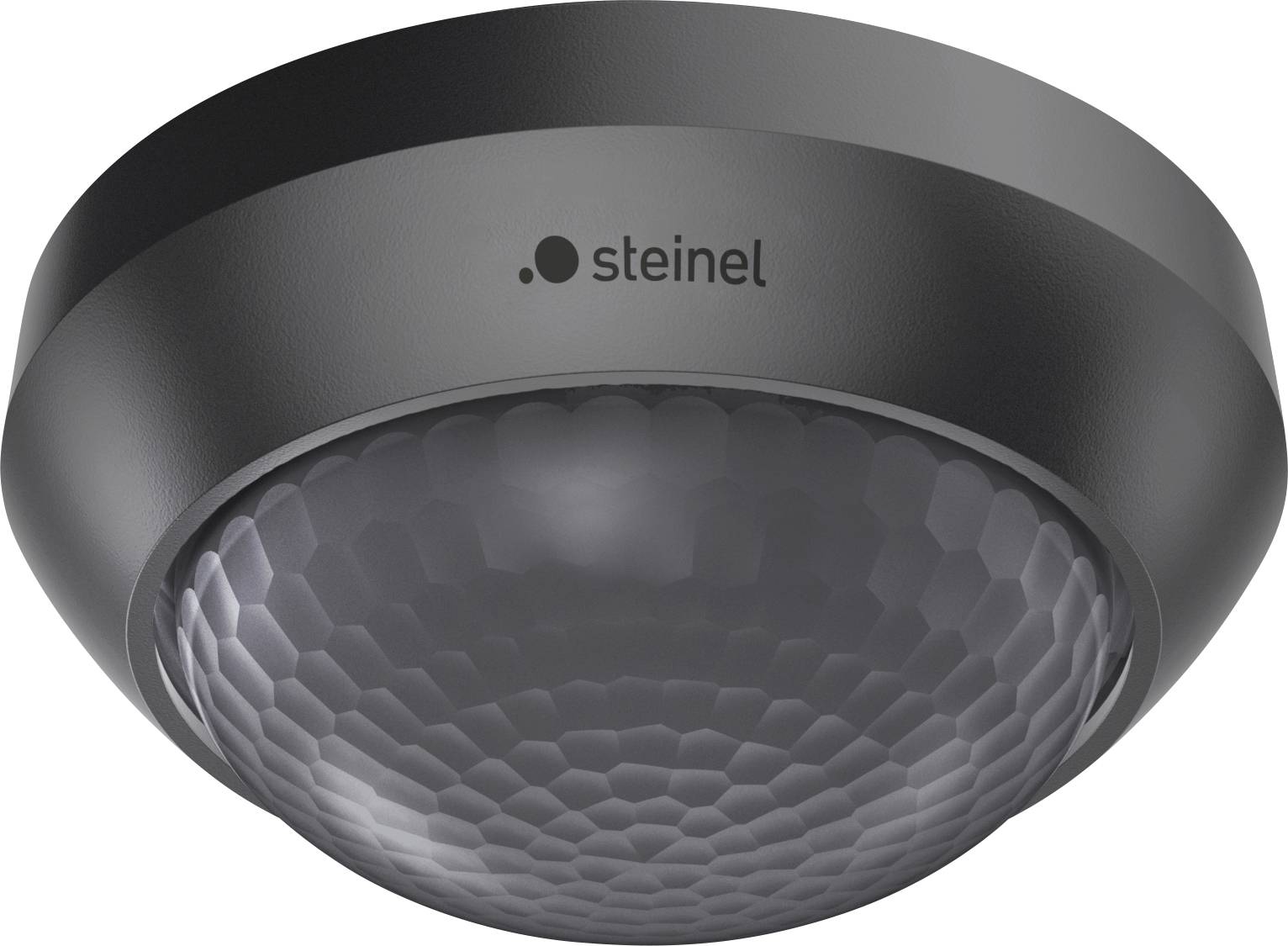

Steinel motion detector IS 2360-3 ECO black, surface-mounted outdoor ceiling sensor
- Ideal for monitoring large areas at the carport and at parking garages
- 360° PIR detection angle, range up to 12 m
- Time and twilight threshold can be set
- Capturing range can be adjusted through cover screens
- Switching load of up to 2000 W possible
Technical specifications
- Mounting height 2.50 - 6.00 m
- Product type
PIR motion detector
- Detection angle
360°
12 m
- Used at
Indoors
Outdoors
- Mounting type
Surface-mount
Ceiling
- Operating voltage
230 V
- Switching capacity
2000 W
- Twilight settings
2 - 1000 lx
- Time settings
5 seconds - 15 min.
- Factory colour
Black
- Similar RAL
9005
IP54
- Operating temperature
-20 to +50 °C
- Type
Passive infra-red
- Height
57 mm
- (Ø)
121 mm
- Dim
(Ø x H) 121 mm x 57 mm
Surface mounted (plaster)
Black
Movement sensor
TRUE
57 mm
57 mm
Other
Other
AC
50-60 MHz
121 mm
FALSE
Thermoplastic
200 A
Plastic
IP54
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3025494 Steinel 081706 Surface-mount, Ceiling PIR motion detector 360 ° Black IP54
User & Safety Instructions
User & Safety Instructions 3025494 Steinel 081706 Surface-mount, Ceiling PIR motion detector 360 ° Black IP54
Warranty Terms
Warranty Terms 3025494 Steinel 081706 Surface-mount, Ceiling PIR motion detector 360 ° Black IP54
Description
The multi-talent for indoor and outdoor The infrared ceiling sensor that meets all requirements and is really easy to install. Simply ingenious: Sophisticated technology that is mounted and adjusted by a clever installation concept with a few simple steps Thanks to its three Pyro sensors the infrared surface-mounted sensor captures 360° and achieves a range of up to 12 m. With the help of cover plates the capturing range can be adjusted as per the requirement.
This text is machine translated.
This text is machine translated.
Features
- Sensor lens in housing color
- Settings via Potentiometer
Scope of delivery
- Sensor cover plates
