Steinel 089269 Power supply EEC A (A - G) 230 V 1.5 m 32.5 mm Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 5 Piece(s) available
Highlights & Details

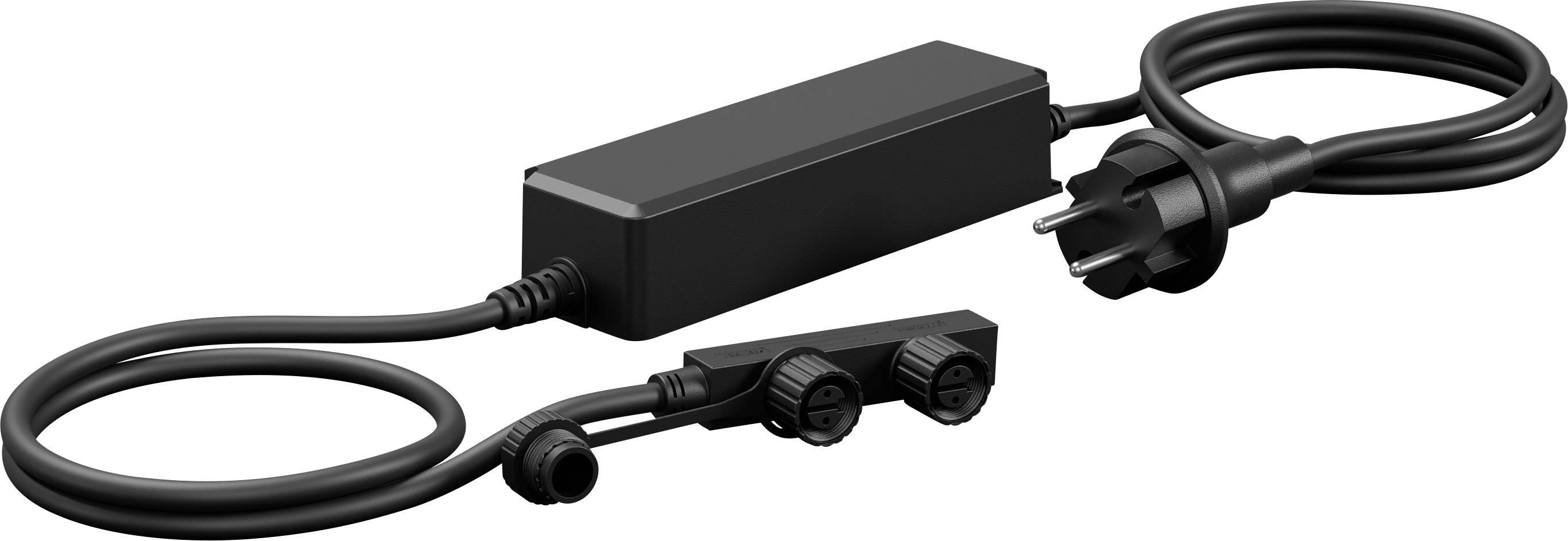

Steinel power supply 100W, transformer for 24V light system, 2 outputs
- Reliably supplies all connected 24V-lamps up to max. 100W and a maximum system length of 30m
- Easy commissioning via normal 230V socket
- Plug & Play: Easy to assemble – no tools or expertise required
- Compatible with all components of the 24V garden lighting system
- Robust and reliable: Suitable for all year round outdoor use thanks to IP67 (IP44 power supply)
- 2 outputs: For flexible expansions in light system (including cover cap for unused output)
- A 0.75 m long cable is present on each side of the power supply
Technical specifications
- Protection: Mains plug IP44, power supply IP67
- Ambient temperature -20 to 40 °C.
- Product dimension height: 33 mm (or 32.5 mm according to drawing)
- Protection class: II
- Suitable for constant voltage: Yes
- Suitable for constant current: No.
- Product type
Power supply
A (A - G)
- Operating voltage
230 V
100 W
- Dim
(L x W x H) 156 x 47.6 x 32.5 mm
- Factory colour
Black
- Material
Plastic
IP44
IP67
- Weight
0.618 kg
- Cable length
1.5 m
- Width
47.6 mm
- Length
156 mm
- Depth
156 mm
- Height
32.5 mm
- Protection class
II
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3742860 Steinel 089269 Power supply EEC A (A - G) 230 V 1.5 m 32.5 mm Black
User & Safety Instructions
User & Safety Instructions 3742860 Steinel 089269 Power supply EEC A (A - G) 230 V 1.5 m 32.5 mm Black
Warranty Terms
Warranty Terms 3742860 Steinel 089269 Power supply EEC A (A - G) 230 V 1.5 m 32.5 mm Black
Description
The central energy source for your lighting system.

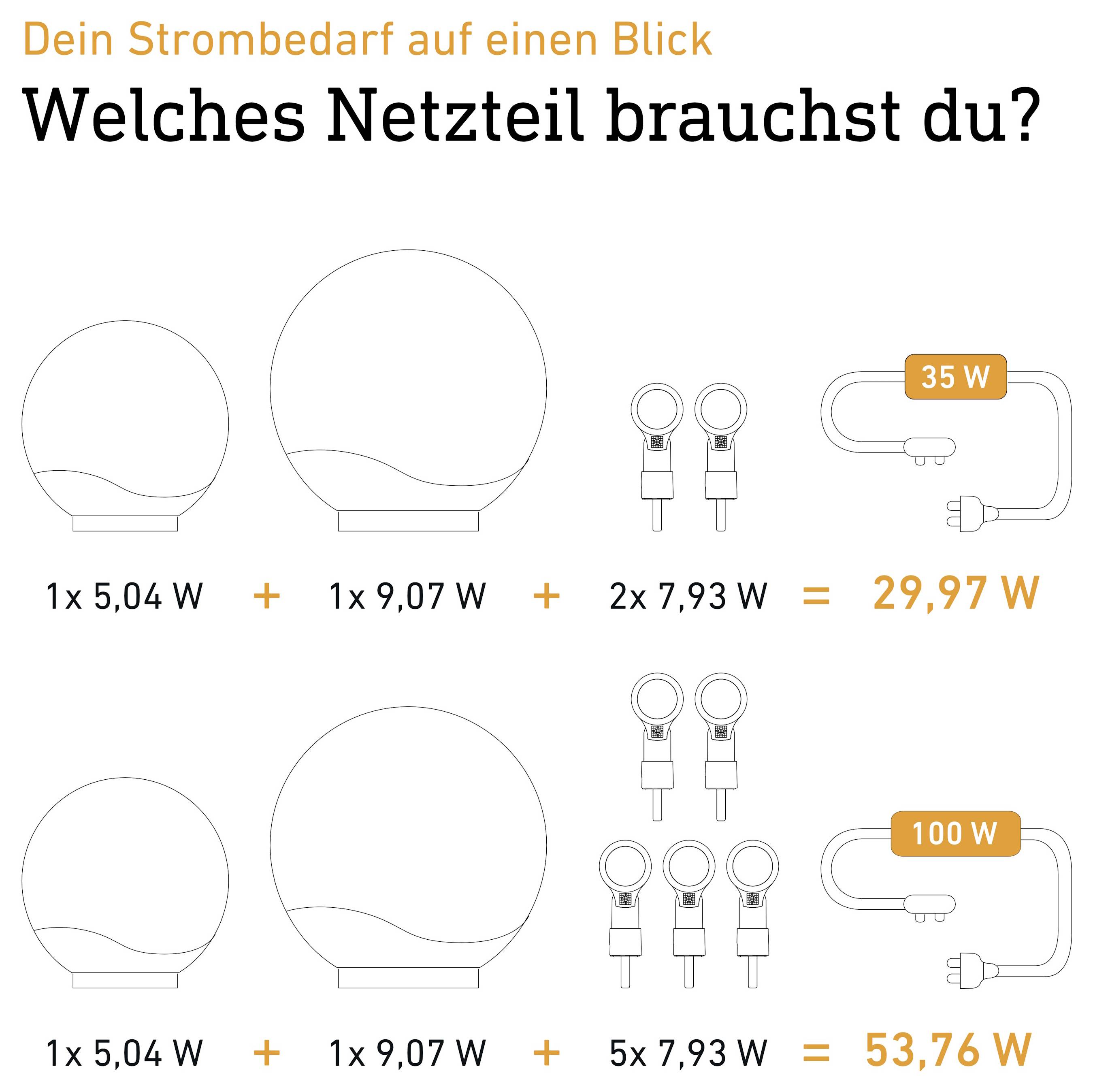

The power supply forms the heart of your 24 V garden lighting system. It is simply connected to a conventional 230 V plug socket and supplies power to all the connected lamps. Thanks to Plug & Play, the system can be easily expanded in any way - with suitable cables of different lengths as well as different connectors. The power supply is available in two versions with 35W or 100W power – for small accents or large light productions.
This text is machine translated.
The power supply forms the heart of your 24 V garden lighting system. It is simply connected to a conventional 230 V plug socket and supplies power to all the connected lamps. Thanks to Plug & Play, the system can be easily expanded in any way - with suitable cables of different lengths as well as different connectors. The power supply is available in two versions with 35W or 100W power – for small accents or large light productions.
This text is machine translated.
Features
- 2 Outputs
Scope of delivery
- 1x adapter 100 W 24V
