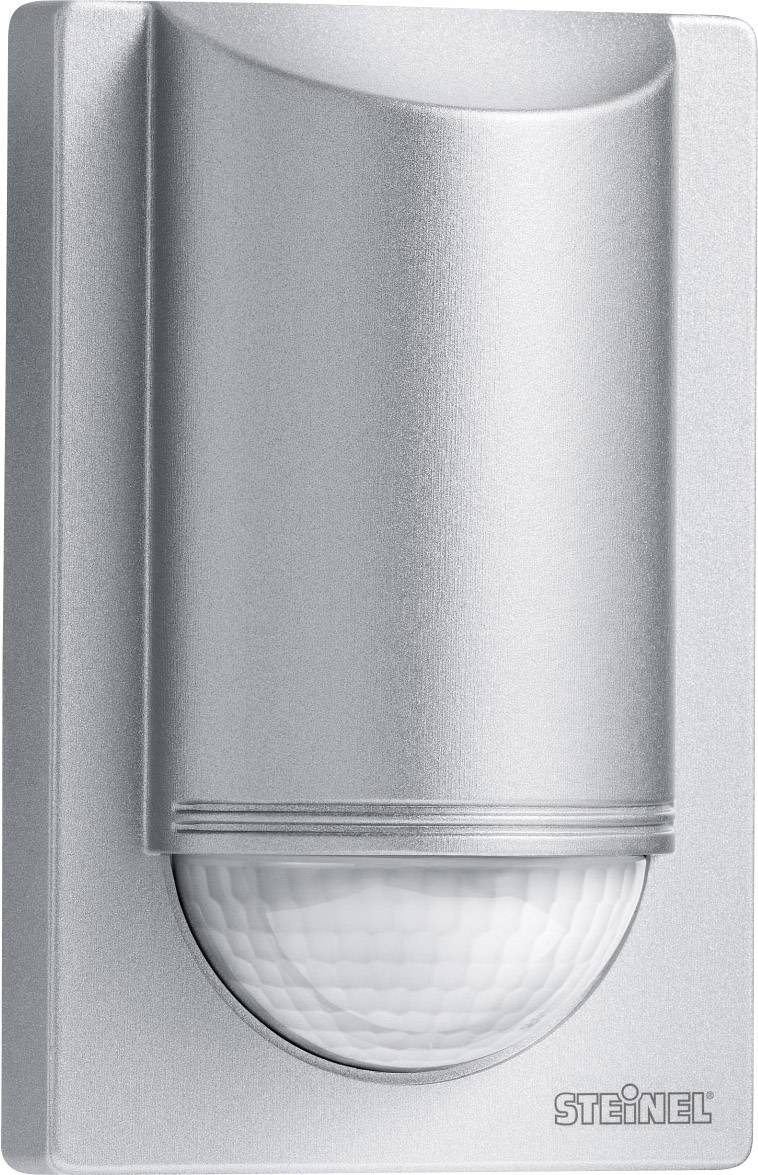

Steinel 603915 Wall, Surface-mount Motion detector 180 ° Silver IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
14-day return policy included
Highlights & Details
Motion detector IS 2180-2
- For outdoor use
- up to 10 detection levels with 504 switching zones
- 180° detection angle with 90° opening angle
- Continuous light operation adjustable
Technical specifications
- Teach function for the light-intensity threshold: No
- Sneak/field monitoring: Yes
- II proctection rating.
- Product type
Motion detector
- Detection angle
180°
12 m
- Used at
Outdoors
- Mounting type
Wall
Surface-mount
- Operating voltage
230 V
- Switching capacity (light bulbs)
1000 W
- Switching capacity (light tubes)
500 W
- Standby current consumption
1 W
- Twilight settings
2 - 2000 lx
- Time settings
10 Sec. - 15 mins.
- Factory colour
Silver
IP54
- Operating temperature
-20 - +50 °C
- Type
Passive infrared
- Length
55 mm
- Width
78 mm
- Height
120 mm
- Dim

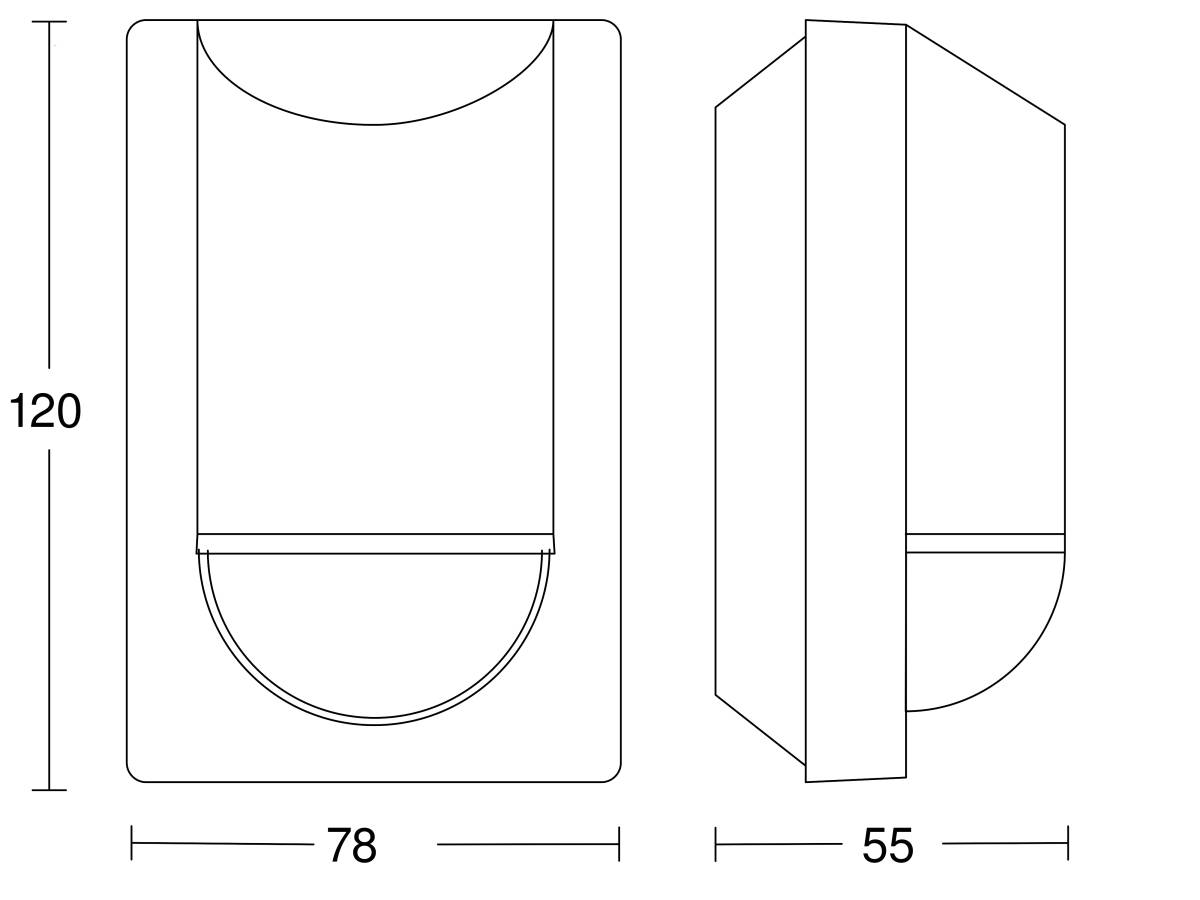

(L x W x H) 55 x 78 x 120 mm
- Weight
0.24
Surface mounted (plaster)
Silver
78
Movement sensor
TRUE
55 mm
55 mm
Other
Other
AC
50-50 MHz
FALSE
Thermoplastic
110 A
Plastic
9006
IP54
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1598067 Steinel 603915 Wall, Surface-mount Motion detector 180 ° Silver IP54
User & Safety Instructions
User & Safety Instructions 1598067 Steinel 603915 Wall, Surface-mount Motion detector 180 ° Silver IP54
Warranty Terms
Warranty Terms 1598067 Steinel 603915 Wall, Surface-mount Motion detector 180 ° Silver IP54
Description
High-performance in the form completion: the IS 2180-2
Do you want to monitor building fronts and land of average size? The IS for an extremely precise and reliable monitoring of 2180-2 brings surfaces up to 200 m² the exactly fitting technical equipment with: a multi-lens, the detection area in 504 switching zones and 10 levels which divides, a detection angle of 180° relative to an opening angle of 90° and a maximum range of 12 meters. The total switching capacity of the wall sensor is 1,000 watts. In addition, bribes it through its perfect design, the high-performance with well thought-out design perfectly combines. Just the right choice for land, operating, and outdoor plants or building fronts medium in size.
This text is machine translated.
Do you want to monitor building fronts and land of average size? The IS for an extremely precise and reliable monitoring of 2180-2 brings surfaces up to 200 m² the exactly fitting technical equipment with: a multi-lens, the detection area in 504 switching zones and 10 levels which divides, a detection angle of 180° relative to an opening angle of 90° and a maximum range of 12 meters. The total switching capacity of the wall sensor is 1,000 watts. In addition, bribes it through its perfect design, the high-performance with well thought-out design perfectly combines. Just the right choice for land, operating, and outdoor plants or building fronts medium in size.
This text is machine translated.
Features
- Ideal for 2 m installation height
- 180° detection angle
- Maximum range 12 m, or max. 5 m (tangential)
- Time and twilight threshold can be set
- Continuous light operation.
Scope of delivery
- Motion detector
