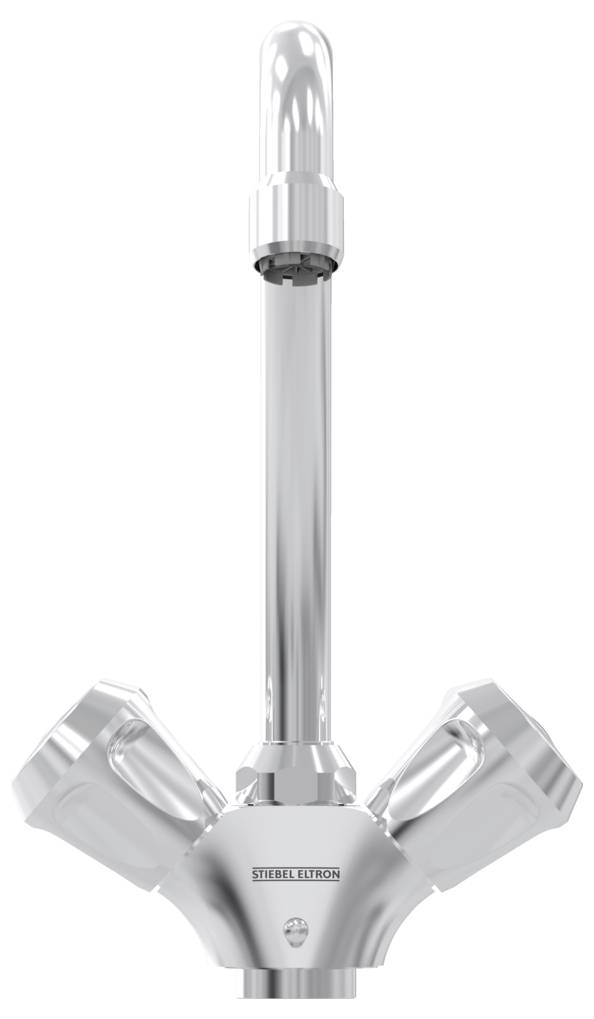

Stiebel Eltron 205613
EAN:
Part number:
Item no:
Technical specifications
- Design: Mechanical
- Protection class (IP): Other
- Surface protection: Chrome-plated
- With transformer: No.
- Surface treatment: Polished
- Type of power supply: Other
- Mounting: Plate/dashboard hole
- Supply line connection: Hose (screw connection)
- Temperature control version: Manual operation
- Type of handle: Two-grip
- Type of electronic operation: Other
- Self-sealing: No.
- Material: Tap: Brass
- Base color: Chrome
- Accent color: Chrome
- Number of fittings: 1 holes
- Feeder terminal dimension: 3/8 inch (10)
- Design process: Top can be rotated
- Outlet type: Tube
- Mouthpiece tap: Jet regulator
- Pull-out inlet with perlator: No.
- Extendable inlet with hand shower: No.
- With shut-off valve for connecting external devices: No.
- With couplings: No.
- With chain eyelet: Yes
- With chain: No.
- With waste stopper: No.
- With temperature limit: No.
- Cold-start function: No.
- Return flow protection according to EN 1717: AA, without reverse current protection
- With spring back resistance for max. Warm water temperature: No.
- With bypass stop for flow limitation: No.
- Volume flow class Z
- With spring back resistance for max. Flow rate: No.
- Total height 234 mm
- Installation height lower edge of tap outlet 172 mm
- Lead edge - 150 mm
- Low pressure version: No.
- Removable under water pressure: No.
- Rinsing time adjustable: No.
- Automatic flushing cycle: No.
- Programming: Manual
- With building control system connection: No.
- Suitable for boiling water: No.
- Pull-out side shower: No.
- With rosettes: No.
- Tap can be folded in (bayonet): No.
- Product type
Thermostat tap
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552397 Stiebel Eltron 205613
Description
Description
The pressure-free temperatur-valve with swivel outlet and two turning handles is suitable for washbasins.
Convenient setting of the mixed water temperature and water quantity through two turning knobs.
The amount of mixed water in the small storage tank is used optimally.
This text is machine translated.
The pressure-free temperatur-valve with swivel outlet and two turning handles is suitable for washbasins.
Convenient setting of the mixed water temperature and water quantity through two turning knobs.
The amount of mixed water in the small storage tank is used optimally.
