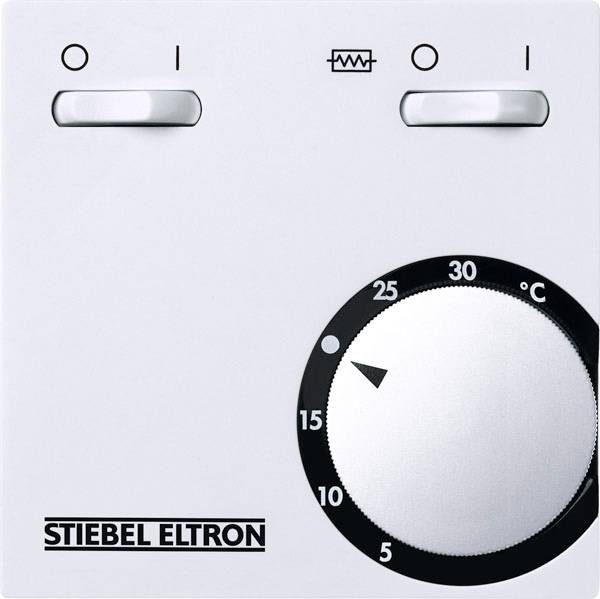

Stiebel Eltron 231063 RTNZ-S2 Indoor thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
STIE ROOM TEMPERATURE REGULATOR RTNZ-S2 231063
- Wall mounting
- On/Off switch
- Switching capacity ~10(4) A, 250 V.
- On/off switch for additional heating
Technical specifications
- Hysteresis 0.5 K
- Ambient temperature: 0 - 55 °C
- Dimensioning surge voltage: 4 KV
- Permissible relative humidity (non-condensing): 95%
- Protection class: II
- Product type
Indoor thermostat
- Operation type
mechanical
- Max. temperature setting
30 °C
- Temperature settings
3 up to 30 °C
- Compatible with
Underfloor heating
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
10 A
- Nighttime drop
Yes
- Factory colour
White
- Similar RAL
9010
- Width
75 mm
- Height
26 mm
- Length
75 mm
IP30
- Dim
(L x W x H) 75 x 75 x 26 mm
- Min. temperature setting
3 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906655 Stiebel Eltron 231063 RTNZ-S2 Indoor thermostat Flush mount 1 pc(s)
Warranty Terms
Warranty Terms 1906655 Stiebel Eltron 231063 RTNZ-S2 Indoor thermostat Flush mount 1 pc(s)
Description
The exact degree temperature setting and the simple operation characterize this temperature controller. The RTNZ-S2 has a thermal feedback and ensures a constant room temperature with its low switching difference of only +/- 0.5 K.
This text is machine translated.
This text is machine translated.
Features
- Temperature reduction of approx. 4 K via external switch/timer
- Temperature range restriction in the controller head
- Two-point room temperature controller for surface mounting.
