Stiebel Eltron 238821
EAN:
Part number:
Item no:
Highlights & Details

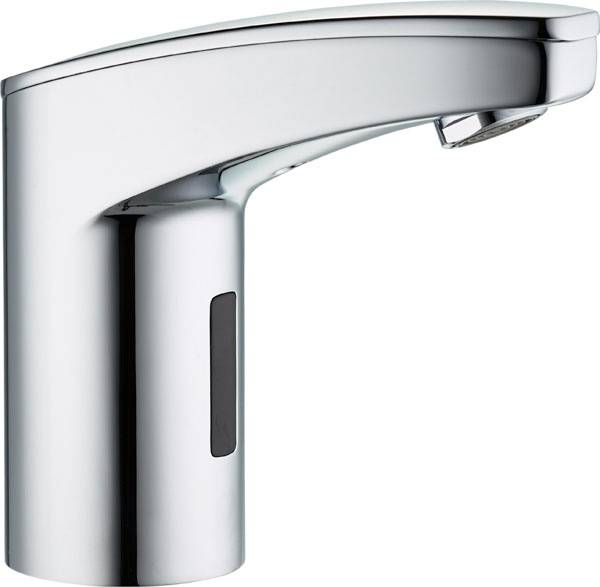

Sensor-fitting WSN 10
- Sensor fitting for open (pressure-free) small storage tanks or flow-type water heaters
- Fully automatic sensor adjustment
- No maintenance by the plug-in power unit (no battery change)
Technical specifications
- Application: Wash basin
- Open type: X
- Mounting type: Single-hole battery
- Surface: Chrome-plated
- Connection: Connection hoses
- Min flow rate: 5 l/min
- Minimum flow pressure 0.1 MPa
- Max. Hot water temperature: 80 degrees C.
- Nominal voltage: 230 V
- Mains connection: Plug-in power supply
- Max. Current load power supply: 16 A.
- Power consumption standby: 0.3 W
- Discharge height 103 mm
- Nosing: 103 mm
- Weight: 3.14 kg.
- Product type
Wash basin tap
- Swivel-type
No
- Suitable for accumulators
No
- Mounting type
Table
- Factory colour
Chrome
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907261 Stiebel Eltron 238821
Warranty Terms
Warranty Terms 1907261 Stiebel Eltron 238821
Description
APPLICATION:
Non-contact electronic sensor fitting in pressure-free design for open (pressure-free) small storage tanks or flow-type water heaters.
EQUIPMENT AND COMFORT: The non-contact operation and activated automatic hygiene circuit ensures the highest possible hygiene standards. Low water consumption thanks to infrared sensors (fully automatic setting), functional solenoid valve (low pressure shock) and savings beam controller. Freely selectable or fixed temperature possible. Short-off for cleaning the sink, permanent-on for filling. Adjustable water follow-up time and sensor sensitivity via touch operation. Modern design for all areas of application in trade, public facilities or for private applications.
INSTALLATION AND SERVICE:
Simple installation like conventional single-lever mixer. Sensor fitting with plug-in power supply for maintenance-free operation (no battery change necessary). Flexible pressure hoses for hot and cold water connection. Modular monoblock without base. Compatible with service monitor for control of stored operating data, settings and control of functions.
SAFETY AND QUALITY:
Adjustable hot water barrier. Built-in check valve and dirt filter. Chrome-plated, robust metal housing
This text is machine translated.
Non-contact electronic sensor fitting in pressure-free design for open (pressure-free) small storage tanks or flow-type water heaters.
EQUIPMENT AND COMFORT: The non-contact operation and activated automatic hygiene circuit ensures the highest possible hygiene standards. Low water consumption thanks to infrared sensors (fully automatic setting), functional solenoid valve (low pressure shock) and savings beam controller. Freely selectable or fixed temperature possible. Short-off for cleaning the sink, permanent-on for filling. Adjustable water follow-up time and sensor sensitivity via touch operation. Modern design for all areas of application in trade, public facilities or for private applications.
INSTALLATION AND SERVICE:
Simple installation like conventional single-lever mixer. Sensor fitting with plug-in power supply for maintenance-free operation (no battery change necessary). Flexible pressure hoses for hot and cold water connection. Modular monoblock without base. Compatible with service monitor for control of stored operating data, settings and control of functions.
SAFETY AND QUALITY:
Adjustable hot water barrier. Built-in check valve and dirt filter. Chrome-plated, robust metal housing
This text is machine translated.
Features
- Optimum hygiene through contact-free operation
- Reduces water and energy consumption
- Mixed water temperature can be set
- Hygiene rinse can be activated (in 12 h or 24 h rhythm)
- Extensive function settings for a comfortable operation
Scope of delivery
- Sensor-fitting WSN 10
- Power supply unit
- User manual.
