Stiebel Eltron 238822
EAN:
Part number:
Item no:
Technical specifications
- Design: Electronic
- Protection class (IP) IP54
- Surface protection: Chrome-plated
- With transformer: Yes
- Surface treatment: Polished
- Type of power supply: Battery
- Connection voltage 6 V
- Mounting: Plate/dashboard hole
- Max. Flow temperature 80°C.
- Supply line connection: Hose (screw connection)
- Temperature control version: Manual operation
- Type of handle: No grip
- Type of electronic operation: Sensor
- Self-sealing: Yes
- Material: Tap: Brass
- Base color: Chrome
- Accent color: Chrome
- Number of fittings: 1 holes
- Central distance 103 mm
- Feeder terminal dimension: 3/8 inch (10)
- Execution process: Fixed top
- Outlet type: Tube
- Mouthpiece tap: Jet regulator
- Pull-out inlet with perlator: No.
- Extendable inlet with hand shower: No.
- With side shower: No.
- With shut-off valve for connecting external devices: No.
- Type of shut-off valve for external device: Electronic
- With couplings: Yes
- With Rosette/Cover plate: No.
- With drain valve: No.
- Type of drain fitting: Other
- With chain eye: No.
- With chain: No.
- With waste stopper: No.
- With temperature limit: Yes
- Spray protection: No.
- With pre-filter: No.
- Cold-start function: No.
- Return flow protection according to EN 1717: EB
- With spring back resistance for max. Warm water temperature: No.
- Max. PTO capacity (at 300 kPa): 5 l/min.
- With bypass stop for flow limitation: No.
- Volume flow class: Without
- With spring back resistance for max. Flow rate: No.
- Total height 131 mm
- Installation height lower edge of tap outlet 103 mm
- Lead edge - 143 mm
- Noise class according to EN ISO 3822: Without
- Low pressure version: Yes
- Removable under water pressure: No.
- Reserve of runtime battery: Yes
- Rinsing time adjustable: Yes
- Rinsing time: 30..1200 s
- Automatic purge cycle: Yes
- Frequency of rinsing cycle: 12..48 h
- Programming: Manual
- With building control system connection: No.
- Product type

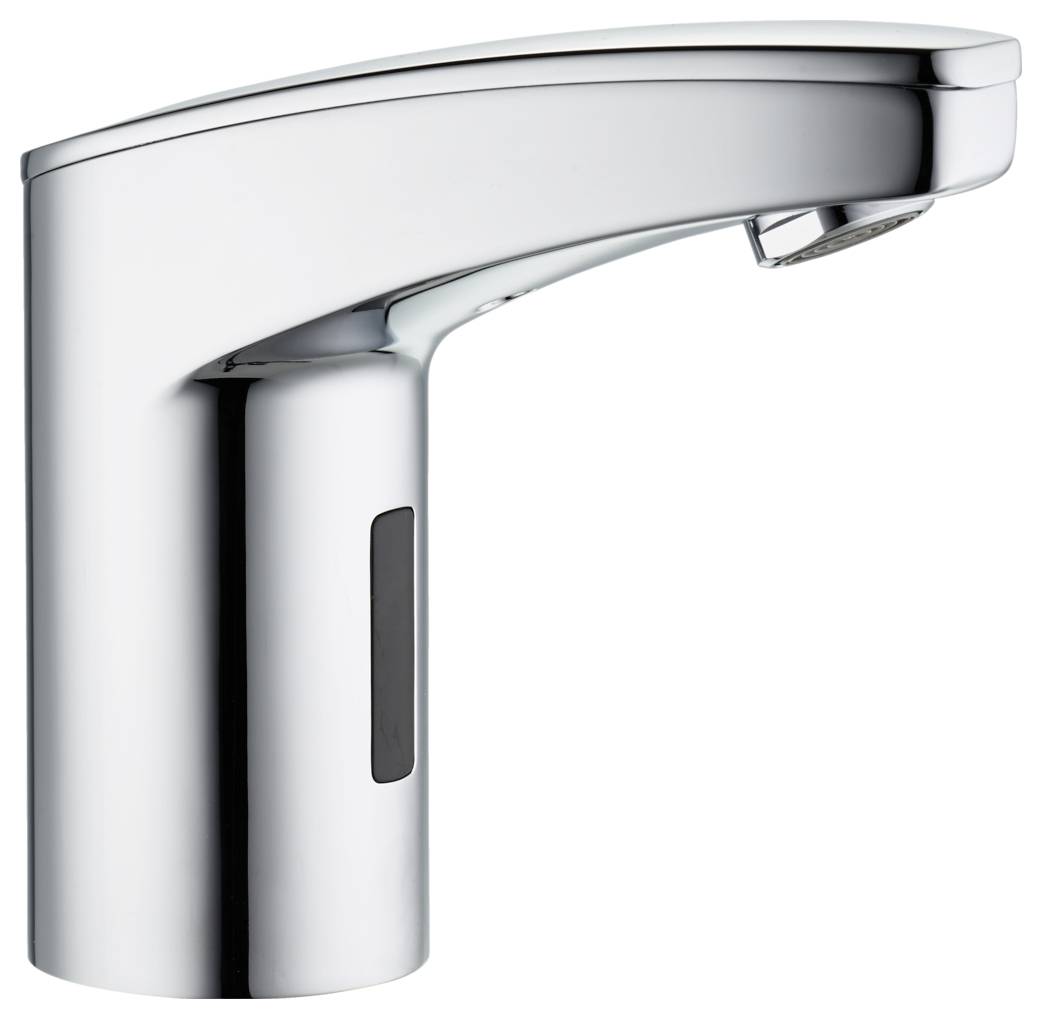

Sensor wash basin tap
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548354 Stiebel Eltron 238822
Description
Description
Non-contact, electronic sensor valve in pressure-free design. Comfort features
Modern design for all applications in trade, public facilities or in private households.
Maximum possible hygiene thanks to non-contact operation and the automatic hygiene circuit that can be activated.
Low water consumption thanks to the combination of infrared sensors (fully automatic setting), functional-safe magnetic valve (low pressure) and savings beam regulator.
The user can decide between freely selectable or preset temperature.
Short-circuit breaker for cleaning the sink and constantly-on for filling.
Water follow-up time and sensor sensitivity can be adjusted via touch operation. Installation
The sensor fitting is installed as easily as a conventional one-handed mixer. Flexible pressure hoses for the warm- and cold-water connection are included in the delivery. The modular monoblock does not require any base construction. Security
The fitting consists of a chrome-plated, robust metal housing. One hot water barrier can be adjusted, non-return valve and dirt filter are integrated.
This text is machine translated.
Non-contact, electronic sensor valve in pressure-free design. Comfort features
Modern design for all applications in trade, public facilities or in private households.
Maximum possible hygiene thanks to non-contact operation and the automatic hygiene circuit that can be activated.
Low water consumption thanks to the combination of infrared sensors (fully automatic setting), functional-safe magnetic valve (low pressure) and savings beam regulator.
The user can decide between freely selectable or preset temperature.
Short-circuit breaker for cleaning the sink and constantly-on for filling.
Water follow-up time and sensor sensitivity can be adjusted via touch operation. Installation
The sensor fitting is installed as easily as a conventional one-handed mixer. Flexible pressure hoses for the warm- and cold-water connection are included in the delivery. The modular monoblock does not require any base construction. Security
The fitting consists of a chrome-plated, robust metal housing. One hot water barrier can be adjusted, non-return valve and dirt filter are integrated.
