Buy Stiebel Eltron 238908 | Conrad Electronic

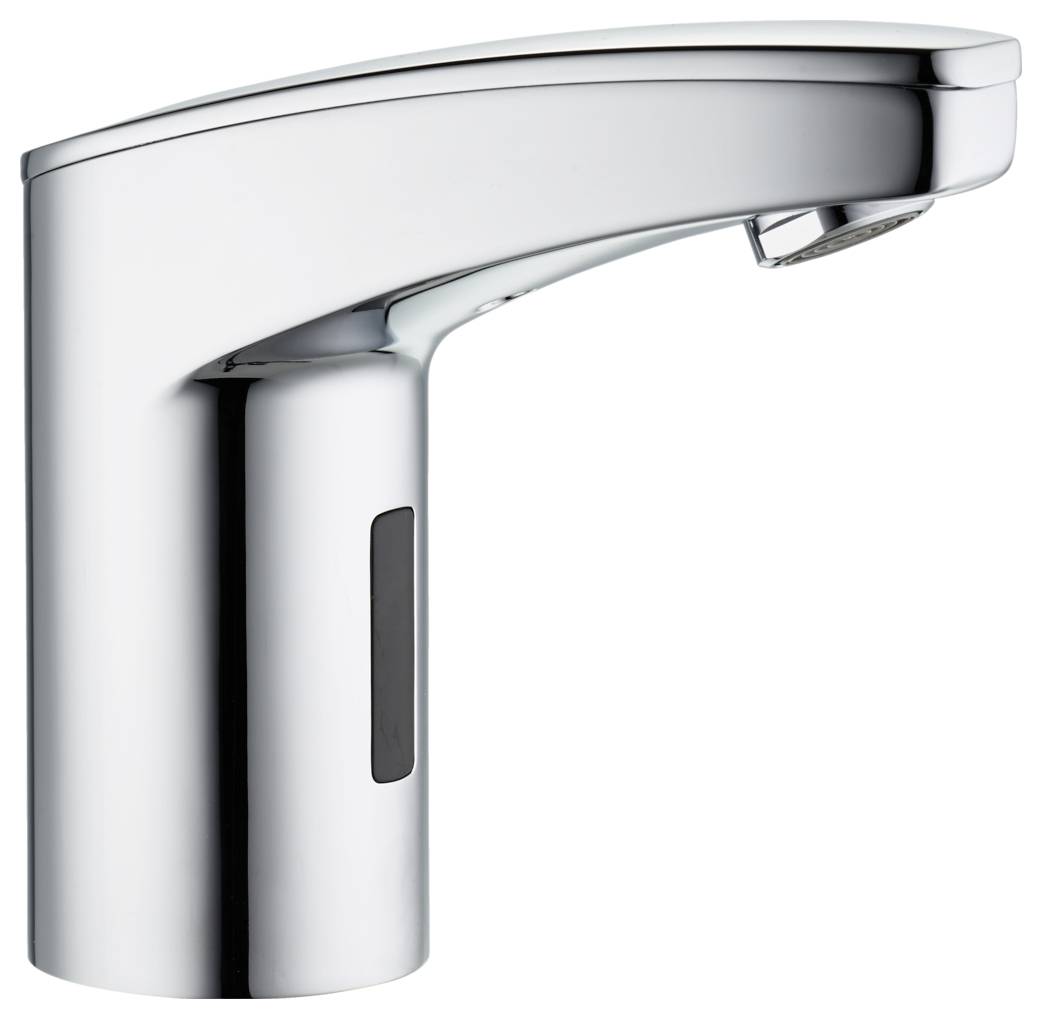

A chrome automatic sensor faucet for touchless activation in bathrooms or kitchens, designed for hygiene and water efficiency.

Image similar

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Design: Electronic
Protection class (IP) IP54
Surface protection: Chrome-plated
With transformer: Yes
Surface treatment: Polished
Type of power supply: Mains operation
Connection voltage 230 V
Mounting: Plate/dashboard hole
Max. Flow temperature 80°C.
Supply line connection: Hose (screw connection)
Temperature control version: Manual operation
Type of handle: No grip
Type of electronic operation: Sensor
Self-sealing: Yes
Material: Tap: Brass
Base color: Chrome
Accent color: Chrome
Number of fittings: 1 holes
Central distance 103 mm
Feeder terminal dimension: 3/8 inch (10)
Execution process: Fixed top
Outlet type: Tube
Mouthpiece tap: Jet regulator
Pull-out inlet with perlator: No.
Extendable inlet with hand shower: No.
With side shower: No.
With shut-off valve for connecting external devices: No.
Type of shut-off valve for external device: Electronic
With couplings: Yes
With Rosette/Cover plate: No.
With drain valve: No.
Type of drain fitting: Other
With chain eye: No.
With chain: No.
With waste stopper: No.
With temperature limit: Yes
Spray protection: No.
With pre-filter: No.
Cold-start function: No.
Return flow protection according to EN 1717: EB
With spring back resistance for max. Warm water temperature: No.
Max. PTO capacity (at 300 kPa): 5 l/min.
With bypass stop for flow limitation: No.
Volume flow class: Without
With spring back resistance for max. Flow rate: No.
Total height 131 mm
Installation height lower edge of tap outlet 103 mm
Lead edge - 143 mm
Noise class according to EN ISO 3822: Without
Low pressure version: No.
Removable under water pressure: No.
Reserve of runtime battery: Yes
Rinsing time adjustable: Yes
Rinsing time: 30..1200 s
Automatic purge cycle: Yes
Frequency of rinsing cycle: 12..48 h
Programming: Manual
With building control system connection: No.
Temperature limit can be retrofitted: No.

Product type: Sensor wash basin tap

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3552384 Stiebel Eltron 238908

Description

Application
Non-contact electronic sensor valve in pressure-proof design. Comfort features
Modern design for all areas of application in trade, public facilities or for the private use.
Maximum possible hygiene thanks to non-contact operation and the automatic hygiene circuit that can be activated.
Low water consumption thanks to the combination of infrared sensors (fully automatic setting), functional-safe magnetic valve (low pressure) and savings beam regulator.
The user can decide between freely selectable or preset temperature.
Short-circuit breaker for cleaning the sink, continuous-on for filling. Adjustable water follow-up time and sensor sensitivity via touch operation.
The fitting consists of a chrome-plated, robust metal housing. Installation
The sensor fitting is installed as easily as a conventional one-handed mixer. Flexible pressure hoses for the warm- and cold-water connection are included in the delivery. The modular monoblock does not require any base construction. Security
A hot water barrier can be adjusted, non-return valve and strainer are integrated.

This text is machine translated.
