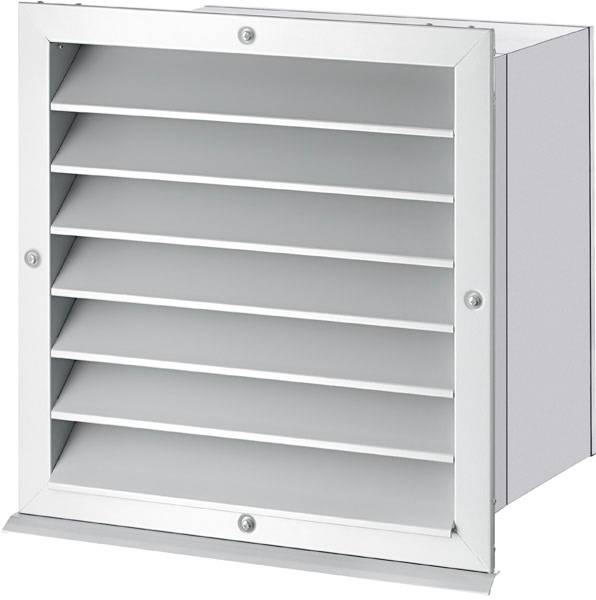

Stiebel Eltron AWG 315 GL Feedthrough Suitable for pipe diameter: 315 mm
EAN:
Part number:
Item no:
Highlights & Details
Wall BUSHING AWG 315 GL
- With gray painted weather protection grid
- External wall bushing horizontal with painted weather protection grid
- Insulated inside, with endplate and oval connection for DN 315.
Technical specifications
- Nominal diameter 315 mm
- Feed-through opening (min.) 450x450 mm
- Weight 12 kg
- Wall thickness 280 - 500 mm
- Pressure loss exhaust air at 1000 m3/h: 16 Pa.
- External air pressure loss at 1000 m3/h: 16 Pa.
- Max. Air volume 1300 m3/h
- Color RAL 9006
- Product type
Feedthrough
- Suitable for pipe Ø
315 mm
- Pipe Ø
315 mm
- Recess depth
627 mm
- Ventilation features
Adjustable
- Factory colour
Grey
- Dim
(L x W) 490 mm x 483 mm
- Content
1 pc(s)
- Width
483 mm
- Length
490 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907143 Stiebel Eltron AWG 315 GL Feedthrough Suitable for pipe diameter: 315 mm
Warranty Terms
Warranty Terms 1907143 Stiebel Eltron AWG 315 GL Feedthrough Suitable for pipe diameter: 315 mm
Description
External wall bushing horizontal with painted weather protection grid
Insulated inside, with endplate and oval connection for DN 315
The length of the wall penetration can be adjusted to the wall thickness by means of telescopic technology
The weather protection grid is made of aluminum sheet, painted RAL 9006 with drip edge.
This text is machine translated.
Insulated inside, with endplate and oval connection for DN 315
The length of the wall penetration can be adjusted to the wall thickness by means of telescopic technology
The weather protection grid is made of aluminum sheet, painted RAL 9006 with drip edge.
This text is machine translated.
Scope of delivery
- Wall bushing
- Weather protection grid
- Plug-in module
- Hose clamp with turnbuckle
- 4 sheet metal screws (4.2 x 32)
- 4 screws (M5 x 10)
- Thermal insulation tape
- Construction protection cover
- 2 drip-protection caps
- User manual.
