Buy Stiebel Eltron AWG 315 SR Feedthrough Suitable for pipe diameter: 315 mm

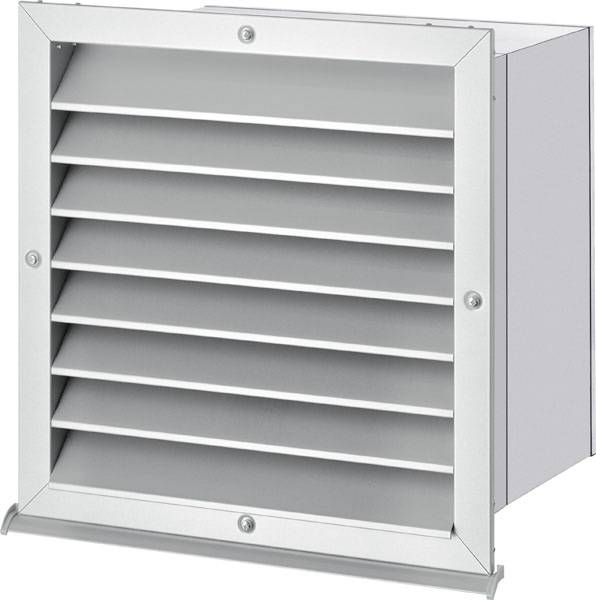

Ventilation grille with horizontal louvres for air intake or extraction. Rectangular design in metallic finish.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Wall bushing AWG 315 SR

With metallic silver-painted weather protection grid
External wall bushing horizontal with painted weather protection grid, insulated internally
With end cover and oval connection for DN 315.

Technical specifications

Nominal diameter 315 mm
Feed-through opening (min.) 450x450 mm
Weight 12 kg
Wall thickness 280 - 500 mm
Pressure loss exhaust air at 1000 m3/h: 16 Pa.
External air pressure loss at 1000 m3/h: 16 Pa.
Max. Air volume 1300 m3/h

Product type: Feedthrough

Suitable for pipe Ø: 315 mm

Pipe Ø: 315 mm

Recess depth: 627 mm

Ventilation features: Adjustable

Factory colour: Silver (metallic)

Dim: (L x W) 490 mm x 483 mm

Content: 1 pc(s)

Width: 483 mm

Length: 490 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1906747 Stiebel Eltron AWG 315 SR Feedthrough Suitable for pipe diameter: 315 mm

Warranty Terms

Warranty Terms 1906747 Stiebel Eltron AWG 315 SR Feedthrough Suitable for pipe diameter: 315 mm

Description

This product is used as a wall feedthrough in cellar shafts for connecting the outdoor air or exhaust air duct of heat pumps or ventilation devices. It can be used for wall openings with any wall structure.
External wall bushing horizontal with painted weather protection grid, insulated internally
With end cover and oval connection for DN 315.
The length of the wall penetration can be adjusted to the wall thickness by means of telescopic technology
The weather protection grid is made of aluminum sheet, painted silver metallic with drip edge.
