Stiebel Eltron AWG 600 L Feedthrough Suitable for pipe diameter: 592 mm
EAN:
Part number:
Item no:
Highlights & Details

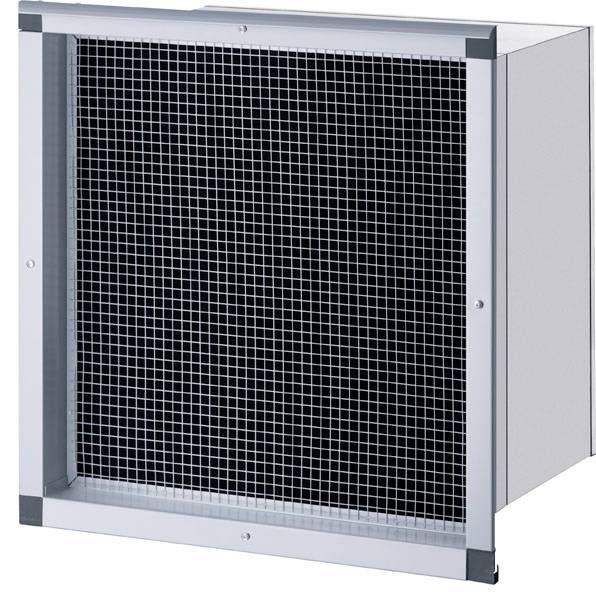

Wall bushing AWG 600 L
- Outer wall bushing internally insulated with end cover and connection DN 560
- The length of the wall penetration can be adjusted to the wall thickness by means of telescopic technology.
- Incl. Weather protection grid for installation in the light box.
Technical specifications
- Nominal diameter 315 mm
- Feed-through opening (min.) 600x600 mm
- Weight 19 kg.
- Wall thickness 260 - 400 mm
- Pressure loss exhaust air at 3000 m3/h: 4 Pa.
- External air pressure loss at 3000 m3/h: 4 Pa.
- Max. Air volume 3500 m3/h
- Product type
Feedthrough
- Suitable for pipe Ø
592 mm
- Ventilation features
Adjustable
With flyscreen
- Factory colour
Aluminium (anodised)
- Dim
(L x W) 647 mm x 649 mm
- Content
1 pc(s)
- Width
649 mm
- Length
647 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906665 Stiebel Eltron AWG 600 L Feedthrough Suitable for pipe diameter: 592 mm
Warranty Terms
Warranty Terms 1906665 Stiebel Eltron AWG 600 L Feedthrough Suitable for pipe diameter: 592 mm
Description
This product is used as a wall feedthrough in cellar shafts for connecting the outdoor air or exhaust air duct of heat pumps or ventilation devices. The product can be used for wall openings with any wall structure.
It has a fine mesh grid, which is designed to prevent the penetration of animals.
Outer wall bushing with small animal protection grid for installation in the light shaft, insulated inside. With end cover and connection DN 560. The length of the wall penetration can be adjusted to the wall thickness by means of telescopic technology. The grid made of steel sheet with drip edge, painted light gray.
This text is machine translated.
It has a fine mesh grid, which is designed to prevent the penetration of animals.
Outer wall bushing with small animal protection grid for installation in the light shaft, insulated inside. With end cover and connection DN 560. The length of the wall penetration can be adjusted to the wall thickness by means of telescopic technology. The grid made of steel sheet with drip edge, painted light gray.
This text is machine translated.
Scope of delivery
- Wall bushing
- Grid for protection against small animals
- Plug-in module
- Hose clamp with turnbuckle
- 4 sheet metal screws for connecting the plug-in unit and wall bushing
- 4 screws for fixing the weather protection grid to the slide-in unit
- Fitting lubricant
- Thermal insulation tape
- Protective cover (used in the wall bushing)
- User manual.
