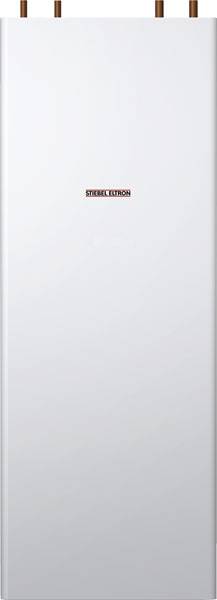

Stiebel Eltron HSBC 300 L cool Built-in tank EEC: B (A+ - F) 238826
EAN:
Part number:
Item no:
Highlights & Details
HSBC 300L Integrated Storage Cool
- For use in single-family homes for heating and cooling
- Low heat-retention losses through highly effective heat insulation
- Prepared for the optional extension with a stratied heating circuit
Technical specifications
- Water tank capacity 270 l
- Nominal capacity buffer storage: 100 l
- Surface area of heat exchanger: 3.3 m2
- Content of heat exchanger: 21 l
- External available pressure difference circulation pump heating circuit 1 at 1.0 m3/h: 725 hPa
- External available pressure difference circulation pump heating circuit 1 at 1.5 m3/h: 663 hPa
- External available pressure difference circulation pump heating circuit 1 at 2.0 m3/h: 444 hPa
- External available pressure difference circulation pump heating circuit 2(optional) at 1.0 m3/h: 665 hPa
- External available pressure difference circulation pump heating circuit 2 (optional) at 1.5 m3/h: 518 hPa
- External available pressure difference circulation pump heating circuit 2 (optional) at 2.0 m3/h: 189 hPa
- Max. Permissible pressure of water tank: 1.0 MPa
- Test pressure water tank: 1.5 MPa
- Min flow rate: 25 l/min
- Max. Permissible pressure buffer memory: 0.3 MPa
- Test pressure buffer tank: 0.45 MPa
- Max. Permissible temperature: 85 degrees C.
- Max. Permissible temperature on primary side: 75 degrees C.
- Water hardness: =3 GraddH
- PH (with aluminum compounds): 8.0-8.5
- PH value (without aluminum compounds): 8.0-10.0
- Conductivity (softening) <: 1000 micros/cm
- Conductivity (desalting): 20-100 micros/cm
- Chloride <30 mg/l
- Oxygen 8-12 weeks after filling (softening): <0.02 mg/l.
- Oxygen 8-12 weeks after filling (desalination): <0.1 mg/l.
- Power consumption circulation pump heating side max.: 72 W.
- Ready energy consumption/ 24 h at 65 degrees C: 1.5 kWh
- Energy efficiency rating: B
- Frequency: 50 Hz
- Protection class (IP): IP20
- Tilt height 2123 mm
- Weight filled: 639 kg
- Weight empty: 248 kg
- Product type
Built-in tank
- Dim
(L x W x H) 910 x 680 x 1918 mm
B (A+ - F)
- Pressure (max.)
0.3 MPa
- Nominal volume
270 l
- Width
680 mm
- Height
1918 mm
- Length
910 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1930587 Stiebel Eltron HSBC 300 L cool Built-in tank EEC: B (A+ - F) 238826
Warranty Terms
Warranty Terms 1930587 Stiebel Eltron HSBC 300 L cool Built-in tank EEC: B (A+ - F) 238826
Description
Integral storage tank for heat pump operation for drinking water heating and simultaneous integration in heating systems for hydraulic connection and for conveying and decoupling the volume flows of heat pump and heating circuit. For use in single-family homes for heating and cooling. Water tank, direct foam enameled steel container, equipped with internal heat exchanger and magnesium anode for additional corrosion protection and buffer storage, direct foam steel container, can be separated from each other. Grip shells are used to support insertion in the modules. Hydraulic connections on heating side upwards, on drinking water side toward the rear. Equipped with heating circuit pump and 3-2 way changeover valve. Supplied connection adapters for the flow and return fusion or separation depending on the type of heat pump. Hydraulic functional components are thermally insulated in front of the storage foam, behind the front panel. Prepared for the optional expansion with a mixed heating circuit. Storage casing consisting of plastic sheath in pure white fixed on the side and rear and removable front front panel in white. Low heat-retention losses through highly effective heat insulation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Integral storage HSBS 300 L cool
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
