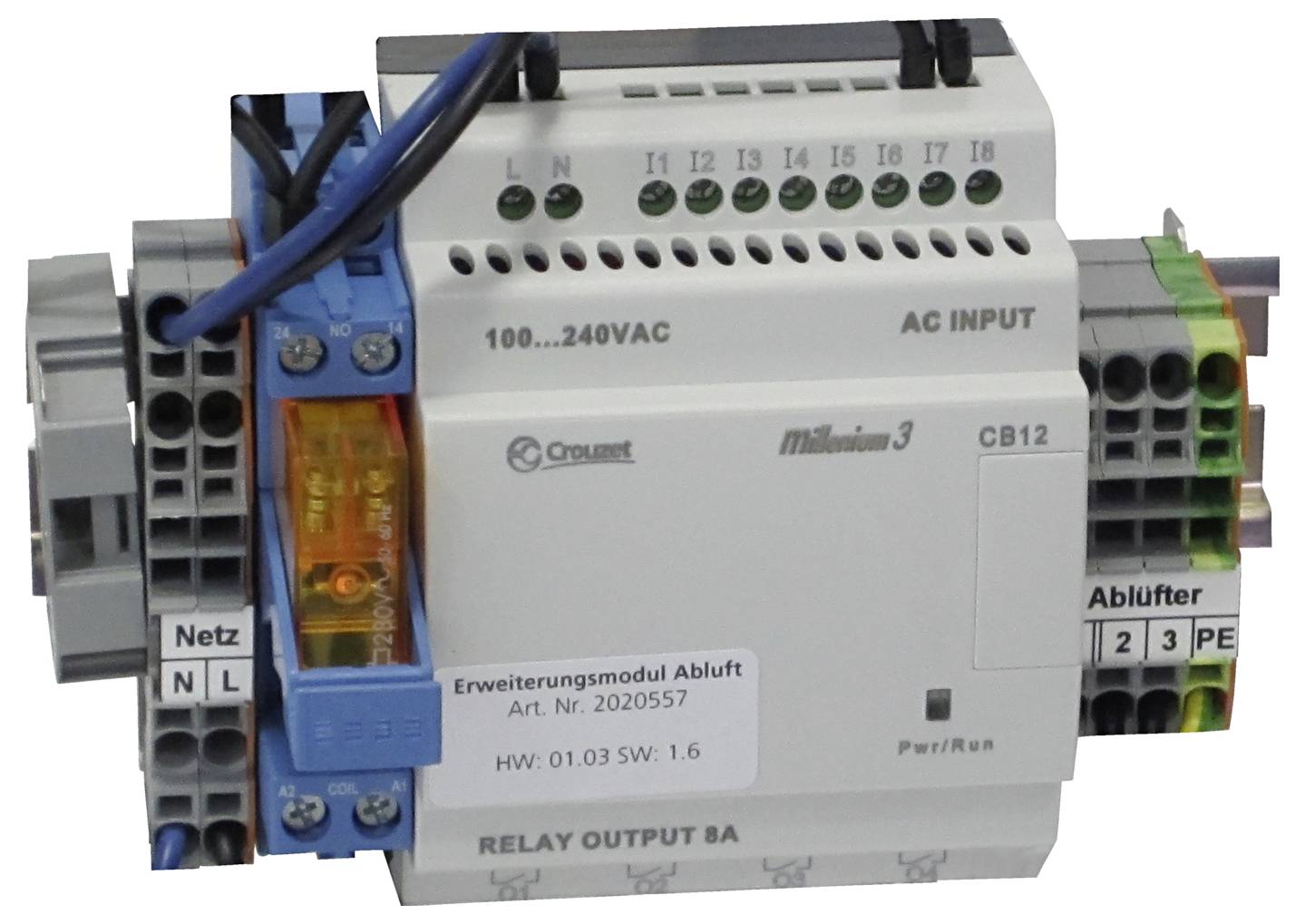

Stiebel Eltron LTM TL 1230 EWM ABL Controller
EAN:
Part number:
Item no:
Technical specifications
- Height: 90 mm
- Width 140 mm
- Depth: 70 mm
- Wireless: No.
- With display: No.
- Signal transmission: Other
- Pre-programmed: Yes
- Capable of learning: No.
- Max. Number of controllable units: 7
- Unidirectional: No.
- Bidirectional: No.
- Product type
Controller
n.rel.
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551850 Stiebel Eltron LTM TL 1230 EWM ABL Controller
Description
Description
The bathroom control is used for the intelligent control of a pendulum fan in exhaust rooms in combination with the LA 11.
The control offers different program options for automatic activation of the pendulum fan in the exhaust rooms for the time-limited exhaust air operation.
In the exhaust mode, the pendulum fan used in the bathroom is disconnected from the LA 11 and operated as an exhaust fan.
Different programs for bath control are available. The programs are started either through the light switch or a humidity sensor.
The control inputs can be used in parallel. The pendulum fan remains in the venting mode until all the requirements on the part of the controller have been processed.
This text is machine translated.
The bathroom control is used for the intelligent control of a pendulum fan in exhaust rooms in combination with the LA 11.
The control offers different program options for automatic activation of the pendulum fan in the exhaust rooms for the time-limited exhaust air operation.
In the exhaust mode, the pendulum fan used in the bathroom is disconnected from the LA 11 and operated as an exhaust fan.
Different programs for bath control are available. The programs are started either through the light switch or a humidity sensor.
The control inputs can be used in parallel. The pendulum fan remains in the venting mode until all the requirements on the part of the controller have been processed.
