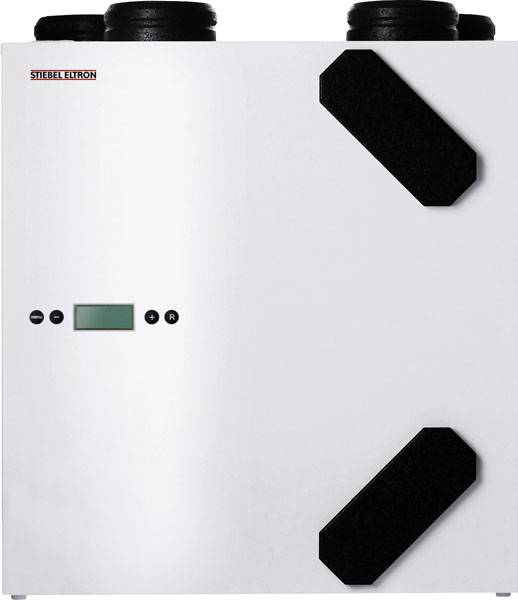

Stiebel Eltron LWZ 70 E 230 V 180 m³/h
EAN:
Part number:
Item no:
Highlights & Details
STIE central ventilation device LWZ 70 E.
- Optimal solution for small apartments
- Easy maintenance
- Simple logical operation
Technical specifications
- Product type
Heat recovery fan
136 W
- Air flow rate
180 m³/h
- Noise emission (max.)
46 dB
- Dim
(W x H x D) 560 x 600 x 290 mm
A (A+ - G)
- Width
560 mm
- Height
600 mm
- Factory colour
White
- Depth
290 mm
- Material
Steel
- Ventilation features
Adjustable
- Nominal voltage
230 V
- Weight
25 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1930414 Stiebel Eltron LWZ 70 E 230 V 180 m³/h
Warranty Terms
Warranty Terms 1930414 Stiebel Eltron LWZ 70 E 230 V 180 m³/h
Description
Central ventilation unit for ventilation and ventilation of apartments. With heat recovery from the exhaust air via a cross-countercurrent heat exchanger, easily replaceable filters for filtering the incoming and outgoing air. Air quantity can be set in three stages via a remote control (necessary accessories). Balanced air flow through economical constant-volume fans with integrated control. Can be installed in the kitchen top cabinet. Casing made of galvanized sheet steel, painted white, to, from, Fort and outer air connections on top of the device.
This text is machine translated.
This text is machine translated.
Scope of delivery
- LWZ 70 E central ventilation unit
