Stiebel Eltron SBP 1500 E Buffer tank 227565
EAN:
Part number:
Item no:
Highlights & Details
Buffer storage SBP 1500 E.
- Buffer storage for heating integration at high heat pump capacity
- 1500 liter memory
- Problem solver for complex heating systems
Technical specifications
- Nominal content: 1503 l.
- Maximum allowable pressure 0.3 MPa
- Test pressure 0.45 MPa
- Max. Charging/discharging volume current: 15 m3/h.
- Max. Permissible temperature: 95 degrees C.
- Height: 2220 mm
- Height with thermal insulation: 2255 mm
- Diameter 1000 mm
- Diameter with thermal insulation: 1220 mm
- Tilt height 2250 mm
- Weight filled: 1703 kg
- Weight empty: 229 kg
- Product type
Buffer tank
- Dim
(L x W x H) 1220 x 1220 x 2255 mm
Doesn't apply
- Pressure (max.)
0.3 MPa
- Nominal volume
1503 l
- Width
1220 mm
- Height
2255 mm
- Length
1220 mm
- UKCA
yes
Documents & Downloads
Warranty Terms
Warranty Terms 1930434 Stiebel Eltron SBP 1500 E Buffer tank 227565
Description

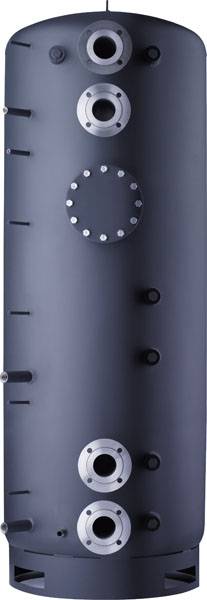

Storage tank Storage tank for hydraulic decoupling of the volume flows of heat pumps and heating circuit. It serves as a system buffer for extending the heat pump runtime and for partially bridging tariff switch-off times. Optional addition by fitting the flange opening and 6 screw-in sockets. The WDH SBP thermal insulation as an accessory ensures minimal heat losses.
This text is machine translated.
This text is machine translated.
Features
- For use in multi-family homes and businesses
- Can be combined with a solar system (SOL version)
- Highly effective insulation for low heat losses (optional)
Scope of delivery
- Buffer storage SBP 1500 E.
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
