Stiebel Eltron SBP 1500 E cool Buffer tank 227589
EAN:
Part number:
Item no:
Highlights & Details

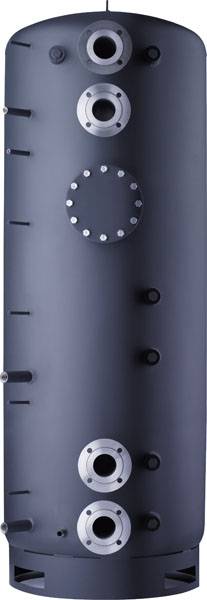

Buffer storage SBP 1500 E cool
- Buffer storage for heating integration at high heat pump capacity
- 1500 liter memory
- Use for heating and cooling operation
Technical specifications
- Heat pump connection flange DN 80
- Connection flange heating DN 80
- Nominal content: 1503 l.
- Maximum allowable pressure 0.3 MPa
- Test pressure 0.45 MPa
- Max. Charging/discharging volume current: 15 m3/h.
- Max. Permissible temperature: 95 degrees C.
- Height: 2220 mm
- Height with thermal insulation: 2255 mm
- Diameter 1032 mm
- Diameter with thermal insulation: 1220 mm
- Tilt height 2250 mm
- Weight filled: 1742 kg
- Empty weight: 239 kg
- Product type
Buffer tank
- Dim
(L x W x H) 1032 x 1032 x 2255 mm
Doesn't apply
- Pressure (max.)
0.3 MPa
- Nominal volume
1503 l
- Width
1032 mm
- Height
2255 mm
- Length
1032 mm
- UKCA
yes
Documents & Downloads
Warranty Terms
Warranty Terms 1930489 Stiebel Eltron SBP 1500 E cool Buffer tank 227589
Description
Storage tank for hydraulic decoupling of the volume flows of heat pumps and heating circuit/cooling circuit. It serves as a system buffer for extending the heat pump runtime and for partially bridging tariff switch-off times. Optional addition by fitting the flange opening and 6 screw-in sockets. The storage tank is pre-insulated for the "cooling function" request. The heat insulation WDH 1500 cool as an accessory provides for lowest heat losses.
This text is machine translated.
This text is machine translated.
Features
- Problem solver for complex heating systems
- Can also be combined with other heat generators
- Suitable for cooling, highly effective insulation for low heat losses
Scope of delivery
- Buffer storage SBP 1500 E cool
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
