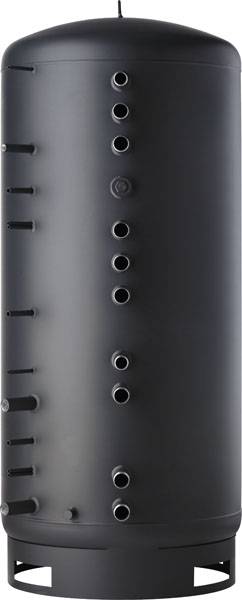

Stiebel Eltron SBS 1001 W SOL Instantaneous water cylinders 229986
EAN:
Part number:
Item no:
Highlights & Details
THROUGHPUT STORAGE SBS 1001 W SOL
- Heating buffer with integrated water supply during flow operation
- 1000 liter storage tank
- Water supply in stainless steel corrugated tube heat exchanger
Technical specifications
- CHW inlet G 1 1/4 A
- Warm water outlet G 1 1/4 A
- Connection of heat pump G 1 1/2 A
- Heater forward/return connection G 1 1/2 A
- Solar flow G 1
- Solar return G 1
- Nominal content: 916 l.
- Content of heat exchanger bottom: 19.8 l
- Contents Heat exchanger Water: 45.4 l
- Area of heat exchanger bottom: 3.2 m2
- Area Heat exchanger Water: 8.7 m2
- Pressure loss at 1.0 m3/h.
- Heat exchanger bottom: 35 hPa
- Pressure loss at 10/25/40 l/min: 76V/ 478 / 1227 hPa
- Max. Charge/discharge volume current zoned: 2.4m3/h.
- Max. Charging/discharging volume current unzonated: 5.0 m3/h.
- Maximum allowable pressure 0.3 MPa
- Test pressure 0.45 MPa
- Max. Permissible pressure water: 1.0 MPa
- Max. Permissible temperature: 95 degrees C.
- Max. Recommended collector aperture: 20 m2
- Height: 2240 mm
- Height with thermal insulation: 2350 mm
- Diameter 790 mm
- Diameter with thermal insulation: 1010 mm
- Tilt height 2285 mm
- Weight filled: 1221 kg
- Weight empty: 220 kg
- Product type
Instantaneous water cylinders
- Dim
(L x W x H) 1010 x 1010 x 2350 mm
Doesn't apply
- Pressure (max.)
0.3 MPa
- Nominal volume
916 l
- Width
1010 mm
- Height
2350 mm
- Length
1010 mm
- UKCA
not relevant
Documents & Downloads
Warranty Terms
Warranty Terms 1930573 Stiebel Eltron SBS 1001 W SOL Instantaneous water cylinders 229986
Description
Storage tanks for hot water generation and for hydraulic decoupling of the volume flows of heat pump and heating circuit. It serves as a system buffer for extending the heat pump runtime and for partially bridging tariff switch-off times. The hot water is provided by a stainless steel corrugated pipe heat exchanger in the flow mode. Optional addition by equipping the connection supports for another heat generator and screw-in heating element (BGC). The thermal insulation WDH... SBS as an accessory provides for the lowest heat losses.
This text is machine translated.
This text is machine translated.
Features
- Can be combined with a solar thermal system
- Hygienic hot water supply through flow operation
- Highly effective heat insulation (WDH) minimizes heat losses (accessories)
Scope of delivery
- THROUGHPUT STORAGE SBS 1001 W SOL
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
